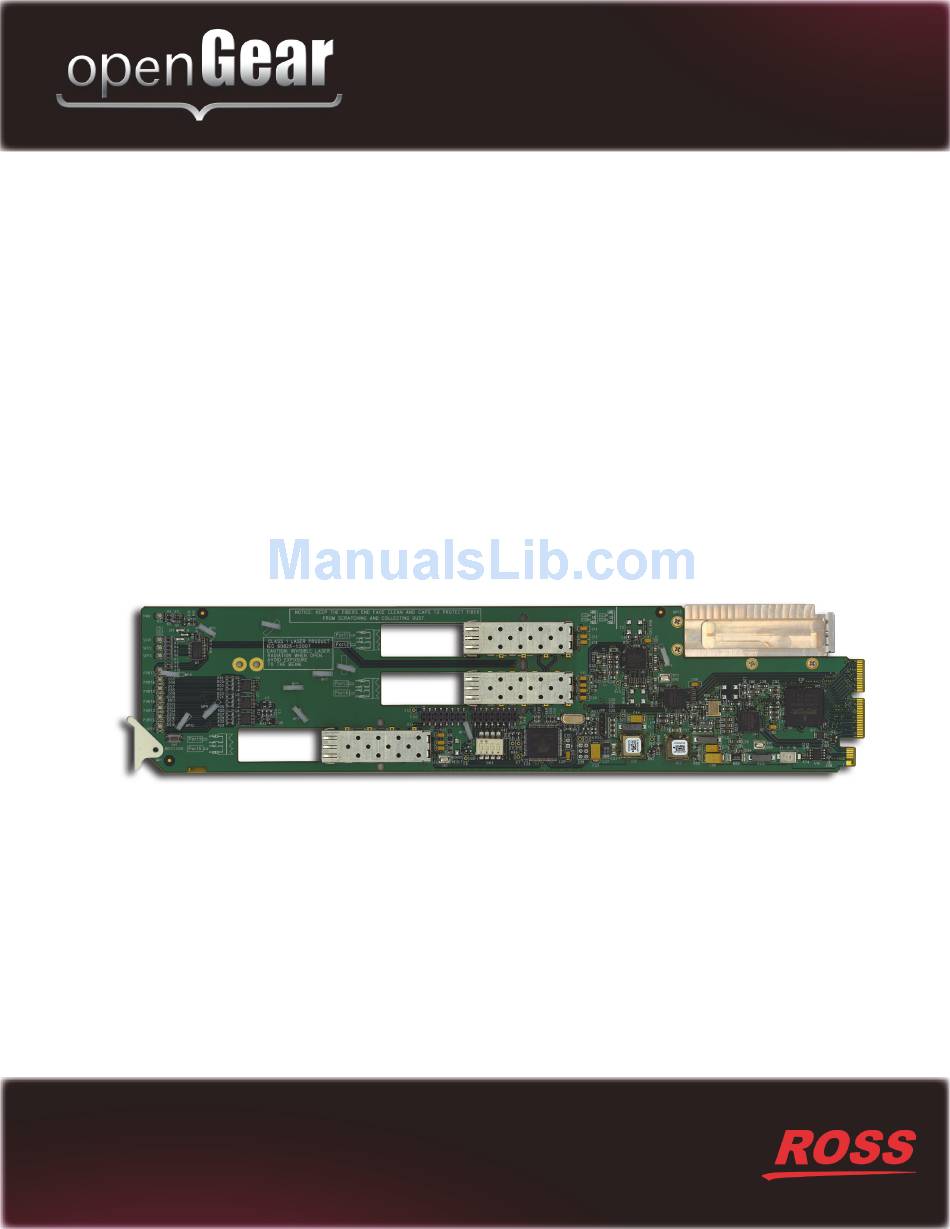

  • Page 1 CES-8940 Five Port Ethernet Switch User Manual...
  • Page 2 Thank you for choosing Ross You've made a great choice. We expect you will be very happy with your purchase of Ross Technology. Our mission is to: 1. Provide a Superior Customer Experience • offer the best product quality and support 2.
  • Page 3 Release Date: August 12, 2014. Copyright © 2014 Ross Video Limited. Ross®, openGear®, and any related marks are trademarks or registered trademarks of Ross Video Ltd. All other trademarks are the property of their respective companies. PATENTS ISSUED and PENDING. All rights reserved. No part of this publication...
  • Page 4: Important Safety Instructions

    Important Regulatory and Safety Notices to Service Personnel Before using this product and nay associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
  • Page 5: United States Of America

    Support using the numbers listed under the “Contact Us” section on the last page of this manual. All openGear products are covered by a generous 5-year warranty and will be repaired without charge for materials or labor within this period. See the “Warranty and Repair Policy” section in...
  • Page 6: Environmental Information

    Environmental Information The equipment that you purchased required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment. To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems.
  • Page 7 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario, K0E 1K0 Ogdensburg, New York Canada USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
  • Page 9: Table Of Contents

    Static Discharge..................... 2-2 Unpacking......................2-2 Installing the CES-8940....................... 2-3 Supported Rear Modules ..................2-3 Installing a Rear Module ..................2-3 Cabling for the CES-8940....................2-5 Cabling Overview....................2-5 Ethernet Communications Overview................... 2-6 Ethernet Cabling Overview ................... 2-6 Internal GigE Link....................2-6 Software Upgrades.......................
  • Page 10 Setup Tab ..........................4-5 Alarm Enable Tab ........................ 4-6 Specifications Technical Specifications ...................... 5-2 Service Information Troubleshooting Checklist ....................6-2 Bootload Button..................... 6-2 Warranty and Repair Policy ....................6-3 ii • Contents CES-8940 User Manual (Iss. 02)
  • Page 11: Introduction

    Congratulations on choosing an openGear CES-8940 Five Port Ethernet Switch. The CES-8940 is part of a full line of products within the openGear Terminal Equipment family of products, backed by Ross Video's experience in engineering and design expertise since 1974.
  • Page 12: Overview

    Overview The CES-8940 includes up to four RJ45 ports plus one GigE (SERDES) port connected to the OG3-FR series frame midplane that communicates with the switch on the Network Controller Card. These ports can be configured as a generic switch (any port to any port). They can also be set up for 1:1 trunking between any ports or redundant/load sharing trunking such as four wired links with auto fail-over.
  • Page 13: Functional Block Diagram

    Functional Block Diagram This section provides a functional block diagram that outlines the workflow of the CES-8940. Internal Link (GigE Connection to OG3-FR-CN(S)* Midplane) 10/100/1000 ETHERNET SWITCH CARD CONTROL ETHERNET PORT 4 MONITORING ETHERNET PORT 3 ETHERNET PORT 2 ETHERNET PORT 1 *Internal GigE connection requires the MFC-8322-N(S) network controller card for the OG3-FR frame.
  • Page 14: User Interfaces

    DashBoard for the CES-8940, refer to the chapter “DashBoard Menus” on page 4-1. Card-edge Controls The front-edge of the CES-8940 includes an LED indicator for power status. LEDs on the rear module indicates communication and traffic activity. For More Information on...
  • Page 15: Documentation Terms And Conventions

    “OG3-FR series” refers to all versions of the OG3-FR frames and any available options unless otherwise noted. • “openGear frame” refers to the DFR-8321 series and the OG3-FR series frames that house openGear cards. • “Operator” and “User” refer to the person who uses the CES-8940.
  • Page 16 1–6 • Introduction CES-8940 User Manual (Iss. 02)
  • Page 17: Installation

    Installation In This Chapter This chapter provides instructions for installing the Rear Module(s) for the CES-8940, installing the card into the frame, cabling details, and updating the software. The following topics are discussed: • Before You Begin • Installing the CES-8940 •...
  • Page 18: Before You Begin

    Unpacking Unpack each CES-8940 you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly.
  • Page 19: Installing The Ces-8940

    Installing the CES-8940 This section outlines how to install the rear module and the CES-8940 in an openGear frame. You must install the CES-8940 in an OG3-FR series frame to take advantage of the GigE interface. Supported Rear Modules Notice —...
  • Page 20 1. Locate the Rear Module you installed in the procedure “Installing a Rear Module”. 2. Ensure that the Rear Module is one of the required rear modules for the CES-8940. 3. Hold the card by the edges and carefully align the card-edges with the slots in the frame.
  • Page 21: Cabling For The Ces-8940

    Connect the input and output cables according to the following sections. Cabling Overview In the openGear frames, the CES-8940 is used with the 8320AR-056 Full Rear Module. Each rear module occupies two slots and accommodates one card. This rear module provides four RJ45 Ethernet 10/100/1000 ports.
  • Page 22: Ethernet Communications Overview

    Figure 2.3 Cabling to Ethernet Port 1 on the 8320AR-056 Rear Module Internal GigE Link Port 7 out of the CES-8940 provides a GigE SERDES interface to the OG3-FR midplane to provide a link to the Ethernet switch on the Network Controller Card. This interface is identified as Internal Link in the DashBoard menus.
  • Page 23: Software Upgrades

    To upgrade the software on your card 1. Contact Ross Technical Support for the latest software version file. 2. In DashBoard, display the Device tab of the CES-8940 by double-clicking its status indicator in the Basic Tree View. 3. From the Device tab, click Upload to display the Select File for upload dialog box.
  • Page 24 2–8 • Installation CES-8940 User Manual (Iss. 02)
  • Page 25: Configuration

    This chapter provides a general overview of the user controls and configuration options available for your CES-8940. The following topics are discussed: • Card Overview • Control and Monitoring Features • Configuring a VLAN • Enabling Trunking • Enabling Alarms CES-8940 User Manual (Iss. 02) Configuration • 3–1...
  • Page 26: Card Overview

    Card Overview This section provides a general overview of the CES-8940 components. For information on the LEDs available on the card-edge, refer to the section “Control and Monitoring Features” on page 3-3. Figure 3.1 CES-8940 — Components 1. Bootload Button (SW3) SW3 is used for factory service in the unlikely event of a complete card failure.
  • Page 27: Control And Monitoring Features

    This section provides information on the power status LED located on the card-edge and the LEDs on all rear modules for the CES-8940. Card-edge LEDs The front-edge of the CES-8940 has LED indicators for alarms, and communication activity. Refer to Figure 3.2 for the location of the LEDs. PWR LED...
  • Page 28: Rear Module Leds

    Ethernet Port 3 Link/Activity LED Ethernet Port 3 Speed LED Ethernet Port 2 Link/Activity LED Ethernet Port 2 Speed LED Ethernet Port 1 Link/Activity LED Ethernet Port 1 Speed LED Figure 3.3 8320AR-056 Rear Module LEDs 3–4 • Configuration CES-8940 User Manual (Iss. 02)
  • Page 29 When lit orange, this LED indicates the on the specified RJ45 ETHERNET Orange port speed is at 100Mbps. PORT # SPEED When unlit, this LED indicates the on the specified RJ45 port speed is at 10Mbps. CES-8940 User Manual (Iss. 02) Configuration • 3–5...
  • Page 30: Configuring A Vlan

    Figure 3.5 Multiple Cards with Separate End Points Configuring the VLAN Feature The CES-8940 supports port-based VLANs. The switching ports are partitioned into virtual private domains assigned on a per port basis. This provides a simple partitioning of the switch so that different user groups can share the switch yet be isolated from each other.
  • Page 31: Setup Tab

    RJ45 #2 RJ45#4 INTERNAL LINK CES-8940 Figure 3.6 Example of Multiple VLAN Setup using a Single CES-8940 To enable a VLAN setup 1. From the Device View, select the Setup tab. Configuring a VLAN Group 2. In the Port Enables area, select the required check boxes to activate the specified RJ45 and Internal ports on your card.
  • Page 32: Enabling Trunking

    CES-8940 cards (Figure 3.9), there is potential to create multiple paths between devices, causing loops that can bring down a network. If one or more CES-8940 cards are going to connect to the same network, ensure that the internal GigE ports to those cards are turned off by the Network Controller Card.
  • Page 33: Configuring A Trunking Group

    Configuring a Trunking Group The ports on each CES-8940 can be set up for 1:1 trunking between any ports or for redundant/load sharing trunking. Each card supports two trunk groups between two devices with each trunk group having up to four ports.
  • Page 34 • Select the applicable Trunk # check box for each port you wish to include in that Trunk Group. The box displays a check-mark. 5. For each Trunk Group, repeat step 4. 3–10 • Configuration CES-8940 User Manual (Iss. 02)
  • Page 35: Enabling Alarms

    Enabling Alarms You can configure the CES-8940 to report when one or more of the following error conditions occur: • A link fails on the card switch • An incompatible rear module is installed with the card Error conditions are reported in the applicable fields of the Status tabs for each card in DashBoard.
  • Page 36 3–12 • Configuration CES-8940 User Manual (Iss. 02)
  • Page 37: Dashboard Menus

    DashBoard Menus In This Chapter This chapter briefly summarizes the menus, items, and parameters available from DashBoard for the CES-8940. Note that default values are indicated with an asterisk (*). Note — The CES-8940 does not support DataSafe. The following topics are discussed: •...
  • Page 38: Status Tabs

    Indicates the duplex and speed of the GigE connection to the OG3-FR # Gbps midplane Internal Rate The GigE link to the OG3-FR midplane has failed The GigE link to the OG3-FR midplane is No Link invalid 4–2 • DashBoard Menus CES-8940 User Manual (Iss. 02)
  • Page 39: Hardware Tab

    Installing the card with the 8320AR-057 does not provide access to Ethernet Port 4. You must still configure these ports in the Setup tab of DashBoard, even though they are not accessible. CES-8940 User Manual (Iss. 02) DashBoard Menus • 4–3...
  • Page 40: Port Stats Tab

    TX Collisions experienced by the specified port during packet transmissions Specifies how often the status fields in the Port Stats tabs are updated Refresh Rate Refresh Rate Disabled* Disables this feature 4–4 • DashBoard Menus CES-8940 User Manual (Iss. 02)
  • Page 41: Setup Tab

    Resets all configurable settings on the Factory Default Reset card to the factory default values Note that a minimum of two ports must be assigned to a VLAN in order to establish communications. CES-8940 User Manual (Iss. 02) DashBoard Menus • 4–5...
  • Page 42: Alarm Enable Tab

    Cleared Disables this alarm The HW Status field in the Hardware tab Selected* reports when an unsupported rear module Incompatible Rear is installed with the card Module Cleared Disables this alarm 4–6 • DashBoard Menus CES-8940 User Manual (Iss. 02)
  • Page 43: Specifications

    Specifications In This Chapter This chapter includes the technical specifications for the CES-8940. Note that specifications are subject to change without notice. The following topics are discussed: • Technical Specifications CES-8940 User Manual (Iss. 02) Specifications • 5–1...
  • Page 44: Technical Specifications

    Technical Specifications This section provides the technical specifications for the CES-8940. Table 5.1 CES-8940 Technical Specifications Category Parameter Specification Number of Ports Ethernet Cable Type Standard straight-through CAT-5e 10/100/1000 Connector Type RJ45 Operating Range 0°C to 40°C Environment Power Consumption Power 5–2 •...
  • Page 45: Service Information

    Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy CES-8940 User Manual (Iss. 02) Service Information • 6–1...
  • Page 46: Troubleshooting Checklist

    Troubleshooting Checklist Routine maintenance to this openGear product is not required. In the event of problems with your CES-8940, the following basic troubleshooting checklist may help identify the source of the problem. If the frame still does not appear to be working properly after checking all possible causes, please contact your openGear products distributor, or the Technical Support department at the numbers listed under the “Contact Us”...
  • Page 47: Warranty And Repair Policy

    FIVE (5) years from the date of shipment from our factory. In the event that your CES-8940 proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
  • Page 48 Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
