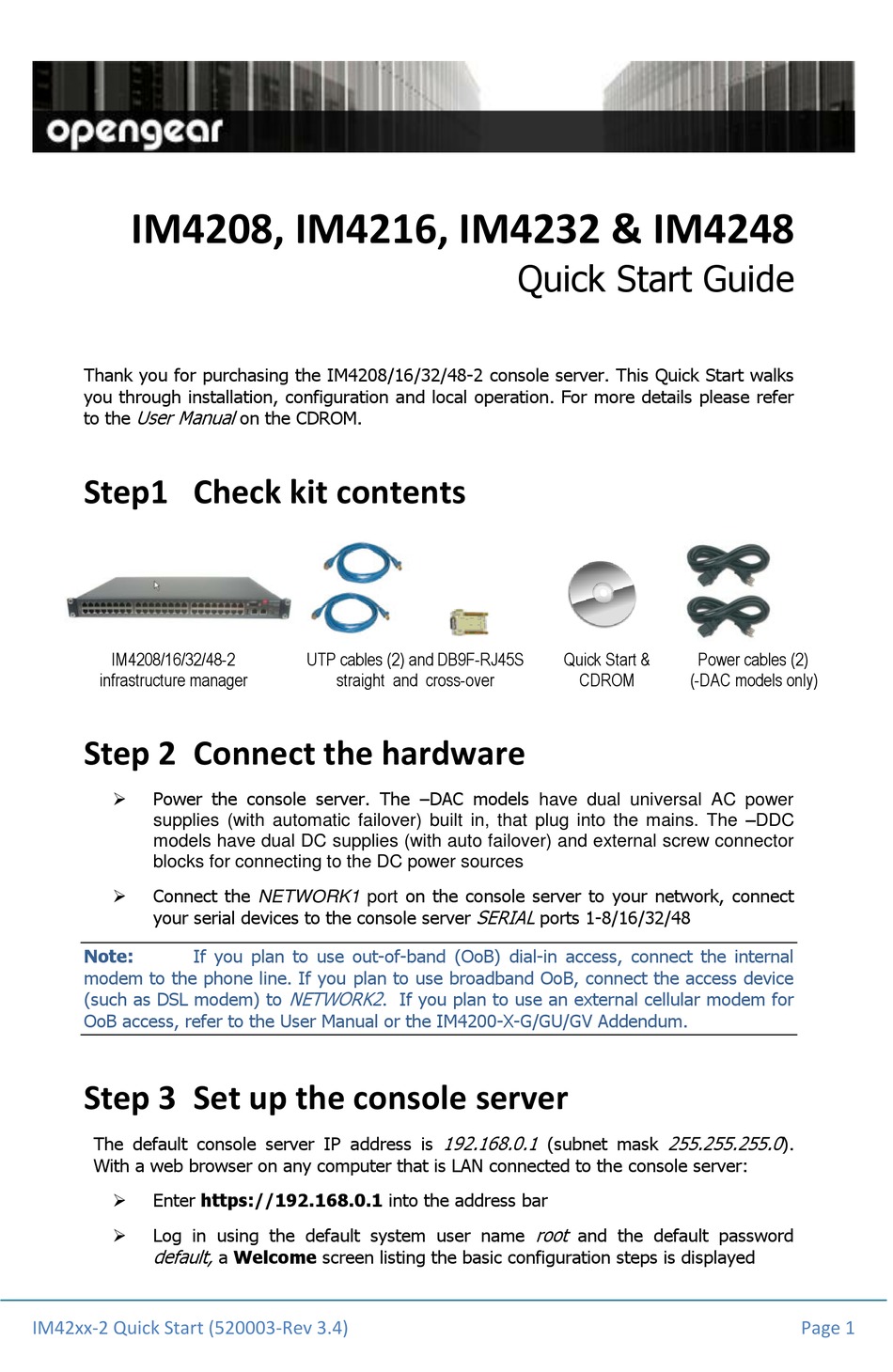

Opengear IM4208 Quick Start Manual

IM4208, IM4216, IM4232 & IM4248
Thank you for purchasing the IM4208/16/32/48-2 console server. This Quick Start walks
you through installation, configuration and local operation. For more details please refer
User Manual
to the
Step1 Check kit contents
IM4208/16/32/48-2
infrastructure manager
Step 2 Connect the hardware
Power the console server. The –DAC models have dual universal AC power

supplies (with automatic failover) built in, that plug into the mains. The –DDC
models have dual DC supplies (with auto failover) and external screw connector
blocks for connecting to the DC power sources
Connect the NETWORK1 port on the console server to your network, connect

your serial devices to the console server
Note: If you plan to use out-of-band (OoB) dial-in access, connect the internal
modem to the phone line. If you plan to use broadband OoB, connect the access device
(such as DSL modem) to
OoB access, refer to the User Manual or the IM4200-X-G/GU/GV Addendum.
Step 3 Set up the console server
The default console server IP address is
With a web browser on any computer that is LAN connected to the console server:
Enter https://192.168.0.1 into the address bar

Log in using the default system user name

default,
IM42xx-2 Quick Start (520003-Rev 3.4)
on the CDROM.
UTP cables (2) and DB9F-RJ45S
straight and cross-over
NETWORK2
. If you plan to use an external cellular modem for
a Welcome screen listing the basic configuration steps is displayed

Quick Start Guide

Quick Start &
CDROM
SERIAL
ports 1-8/16/32/48
192.168.0.1
(subnet mask
root
and the default password
Power cables (2)
(-DAC models only)
255.255.255.0
).
