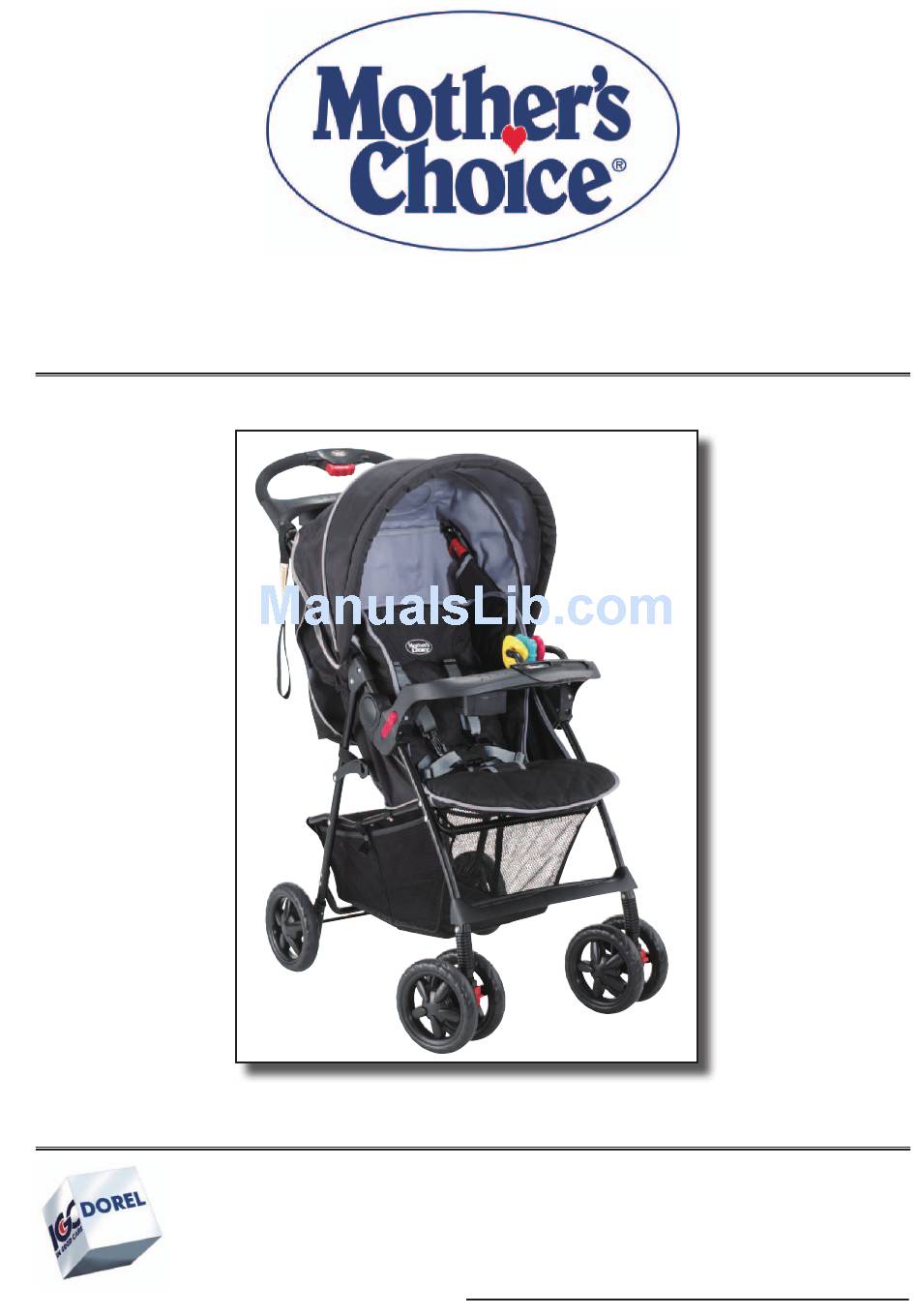

Instruction Manual & User Guide
Floyd Shopping Buggy
IMPORTANT: RETAIN FOR FUTURE REFERENCE.
Please read this manual in its entirety before assembling
the product and follow all instructions contained herein.
Do not use if any part is Broken, Torn or Missing.
Please retain instruction manual for future reference.
Illustrations are representative only.
Design and style may vary.
An IGC Dorel brand
Advertisement
Table of Contents
Related Manuals for Mother's Choice Floyd Shopping Buggy
Summary of Contents for Mother's Choice Floyd Shopping Buggy
- Page 1 Instruction Manual & User Guide Floyd Shopping Buggy IMPORTANT: RETAIN FOR FUTURE REFERENCE. Please read this manual in its entirety before assembling the product and follow all instructions contained herein. Do not use if any part is Broken, Torn or Missing.
-
Page 2: Table Of Contents
8 • To adjust the seat back position To fold the stroller • To secure your child page 9 To use the tether strap • Notes page 10-11 • Product care and maintenance Customer service page 12 #13392-MC-Floyd Shopping Buggy-03-12... -
Page 3: Warnings
Use the tether strap to prevent the stroller rolling away. • Keep children away from the stroller when unfolding and do not let them play with the folded stroller. • The weight of the child shall not exceed 17kg. Carry basket capacity 2kg. Parent tray maximum weight is 1kg. Child tray maximum weight is 1kg. Canopy pocket maximum weight is 1kg. #13392-MC-Floyd Shopping Buggy-03-12... -
Page 4: Components List
Safety Basket harness Storage latch Rear axle Footrest Flat washer x 4 Rear wheels x 2 Cotter pin x 2 Hub cap x 2 Front wheels Shipping brace is to be removed before assembly Ref: Figure 1. #13392-MC-Floyd Shopping Buggy-03-12... -
Page 5: To Unfold The Stroller
Instruction Manual & User Guide Assembling: Floyd shopping buggy TO UNFOLD THE STROLLER • If the stroller has a security tie, please remove it. • Remove shipping brace before assembly (A), as per Figure 1. • Lift the handle upwards away from the front legs, as per Figure 1. • Continue this action until the frame is fully open. Figure 1 When you hear a ‘click’ the stroller is fully opened and locked. -
Page 6: To Install The Rear Wheels
Instruction Manual & User Guide Assembling: Floyd shopping buggy (cont) TO INSTALL THE REAR WHEELS • Insert the rear stroller legs into the axle assembly and push up until it snaps into place, as per Figure 6. Ensure red brake pedals face towards the rear of stroller. Figure 6 TO INSTALL THE FRONT WHEELS •... -
Page 7: To Install The Parent Tray
Instruction Manual & User Guide Using: Floyd shopping buggy(cont) TO INSTALL THE PARENT TRAY • Open the canopy. • Push parent tray down onto the frame above the canopy until it snaps onto the handle bar, as per Figure 9. Figure 9 TO INSTALL THE CHILD TRAY • Guide the tray tabs into slots on stroller frame. Push until tray ‘clicks’ into place, as per Figure 10. -
Page 8: To Adjust The Seat Back Position
Instruction Manual & User Guide Using: Floyd shopping buggy (cont) TO ADJUST SEAT BACK POSITION • Apply pressure to both sides of the fastener to release the To raise/lower the seat back position, pull the strap seat adjustment strap, as per Figure 12. -
Page 9: To Secure Your Child
Instruction Manual & User Guide Using: Floyd shopping buggy(cont) TO SECURE YOUR CHILD A five-point harness is provided to secure your child. • The harness straps can be adjusted by moving each strap’s slider. • The buckle is released by squeezing the buckle tongues together. When not in use, disconnect shoulder straps and the waist straps from the buckle. TO USE THE TETHER STRAP Correct use of the tether strap will prevent a stroller runaway and possible injury to your child. -
Page 10: Notes
Instruction Manual & User Guide Notes: #13392-MC-Floyd Shopping Buggy-03-12... - Page 11 Instruction Manual & User Guide Notes: Please tape or staple your receipt here for safekeeping and future reference. #13392-MC-Floyd Shopping Buggy-03-12...
-
Page 12: Product Care And Maintenance
Phone 1 655-685 Somerville Road 14 Sir William Avenue, East Tamaki, Address Sunshine West, Vic, 3020 Auckland, 2013. 1300 809 526 (local call cost) 0800 628 000 (Toll Free) Phone 2 8:30 am – 4:30 pm, Monday to Friday 8:00 am – 4:00 pm, Monday to Friday. Hours IGC Dorel Pty Ltd IGC Dorel New Zealand Ltd Postal P.O. Box 1260 P.O. Box 82377 Highland Park Sunshine West, Victoria, 3020 Mt Wellington Australia New Zealand Specifications are subject to change without notice. Copy or reproduction without permission is prohibited. © 2011 IGC Dorel Pty Ltd. All Rights Reserved. www.igcdorel.com.au #13392-MC-Floyd Shopping Buggy-03-12...
