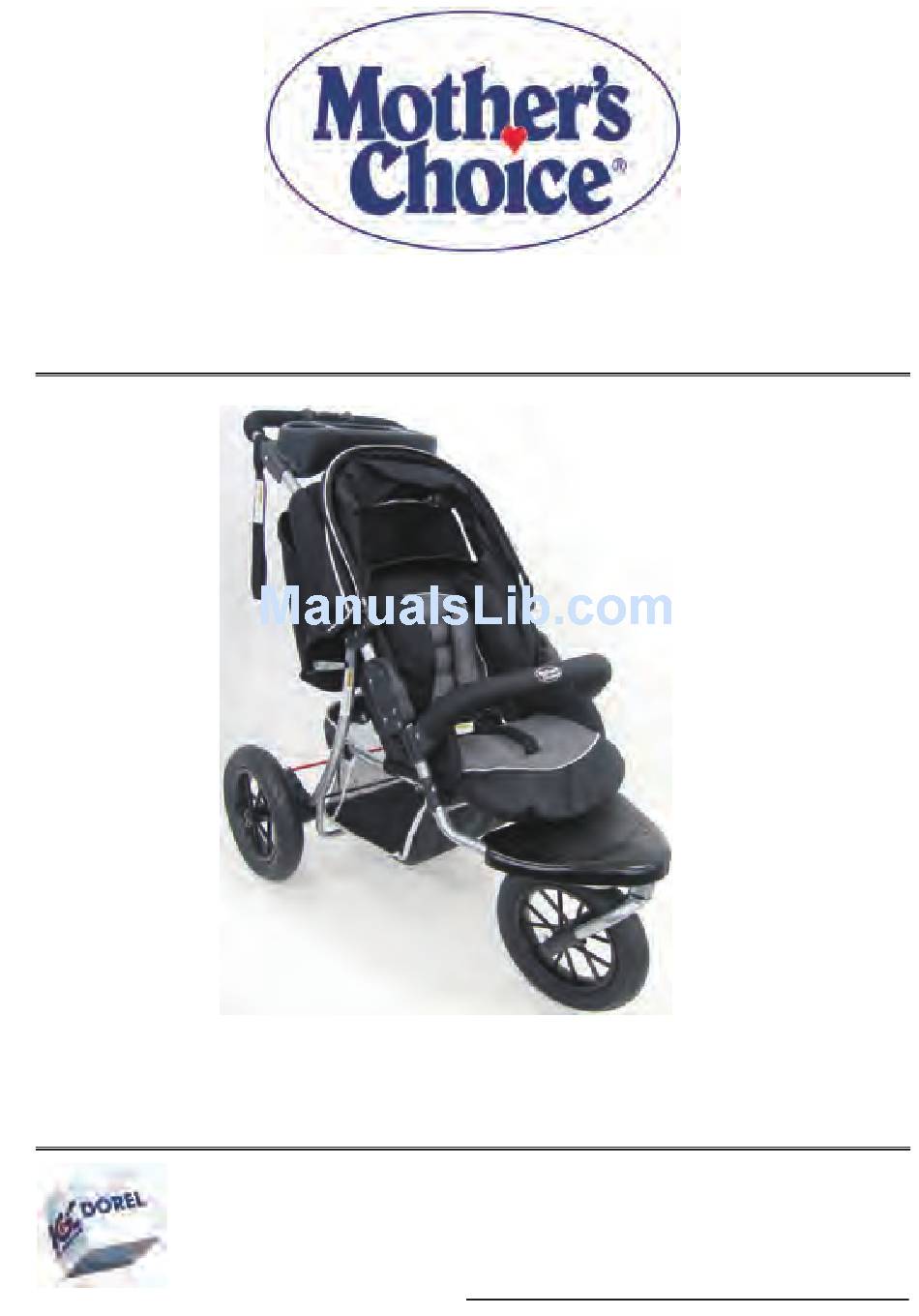

Instruction Manual & User Guide
Activo 3 Wheel Stroller
IMPORTANT: RETAIN FOR FUTURE REFERENCE.
Please read this manual in its entirety before assembling
the product and follow all instructions contained herein.
Do not use if any part is Broken, Torn or Missing.
Please retain instruction manual for future reference.
Illustrations are representative only.
Design and style may vary.
An IGC Dorel brand
Advertisement
Table of Contents
Related Manuals for Mother's Choice Activo 3
Summary of Contents for Mother's Choice Activo 3
- Page 1 Instruction Manual & User Guide Activo 3 Wheel Stroller IMPORTANT: RETAIN FOR FUTURE REFERENCE. Please read this manual in its entirety before assembling the product and follow all instructions contained herein. Do not use if any part is Broken, Torn or Missing.
-
Page 2: Table Of Contents
8 • To fold the stroller • To fit the raincover page 9 • To fit the bootcover • • To secure your child page 10 • To use the tether strap • Notes page 11 • • Product care and maintenance page 12 • Customer service MC-Activo 3 wheel stroller-11-11... -
Page 3: Warnings
• Do not use the stroller near an open fire, barbecue or exposed flame. • Engage front wheel swivel locks (when fitted) when travelling on rough or uneven surfaces. • This product is not intended for commercial use. • To avoid danger of suffocation, keep any plastic bags away from babies and children. • Regularly inspect the stroller for any parts that are loose, broken, torn or missing. Attend to the problem as soon as it is observed. • Use only those accessories which are supplied by IGC Dorel, and approved for use with this stroller. • Use the tether strap to prevent the stroller rolling away. • Keep children away from the stroller when unfolding and do not let them play with the folded stroller. • Inflate tyre to 28psi/2.0Bar (195kPa). Over inflation may result in tyre blowout. • The weight of the child shall not exceed 17kg. Carry basket capacity 2kg. Parent tray maximum weight is 1kg. Child tray maximum weight is 1kg. Canopy pocket maximum weight is 1kg. MC-Activo 3 wheel stroller-11-11... -
Page 4: Components List
Instruction Manual & User Guide Components List: Fold lever Parent tray Canopy Handle Tether strap (Red) Frame secondary lock Bumper bar Storage lock Safety harness Brake lever Footrest Rear wheel assembly Swivel wheel lock Carry basket Front wheel Accessories Raincover Bootcover MC-Activo 3 wheel stroller-11-11... -
Page 5: To Open The Stroller
Instruction Manual & User Guide Assembling: Activo 3 Wheel Stroller TO OPEN THE STROLLER • If the stroller has a security tie, please remove it. • Release the storage latch, as per Figure 1. • Stand at the handle end of the frame and grasp handle and lift until the two frame locks ‘click’ and the frame locks open, as per Figure 2. Figure 1 Figure 2 After removing stroller from carton, dispose of plastic bags and other packaging materials safely. TO FIT THE FOOTREST •... -
Page 6: To Attach/Remove Front Wheel
Instruction Manual & User Guide Assembling: Activo 3 Wheel Stroller (cont) TO ATTACH/REMOVE FRONT WHEEL • Lay the open stroller with the handle on the floor and the front fork facing upwards, as per Figure 4. • Align the wheel assembly to the front forks. • Push the two black plastic connectors over the front wheel fork tubes, as per Figure 5. • The front wheel assembly will be locked in place when the two sprung locking pins fully engage, as per Figure 6. To detach the front wheel assembly, push the two locking pins in while pulling the plastic connectors off the front wheel fork tubes. -
Page 7: To Fit The Rear Wheels
Instruction Manual & User Guide Using: Activo 3 Wheel Stroller TO FIT THE REAR WHEELS • Slide wheel onto the axle while pressing the clip. Release the clip and pull back on the wheel until it ‘clicks’ locking the wheel into place, as per Figure 8. To remove wheels, push the retaining clip inward and pull wheels out. Figure 8 TO ATTACH THE BUMPER BAR • Open the swivel clips fitted to each side of the bumper bar. • Clip the ends of the bumper bar onto the frame, as per Figure 8. -
Page 8: To Operate The Front Wheel Swivel Lock
Instruction Manual & User Guide Using: Activo 3 Wheel Stroller (cont) TO OPERATE THE FRONT WHEEL SWIVEL LOCK • When in the forward travel position, the front wheel can be left free to swivel or the swivel can be partially or fully locked using the latch, as per Figure 12. TO FOLD THE STROLLER Figure 12 • To minimise folded size, adjust the seat layback to its flattest position. To avoid damage the red secondary lock must be disengaged before attempting to fold the stroller, as per Figure 13. -
Page 9: To Fit The Raincover
Instruction Manual & User Guide Using: Activo 3 Wheel Stroller (cont) TO FIT THE RAINCOVER • Apply the park brake, then unfold the canopy forward. • Place the raincover over the stroller with the viewing window to the front, join all the velcro tabs, as per Figure 18. Figure 18 TO FIT THE BOOTCOVER • Apply the park brake. The Bootcover is attached to the stroller in places, on each side. • Attach the velcro tab( ) to the tail underneath the footrest( ), as per Figure 20. • Attach the velcro tab( ) to the side rail( ), as per Figure 20. Attach the final press... -
Page 10: To Secure Your Child
Instruction Manual & User Guide Using: Activo 3 Wheel Stroller (cont) TO SECURE YOUR CHILD A five-point harness is provided to secure your child. • The harness straps can be adjusted by moving each strap slider. • The buckle is released by squeezing the buckle tongues together. When not in use, disconnect shoulder straps and the waist straps from the buckle. -
Page 11: Notes
Instruction Manual & User Guide Notes: MC-Activo 3 wheel stroller-11-11... -
Page 12: Product Care And Maintenance
(03) 8311 5300 (09) 274 1040 Phone 1 655-685 Somerville Road 14 Sir William Avenue, East Tamaki, Address Sunshine West, Vic, 3020 Auckland, 2013. 1300 809 526 (local call cost) 0800 628 000 (Toll Free) Phone 2 8:30 am – 4:30 pm, Monday to Friday 8:00 am – 4:00 pm, Monday to Friday. Hours IGC Dorel Pty Ltd IGC Dorel New Zealand Ltd Postal P.O. Box 1260 P.O. Box 82377 Highland Park Sunshine West, Victoria, 3020 Mt Wellington Australia New Zealand Specifications are subject to change without notice. Copy or reproduction without permission is prohibited. © 2011 IGC Dorel Pty Ltd. All Rights Reserved. www.igcdorel.com.au MC-Activo 3 wheel stroller-11-11...
