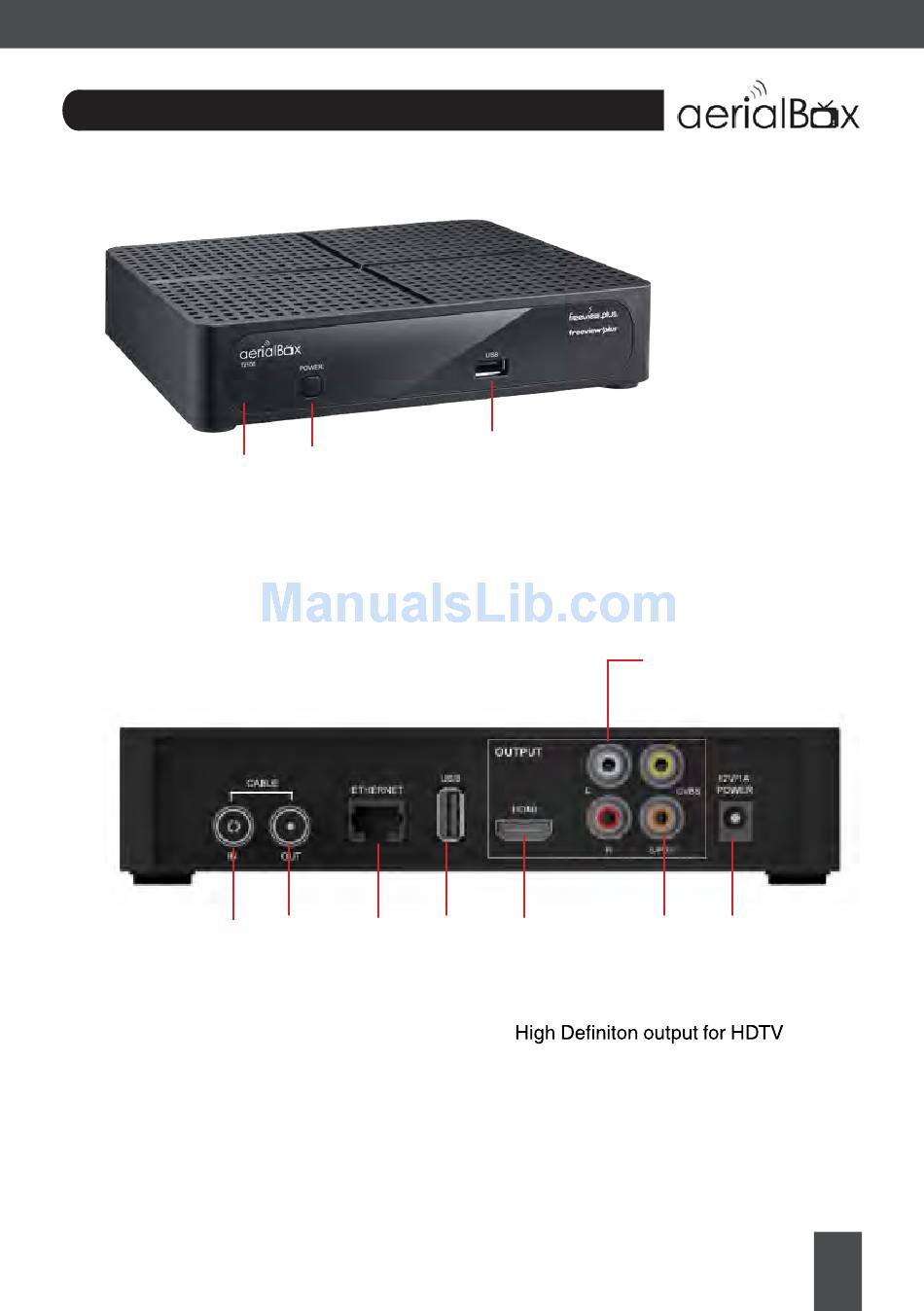

Product Overview

Front View
1
Back View
1
1. CABLE IN
UHF Aerial Input
2. CABLE OUT
UHF Signal Out
3. ETHERNET PORT
For wired Internet Connectivity
4. USB
Firmware Upgrade & HDD Connection
2
1. Power Indicator
Power/Standby Indicator
2. Standby Button
Switches on the receiver
4
2
3
3
3. USB
HDD Connection
5
5. HDMI
6. R,L and CVBS
AV Output (non HD TV)
7. Pb, Pr and Y
SPDIF (Surround Sound System)
8. DC 12V
Connect the 230V- 12v Adapter
6
7 8
7
