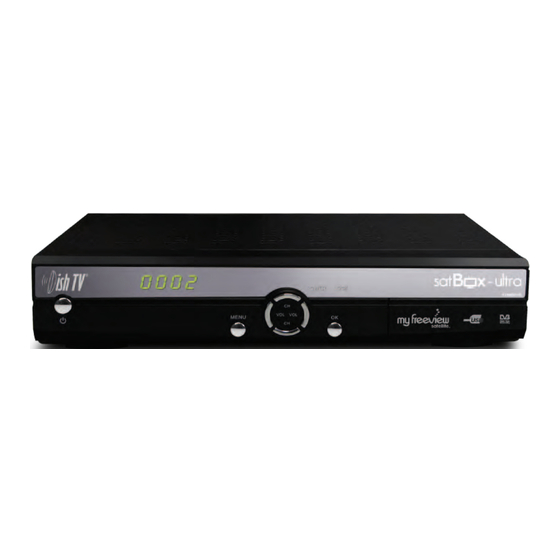

Page 1: User Manual
sat B - ultra User Manual... - Page 2 Thank you for choosing this DishTV Freeview Satellite Digital Set Top Box. You will be able to receive all Freeview Satellite digital TV channels and radio channels, as well as detailed Freeview program information with the Freeview 8 Day Electronic Program Guide, can also be tuned to nonfreeview satellite channels.
- Page 3 AV Cable sat B - ultra Loop Cable Quick Start Guide User Manual DishTV S7090PVR S7090PVR Digital Satellite Recorder User Manual User Manual DC 12V SAT IN Satellite Dish Factory Connect 230V~12V adaptor input 2. upgrade +HDD connection SAT IN Satellite Dish input 1.
-
Page 4: Table Of Contents
Page Your Remote Control Connecting up Getting Started Main Menu User Settings - Favourite View - Organizer - User Preference Installation - Tuning Wizard - Blind Scan - Satellite Scan - System Setting - Country Setup - Factory Default - S/W uprade via OTA System Con guration - Wakeup Timer - Version... -
Page 5: Your Remote Control
TV/R Switches between TV and Radio. INFO Menu/Back Exit V +/- P +/- Electronic Programme Guide, open programme guide window. Brings up Teletext. Beginning/End Fast Forward/Rewind playback. Pause Stop Pause playback. Stops playback Record Record a programme. Library, Displays recorded programmes list. -
Page 6: Connecting Up
Connect the supplied LNB Loop cable between the LNB 1 Loop Out connection(on the rear panel) and the LNB 2 In connection. This links the two tuners together to allow you to record two channels and watch a third. Connect that cable that comes from your Satellite dish to the SAT IN socket in the back of your set top box. -
Page 7: Getting Started
Switch your TV On and select the correct video input. Please make sure you don’t have a USB device plugged in while going through the setup process. Once you are setup you can then plug your device in. -
Page 8: Main Menu
Main Menu Main Menu: All other settings and tuning menus are selected from this main menu. This menu is the gateway for all other menus. You can invoke the main menu by pressing the MENU/BACK key. This main menu contains several options: User Settings Installation System Con guration... -
Page 9: Favourite View
Favourite View/Organizer Main Menu - User Settings - Favourite View: To enter this menu you will be prompted for your password (Default is 0000) This menu allows you to view your favourite channel list and allows you to classify channels and group them together to be viewed through favourites later. -
Page 10: User Preference
User Preference Main Menu - User Settings - User Preference: Note: To adjust a preference use the right arrow on your remote not the OK button. Here you can adjust your brightness and contrast levels. The Visual Impaired option turns discriptive audio on/o . This setting is for the sight impaired. OSD TimeOut or On-Screen-Display timeout, this option will adjust how long the information banners will stay on the bottom of your screen, these banners appear each time you change channel. -
Page 11: Blind Scan
Blind Scan Main Menu - Installation - Tuning Wizard - To enter this menu you will be prompted for your password (Default is 0000) Blind Scan Allows you to specify what frequency range to scan. You can also select the polarity, or to scan FTA or scrambled channels. -
Page 12: Satellite Scan
Satellite Scan Main Menu - Installation - Tuning wizard - Satellite Scan: From here you can set all the necessary parameters i.e. LNB settings, DiSEqC, tone switch and positioner details for each satellite. All options are displayed along the bottom of the window and accessed through there. -
Page 13: System Setting
System Setting Main Menu - Installation - Note: To adjust a setting use the right arrow on your remote. To select a setting use the OK button. Digital Video – Here you have the option of Auto, HDMI and DVI. DVI is HDMI video but no sound. It is best to keep this setting to HDMI. -
Page 14: Country Setup
Country setup/Factory Default/ S/W upgrade via OTA Main Menu - Installation - Country Setup Here you can change your Region. Setting this to the nearest region to you will ensure you view the Ads for your area. Factory Default This will reset all settings back to factory, deleting all channels and user settings. Default password is 0000. -
Page 15: Wakeup Timer
Wakeup Timer/Version Main Menu - System Configuration - Wakeup Timer You can set a service to be recorded at a speci c time. Even if the digital receiver is in standby mode, it will start recording at a speci ed time. When the recording comes to the end the unit will stay in standby until you press the standby button. -
Page 16: Esg
Main Menu - The ESG is an Electronic Service Guide. This is in addition to the freeview EPG (accessed using the EPG button) . Usually you will only use the ESG for non-freeview satellite channels. The ESG will be displayed when selecting the ESG option from the Main Menu. -
Page 17: Thumbnail Browser
Thumbnail Browser Main Menu - Meadia Manager - Here you can browse through your recorded programs as thumbnails, the title and information for your recording is displayed below for the selected thumbnail/recording. The information displayed icludes the duration of your recording, the size, the age rating(eg G, PGR, AO), the recordings created date and also the access date. -
Page 18: Recorded Book List
Recorded Book List/Media Information Main Menu - Media Manager - Here you can view all your programs waiting to record. You can use the Red button on your remote to delete a booking. The Green button on your remote will change the selected booking between a single record or a series booking. -
Page 19: Common Interface
Common Interface Main Menu - Under this menu you can adjust the settings of your CAM. If this menu is greyed out in the main menu it means you don’t have a CAM inserted or the CAM is faulty. Common Interface What is common interface? Some broadcasts are scrambled so that only paid subscribers can enjoy them. -
Page 20: Connectivity
Main Menu - Connectivity - All of the eNet features require an internet connection via the LAN port on the rear panel of the satBox-ultra. The weather and map services are provided by secondary providers and are not under the control of DishTV. DishTV cannot guarantee the ongoing availablility of these free services. -
Page 21: Eweather
eNet Buttons - eWeather From the eNet Buttons menu you can select eWeather. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the Country you desire and then the closest city name to you. -
Page 22: Emap
eNet Buttons - eMap From the eNet Buttons menu you can select eMap. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the area you wish to search and press OK for the map to start loading. -
Page 23: Email
eNet Buttons - eMail To check your email on your TV choose the eMail button from the eNet menu. Pro le Entry - To keep your email account secure this digital receiver allows multiple secure pro les. The pro e has nothing to do with your email login or password. -
Page 24: Recording
Recording Instant Record: This is done by pressing the record button on the remote. (This is the grey button with a red circle on it.) Pressing it will start recording on the channel you are currently watching and allow you to select the duration of the recording. - Page 25 Recording Once you have a recording set you will see a small R or S to the righthand side of your program. The R indicates the program will only be recorded once, the S indicates the program will be recorded every time it appears on TV.
-
Page 26: Recordings Library
Recordings Library To view recorded programmes, press the Library button. It will be labeled LIB on the remote. From here you can select the programme you wish to play. To play a recording press the OK button, this will then ask you if you want to play from the beginning or from your last viewed position. -
Page 27: Bookmarking
Bookmarking What is Bookmarking? You can mark favourite parts of a recording by creating bookmarks, and then jump to them. You can also use bookmarks to skip ads, just place a bookmark at the end of each ad break and when you next play your recording you can easly skip the ads by pressing the Right Arrow button next to the OK button. -
Page 28: Editing Recordings
Editing Recordings To enter the Record Edit window select your recording from the Library or Thumbnail Browser, then push the Green button on your remote then the OK button. Here you can remove sections of your recordings. In the record edit window your recording will play in the top right of the screen, you can use all your normal play, fast forward, rewind, pause functions to get to where you want to edit. -
Page 29: Firmware Upgrade
1. Download updated rmware from www.dishtv.co.nz and extract onto a USB ashdrive in a folder ‘dish_tv’ 2. Turn o power to satBox-ultra, insert the ashdrive and power back up. 3. Immediately start repeatedly pressing the Menu button on your remote (not holding it down) or hold down the Menu button on the front of the unit, Until the unit says USB on the fron panel. -
Page 30: Frequently Asked Questions
2. Check Software version by Clicking MENU>CONFIGURATION>VERSION>SOFTWARE VERSION and check on www.dishtv.co.nz if not latest please follow the instructions on the web site to update to the latest software version. 3. If problem persists please call Dish TV on 0800 DISH TV (0800 3474 88) or email support@dishtv.co.nz... -
Page 31: Troubleshooting
Troubleshooting Problem Possible Causes Solution Check the front panel. If nothing No picture S7090PVR is not plugged in or turned is illuminated then it is a power on at the wall. issue - please check power socket and plug socket. Please make sure that Main Menu - Your TV isn’t able to display the Installation - System Setting - HD... -
Page 32: Technical Specifications
Technical Specifications Item Specification Tuner Frequency Range 950MHz to 2150MHz Input Impedance 75Ohms unbalanced Signal Input Level -65 ~ -25dBm Symbol Rate 2-45Mbps LNB Power 13/18V,Max 500mA Demodulation Demodulator QPSK/8PSK 1/2,2/3,3/4,5/6,7/8,8/9,9/10 LNB IN F connector Connections LOOP OUT F connector YPbPr Connect to your TV component Input terminals... -
Page 33: Warranty
Warranty Please keep your receipt as proof of purchase. This product is warranted of any defect in materials or workmanship for one year after the original date of purchase. This product is for normal domestic and office use only. this warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, eccessive voltages such us lightning or power surges or any alteration that affects the performance or reliability of the product.
