Page 1: User Manual

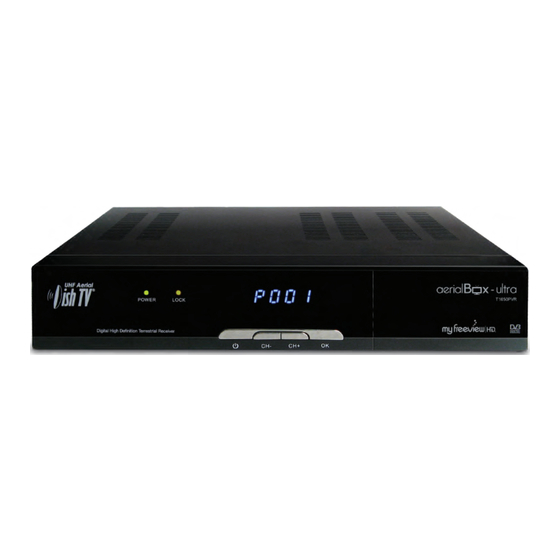

aeria l B - ultra T1050PVR User Manual... - Page 2 Thank you for choosing this DishTV Freeview High Definition Digital Set Top Box. You will be be able to receive all Freeview|HD UHF High Definition and Standard Definition digital TV channels, as well as detailed Freeview program information with the Freeview 8 Day Electronic Program Guide.
- Page 3 AV Cable DC 12V Firmware Connect 230V - 12v adapter upgrade +HDD connection RF IN UHF Aerial input RF OUT UHF Signal output...
-
Page 4: Table Of Contents
Page Your Remote Control Connecting up Getting Started Main Menu User Settings - Favourite View - Organizer - User Preference Installation - Tuning Wizard - Auto Scan - Manual Scan - System Setting - Factory Default - S/W uprade via OTA System Con guration - Wakeup Timer - Version... -
Page 5: Your Remote Control
Enables Audio Descript. Holding the INFO button for 3 sec displays the Version page. Library, Displays recorded programmes list. See page 26 Holding the LIB button for 3 sec displays the record booking list. Exit Pause Play or pause playback. Stop Stops playback Record... -
Page 6: Connecting Up
Connect the cable that comes from your UHF aerial to the RF IN socket in the back of your set top box. Connect the AV cable that came with your set top box between the yellow red and white sockets on the. -
Page 7: Getting Started
Open the battery cover of the remote control and put two AAA size batteries so the ‘+’ and ‘-’ marks on the batteries match the ‘+’ and ‘-’ marks inside the remote control. Replace the battery cover. Switch your TV on and select the correct video input. Switch the aerialBox ultra on and wait for it to boot up. -
Page 8: Main Menu
Main Menu Main Menu: All other Settings and tuning menus are selected from this main menu. This menu is the gateway for all other menus. User can invoke the main menu by pressing the MENU key. This main menu contains several options User Settings Installation System Con guration... -
Page 9: Favourite View
Favourite View/Organizer Main Menu - User Settings - Favourite View: To enter this menu you will be prompted for your password (Default is 0000) This menu allows you to view your favourite channel list and allows you to classify channels and group them together to be viewed through favourites later. -
Page 10: User Preference
User Preference Main Menu - User Settings - User Preference: Note: To adjust a preference use the right arrow on your remote not the OK button. Here you can adjust your brightness and contrast levels. The Visual Impaired option turns discriptive audio on/o . This setting is for the sight impaired. OSD TimeOut or On-Screen-Display timeout, this option will adjust how long the information banners will stay on the bottom of your screen, these banners appear each time you change channel. -
Page 11: Auto Scan
Auto Scan Main Menu - Installation - Tuning Wizard - Auto Scan: When the OK Button is pressed, the con rmation dialog will be displayed. Select the Yes option to start the scanning process. The Scan progress will be displayed along with the Signal Strength and Quality for the current frequency. -
Page 12: Manual Scan
Manual Scan Main Menu - Installation - Tuning Wizard - Tuning Wizard: To enter the Tuning Wizard menu you will be asked to input your password - the default is 0000. Manual Scan: Allows you to select and scan a single UHF channel/frequency. -
Page 13: System Setting
System Setting Main Menu - Installation - Note: To adjust a setting use the right arrow on your remote. To select a setting use the OK button. HD Resolution – This is where you set the HDMI output resolution depending on what your TV can handle. Most newer TVs have upscalers and so therefore you can sometimes get a better picture by lowering the output resolution in this menu, It does however depend on the quality and type of upscaler your TV has. -
Page 14: Factory Default
Factory Default/ S/W upgrade via OTA Main Menu - Installation - Factory Default This will reset all settings back to factory, deleting all channels and user settings. Default password is 0000. S/W Upgrade via OTA This option can be used only if an Over The Air software update is broadcasted via satellite. -
Page 15: Wakeup Timer
Wakeup Timer/Version Main Menu - System Configuration - Wakeup Timer You can set a service to be recorded at a speci c time. Even if the digital receiver is in standby mode, it will start recording at a speci ed time. When the recording comes to the end the unit will stay in standby until you press the standby button. -
Page 16: Esg
Main Menu - The ESG is an Electronic Service Guide. This is in addition to the freeview EPG (accessed using the GUIDE button) . Usually you will only use the ESG for non-freeview channels. The ESG will be displayed when selecting the ESG option from the Main Menu. -
Page 17: Thumbnail Browser
Thumbnail Browser Main Menu - Meadia Manager - Here you can browse through your recorded programs as thumbnails, the title and information for your recording is displayed below for the selected thumbnail/recording. The information displayed icludes the duration of your recording, the size, the age rating(eg G, PGR, AO), the recordings created date and also the access date. -
Page 18: Recorded Book List
Recorded Book List/Media Information Main Menu - Media Manager - Here you can view all your programs waiting to record. You can use the Red button on your remote to delete a booking. The Green button on your remote will change the selected booking between a single record or a series booking. -
Page 19: Enet Buttons
All of the eNet features require an internet connection via the LAN port on the rear panel of the aerialBox-ultra. The weather and map services are provided by secondary providers and are not under the control of DishTV. DishTV cannot guarantee the ongoing availablility of these free services. -
Page 20: Eweather
eNet Buttons - eWeather From the eNet Buttons menu you can select eWeather. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the Country you desire and then the closest city name to you. -
Page 21: Emap
eNet Buttons - eMap From the eNet Buttons menu you can select eMap. Use Up/Down to navigate between eNet buttons Use SMS type keyboard to enter letters. (entry using number keys ) Type in the area you wish to search and press OK for the map to start loading. -
Page 22: Email
eNet Buttons - eMail To check your email on your TV choose the eMail button from the eNet menu. Pro le Entry - To keep your email account secure this digital receiver allows multiple secure pro les. The pro e has nothing to do with your email login or password. -
Page 23: Recording
Recording Instant Record: This is done by pressing the record button on the remote. (This is the grey button with a red circle on it.) Pressing it will start recording on the channel you are currently watching and allow you to select the duration of the recording. -
Page 24: Recording
Recording Once you have a recording set you will see a small R or S to the righthand side of your program. The R indicates the program will only be recorded once, the S indicates the program will be recorded every time it appears on TV. -
Page 25: Recordings Library
Recordings Library To view recorded programmes, press the Library button. It will be labeled LIB on the remote. From here you can select the programme you wish to play. To play a recording press the OK button, this will then ask you if you want to play from the beginning or from your last viewed position. -
Page 26: Bookmarking
Bookmarking What is Bookmarking? You can mark favourite parts of a recording by creating bookmarks, and then jump to them. You can also use bookmarks to skip ads, just place a bookmark at the end of each ad break and when you next play your recording you can easly skip the ads by pressing the Right Arrow button next to the OK button. -
Page 27: Editing Recordings
Editing Recordings To enter the Record Edit window select your recording from the Library or Thumbnail Browser, then push the Green button on your remote then the OK button. Here you can remove sections of your recordings. In the record edit window your recording will play in the top right of the screen, you can use all your normal play, fast forward, rewind, pause functions to get to where you want to edit. -
Page 28: Media Center
MAC address for your unit. Once you select the device you want to browse you can change the list between Video, Audio and Photo les. Some media les may not play, please phone DishTV help line for information on playing media les. -
Page 29: Firmware Upgrade
One way to perform a rmware upgrade on your receiver is via USB using the USB port in the back. To do this just follow the instructions below... 1. Download rmware from www.dishtv.co.nz and follow the intructions on the website. 2. Unplug your aerialBox-Ultra from the power, insert the ashdrive. -
Page 30: Frequently Asked Questions
Do a factory reset by clicking MENU>INSTALLATION>FACTORY DEFAULT>Pin 0000 Check Software version by Clicking MENU>CONFIGURATION>VERSION>SOFTWARE VERSION and check on www.dishtv.co.nz if not latest please follow the instructions on our website to update to latest version. If the problem persists please call Dish TV on 0800 DISH TV (0800 3474 88) OR email on support@dishtv.co.nz... -
Page 31: Troubleshooting
Troubleshooting Problem Possible Causes Solution Check the front panel. If nothing No picture T1050 is not plugged in or turned is illuminated then it is a power on at the wall. issue - please check power socket and plug socket. Please make sure that Main Menu - Your display isn’t able to display the Installation - System Setting - HD... -
Page 32: Technical Specification
Technical Specification T1050 Designed to receive Freeview|HD high definition broadcasts via a UHF antenna. YUV via RCA sockets Composite via RCA sockets For internet connection 12v DC or via adapter Max 10w... -
Page 33: Warranty
● The manufacturer disclaims any liability for incidental or consequential damages. Warranty & Product Registration Please register your product to assist with warranty and product updates. To do this please visit www.dishtv.co.nz and click on Warranty & Registration...
