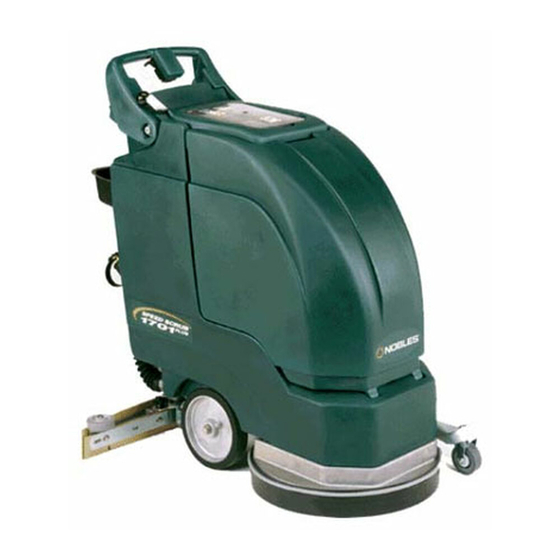

Nobles Speed Scrub 1701 Plus Operator And Parts Manual

Hide thumbs Also See for Speed Scrub 1701 Plus:
Table of Contents

Advertisement

Quick Links

Model No.:
608336
608337 – Pac
609245 – Can. Pac
611393
611394 – Pac
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
CUSTOMER SERVICE: 1-800-365-6625
FAX: 1–800–678–4240
Home
Speed Scrub
Find... Go To..
1701 Plus
Automatic Scrubber

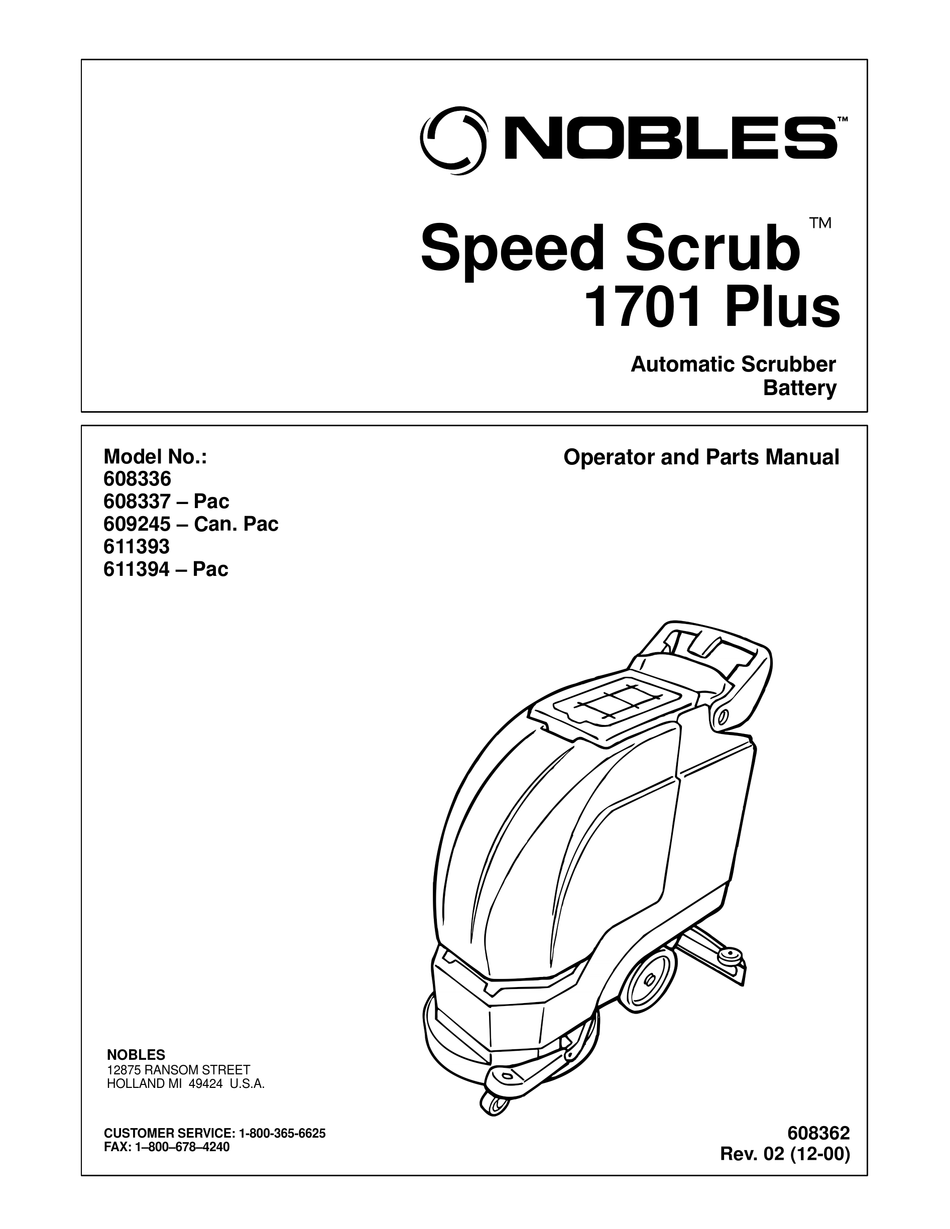

Operator and Parts Manual
Rev. 02 (12-00)
t
Battery
608362

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speed Scrub 1701 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles Speed Scrub 1701 Plus

Summary of Contents for Nobles Speed Scrub 1701 Plus

  • Page 1 Battery Model No.: Operator and Parts Manual 608336 608337 – Pac 609245 – Can. Pac 611393 611394 – Pac NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 608362 CUSTOMER SERVICE: 1-800-365-6625 FAX: 1–800–678–4240 Rev. 02 (12-00) Home Find... Go To..

  • Page 2: Table Of Contents

    E2000 Tennant Company Printed in U.S.A The machine is operated with reasonable care. Nobles is a registered United States trademark of Tennant Company. Speed Scrub is a United States trademark of Tennant Company. The machine is maintained regularly - per the machine maintenance instructions provided.

  • Page 3: Safety Precautions

    OPERATION 5. When servicing machine: SAFETY PRECAUTIONS – Avoid moving parts. Do not wear loose jackets, shirts, or sleeves. – Block machine tires before jacking This machine is intended for commercial use. It is machine up. designed to scrub hard floors in an indoor environment –...

  • Page 4: Machine Components

    OPERATION MACHINE COMPONENTS 1. Key Switch 14. Wand Kit ON/OFF Switch (Opt.) 28. Brush Trigger 2. Power ON/OFF Indicator Light 15. ES ON/OFF Switch (ESt Model) 29. Recovery Tank Lid 3. Hour Meter (Opt.) 16. Pump On Light (ESt Model) 30.

  • Page 5: Machine Installation

    OPERATION Battery Specifications: Two 12 volt, deep cycle batteries. Consult with an MACHINE INSTALLATION Authorized Distributor for specific batteries. Maximum battery dimensions are 178mm (7 in) W x 330mm (13 in) L x 254mm (10 in) H. UNCRATING MACHINE 1. Park machine on a level surface, turn off all switches, and remove key.

  • Page 6: Machine Setup

    OPERATION 6. Connect black battery cable coming from machine to negative (–) post of top battery. Then connect MACHINE SETUP opposite end of black jumper cable to positive (+) post (Figure 4). (–) Jumper Black ATTACHING SQUEEGEE ASSEMBLY Cable Cable 1.

  • Page 7: Installing Pad Driver Or Brush

    OPERATION 5. Place pad driver or brush on floor in front of machine. While tilting the machine backwards, INSTALLING PAD DRIVER OR BRUSH center the scrub head down over the pad driver 1. Raise scrub head to transport position. Step down (Figure 13).

  • Page 8: Removing Pad Driver Or Brush

    OPERATION REMOVING PAD DRIVER OR BRUSH 1. Raise scrub head to transport position. Step down firmly on scrub head lift pedal to raise (Figure 16). FIG. 18 NOTE: If filling with a bucket be certain that bucket is clean. This will prevent possible solution line clogs. 5.

  • Page 9: Adjusting Control Handle Height

    OPERATION ADJUSTING CONTROL HANDLE HEIGHT The control handle has three height settings to accommodate a comfortable operating height. 1. Locate two control handle height adjustments knobs on handle (Figure 20). 2. Pull both knobs and raise or lower handle, release knobs to lock (Figure 20).

  • Page 10: Operating Extended Scrub Option

    OPERATION FIG. 24 FIG. 26 NOTE: On rough surfaces it may be necessary to 3. When finished scrubbing, drain and rinse solution reduce brush pressure. tank and clean ESt filter (See DRAINING TANKS). 5. Check the brush meter pressure when scrubbing. Only operate machine in green zone.

  • Page 11: Circuit Breakers

    OPERATION ATTENTION: Do not continue to operate machine when battery meter is in the red zone, battery damage will result. 10. On last scrubbing pass, turn off solution switch just prior to stopping machine. This will allow total recovery pick up. 11.

  • Page 12: Draining Tanks

    OPERATION DRAINING SOLUTION TANK DRAINING TANKS To drain unused cleaning solution or recycled solution from solution tank, follow steps below: When to drain recovery tank: 1. Remove clear drain hose from hose barb, position – After each use. hose over drain (Figure 32). –...

  • Page 13: Battery Charging

    OPERATION 5. With charger’s power supply cord unplugged, connect charger to machine (Figure 34). BATTERY CHARGING The following charging instructions are intended for the 24V charger supplied with the machine. Only use a charger with the following specifications to prevent battery damage. CHARGER SPECIFICATIONS: OUTPUT VOLTAGE - 24 VOLTS OUTPUT CURRENT - 25 AMPS MAXIMUM...

  • Page 14: Machine Maintenance

    OPERATION WEEKLY MAINTENANCE MACHINE MAINTENANCE (Every 20 Hours of Operation) 1. Flush out tanks and solution lines. Pour 750mL To keep machine in good working condition, simply (24 oz) of an acetic acid solution with 11.3L (3 gal) follow the daily, weekly and monthly maintenance of hot water into solution tank.

  • Page 15: Battery Maintenance

    OPERATION BATTERY MAINTENANCE TRANSPORTING MACHINE WARNING: Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and When transporting machine by use of trailer or truck, open flame away. Keep battery compartment open be certain to follow tie–down procedures below: when charging.

  • Page 16: Trouble Shooting

    OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION No power, nothing runs. Faulty key switch. Contact Service Center. Batteries need charging. See CHARGING BATTERIES. Faulty battery(s). Replace battery(s). Loose battery cable. Tighten loose cable. MAIN circuit breaker has tripped. Determine cause and reset circuit breaker button.

  • Page 17: Specifications

    OPERATION TROUBLE SHOOTING – Continued PROBLEM CAUSE SOLUTION Poor water pick up. –continued Vacuum hose connections are loose Push hose cuffs firmly on connections. or hose has a hole. Replace hose if damaged. Clogged vacuum hose. Remove clogged debris. Recovery tank inlet hole is obstructed. Empty recovery tank and tilt tank side- ways to access inlet hole, remove ob- struction.

  • Page 18: Electrical Diagrams

    ELECTRICAL DIAGRAM WIRING DIAGRAM –58– GRN SWITCH BRUSH SWITCH –50– GRN –50– GRN –54– GRN –54– GRN BATTERY METER –31– BLK PRESSURE INDICATOR GAUGE LIGHT –60– –27– –8– –14– –10– –13– VACUUM SWITCH –20– GRN –20– GRN –22– BLK –34– GRN BRUSH DYNAMIC –18–...

  • Page 19: Electrical Diagram

    ELECTRICAL DIAGRAM LADDER DIAGRAM – –33– BLK –60– –GRN– –58– –RED– –56– –4– –6– –54– –GRN– –31– –BLK– –14– –RED– –RED– –RED– –50– –30– –BRN– –11– –BLK– –28– –RED– –17– –BLK– –26– –15– –BLK– –RED– –7– –BLK– –24– –BLU– –8– –YEL– –13–...

  • Page 20: Parts List

    PARTS LIST REPLACEMENT BRUSHES AND PAD DRIVER GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 21 PARTS LIST REPLACEMENT BRUSHES AND PAD DRIVER GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇1 ∇7 DASM.,BRUSH 17” NYLON DASM., PAD DRIVER 17” 370000 606227 DASM., BRUSH 17” GRIT 370002 603439 SCREW, #6X5/16 DASM., BRUSH 17” POLY 370007 603438 PLATE, WEAR 603439...

  • Page 22: Solution Tank Group

    PARTS LIST SOLUTION TANK GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 23 CLIP, DRAIN HOSE 140018 WASHER, #10 INT 610093 TANK, SOLUTION, GREEN 578201000 SCREW 10–32X.5 630146 PLUG 610204 BRACKET, SPRING 608361 DECAL, SPEED SCRUB 1701 PLUS 140027 WASHER, FLAT 601425 KNOB, SQ. LEVER 140015 WASHER, LOCK 601426 LEVER, SQUEEGEE 630425 SCREW, M8X1.25X20 601427...

  • Page 24: Recovery Tank Group

    PARTS LIST RECOVERY TANK GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 25 PARTS LIST RECOVERY TANK GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DCOVER, TANK 630055 605147 WASHER, RUBBER 630422 DECAL, BATT. CHARGE 609709 SCREW, 5/8–11X1” 630420 DECAL, FLAMMABLE MAT’L 601462 CLAMP DGASKET, REC. TANK 630367 240177 TUBE, BASE INLET 630056 STRAP, TANK COVER 621324...

  • Page 26: Wheel Group

    PARTS LIST WHEEL GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 27 PARTS LIST WHEEL GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 140201 SCREW, 3/8–16X3/4 601446 MOUNT, AXLE PEDAL 140017 WASHER, LOCK 601444 PEDAL HEAD LIFT 140028 WASHER, FLAT 140630 PIN, COTTER DWHEEL 605970 601471 PIN, CLEVIS 140047 WASHER 578140000 SPRING 601447 MOUNT, AXLE...

  • Page 28: Scrub Head Group

    PARTS LIST SCRUB HEAD GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 29 PARTS LIST SCRUB HEAD GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇1 DMOTOR, BRUSH 24VDC 601499 140219 SCREW, 5/16–18X1 DCARBON BRUSH (4/PK) DSKIRT, SPLASH GUARD 603638 601493 630609 GEARBOX 601495 ASM., SKIRT BAND 140632 604744 BUMPER, EXTRUSION 30” 130111 TERMINAL, RING 603148...

  • Page 30: Plumbing Group

    PARTS LIST PLUMBING GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 31 PARTS LIST PLUMBING GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DVALVE, SOLENOID 24VDC 601489 FITTING, NIPPLE 630022 150420 ELBOW, STREET 3/8 90° 140000 WASHER, FLAT DSCREEN, FILTER 601475 140016 WASHER, LOCK 601483 TEE, STREET 3/8 NPT 140272 SCREW, M6X1.0X16MM 630146 PLUG, 3/8 NPT 069760725...

  • Page 32: Vacuum Motor Group

    PARTS LIST VACUUM MOTOR GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 33 PARTS LIST VACUUM MOTOR GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DCONTACTOR, BRUSH 24V 630432 SCREW, M06X50MM 610742 140000 WASHER, FLAT 140284 DHOSE, VAC 1.5X15” 160426 130041 WIRE TIE 140307 CLAMP 600009 MUFFLER, VAC EXHAUST ∇ DMOTOR, VAC 24V 2–STG DHOSE, VAC 1.5X16”...

  • Page 34: Squeegee Group

    PARTS LIST SQUEEGEE GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 35 PARTS LIST SQUEEGEE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DHOSE, VAC W/CUFFS 160617 140028 WASHER, FLAT DWHEEL 140237 SCREW, 1/2–13X1 630477 140024 WASHER, LOCK 140000 WASHER, FLAT 140045 WASHER, FLAT 140536 NUT, WING 140139 BUSHING 601457 STRIP, REAR RETAINER DBLADE, SQ.

  • Page 36: Control Console Group

    PARTS LIST CONTROL HANDLE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 608360 HANDLE, GREEN 578082000 SPACER 601422 PIN, HANDLE LATCH 578002000 ARM, TRIGGER 601470 SPRING 601429 CONSOLE, TRIGGER 601421 TUBE, HANDLE LATCH 140061 WASHER, LOCK 601424 KNOB 578193000 SCREW, M04X25MM 601435 SCREW, M12X30MM...
  • Page 37 PARTS LIST CONTROL CONSOLE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DMETER, BATTERY VOLTAGE 130015 610723 PANEL, CONSOLE DSWITCH, ON/OFF DBREAKER, CIRCUIT 20AMP 608605 130752 DSWITCH, ROCKER SPST DBREAKER, CIRCUIT 35AMP 630419 602951 DLIGHT, GREEN INDICATOR 130738 609969 PLUG, HOUR METER DGAUGE, BRUSH PRESSURE 603212...

  • Page 38: Options

    OPTIONS ESt (EXTENDED SCRUB) GROUP 12 13 Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 39 OPTIONS ESt (EXTENDED SCRUB) GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DKIT, ESt & WAND PUMP 603171 140016 WASHER, LOCK ∇ DKIT, ESt 603172 578321000 SCREW, M6X16MM DSWITCH, LIQUID LEVEL 603166 578008000 SCREW, M05X3.3 DFILTER, SCREEN 578445 601416 PANEL, ACCESSORY 601484 FITTING, REDUCER...

  • Page 40: Wand Pump Group

    OPTIONS WAND PUMP GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 41 OPTIONS WAND PUMP GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DKIT, ESt & WAND PUMP 603171 630252 FITTING, BUSHING ∇ DKIT, WAND PUMP 603173 150538 HOSE BARB DPUMP, 24VDC 630136 606325 TUBING, 3/8 ID X 24” 140310 CLAMP 601416 PANEL, ACCESSORY DSWITCH, ROCKER...

  • Page 42: Hour Meter And Low Voltage Interrupter Groups

    OPTIONS HOUR METER AND LOW VOLTAGE INTERRUPTER GROUPS PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DKIT, HOUR METER ∇3 DKIT, LOW VOLTAGE INTERRUPTER 603174 610724 (FOR MACHINES MANUFACTURED ∇2 DKIT, LOW VOLTAGE INTERRUPTER 610725 BEFORE AUG. 2000) 603076 GUAGE, BATTERY 24V 603076 GUAGE, BATTERY 24V 603314...

  • Page 43: Squeegee Wand Group

    OPTIONS SQUEEGEE WAND GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇ 190928 WAND ASSEMBLY, DOUBLE BEND 160481 HOSE, VAC 1–1/2X10’ 6108.1 WAND, DOUBLE BEND 160451 CONNECTOR, VAC HOSE 13840 SQUEEGEE ASM PUSH/PULL ∇ ASSEMBLY INCLUDED IN ASSEMBLY Speed Scrubt 1701 Plus (12–00) Home Find...

  • Page 44: Deluxe Power Wand Group

    OPTIONS DELUXE POWER WAND GROUP Speed Scrubt 1701 Plus (12–00) Home Find... Go To..
  • Page 45 OPTIONS DELUXE POWER WAND GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇ 578905000 ASM., DELUXE POWER WAND 578228000 SPRING, COMPRESSION 578060000 WAND, DOUBLE BEND 578143000 STUD, ADJUST. 578077000 BRACKET, VALVE MOUNTING 578126000 AXLE, WAND 578061000 ADAPTER, HEAD/WAND 578125000 WHEEL, GUIDE 578214000 FITTING, ELBOW...

  • Page 46: Power Wand Hose Group

    OPTIONS POWER WAND HOSE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇ 578903000 HOSE ASM., POWER WAND 578276000 HOSE, VACUUM, 1-1/2 X 10’ GRAY 578318000 FITTING, QUICK CONCT MALE 578071000 CONNECTOR, QUICK CONCT FE- MALE 578160000 CLAMP, HOSE 11–13MM 231031 SLEEVE, 1–1/2”DIA X 5”LG 578820000...

  • Page 47: Quick Change Battery Cable Group

    OPTIONS QUICK CHANGE BATTERY CABLE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DKIT, QUICK CHANGE BATTERY DBOOT, BATTERY CABLE 604341 611221 TERMINAL BLK DASM., CABLE W/RED QUICK 603210 DBOOT, BATTERY CABLE CHANGE 611222 TERMINAL RED 603209 ASM., CABLE W/RED QUICK DCOVER, BATTERY TERMINAL CHANGE 611223...

  • Page 48: Battery Connector Mount Group

    OPTIONS BATTERY CONNECTOR MOUNT GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇ DKIT, BATTERY CONNECTOR MNT 606689 140019 WASHER, #6 EXT. 140887 SCREW, 10–24X3/8 140831 SCREW, 6–32X5/8 606688 BRACKET, BATT. CONNECTOR 140519 NUT, 10–24 KEP Speed Scrubt 1701 Plus (12–00) Home Find...
