Digi-Wave
300 Series
™

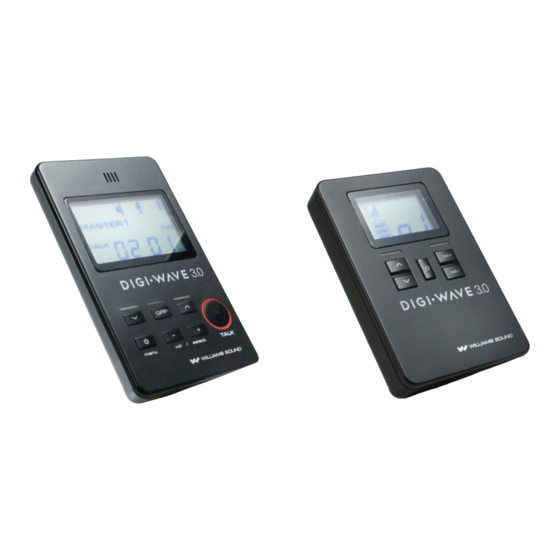

DLT 300 Digital Transceiver and DLR 360 Digital Receiver
USER MANUAL
DLT 300
DLR 360
The Digi-Wave 300 Series is not backward compatible with previous Digi-Wave transceivers or receivers.
MAN 195A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digi-Wave DLT 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Williams Sound Digi-Wave DLT 300

Summary of Contents for Williams Sound Digi-Wave DLT 300

  • Page 1 Digi-Wave 300 Series ™ DLT 300 Digital Transceiver and DLR 360 Digital Receiver USER MANUAL DLT 300 DLR 360 The Digi-Wave 300 Series is not backward compatible with previous Digi-Wave transceivers or receivers. MAN 195A...

  • Page 2: Table Of Contents

    DigiWave 300 Series Digital Transceiver and Receiver Digi-Wave™ 300 Series DLT 300 Digital Transceiver and DLR 360 Digital Receiver Contents Safety Warnings and Recycling Instructions ..........................3 System Overview ..................................4 DLT 300 Controls and Connectors ............................5 DLT 300 Operation .................................. 5 Button Functions ................................

  • Page 3: Safety Warnings And Recycling Instructions

    Please take the batteries to a retail or community collection point for recycling. Product Recycling: Please do NOT dispose of your Williams Sound equipment in the household trash. Please take the equipment to an electronics recycling center or return the product to the factory for proper disposal.

  • Page 4: System Overview

    DigiWave 300 Series Digital Transceiver and Receiver System Overview The Digi-wave™ system is a patented, digital spread-spectrum (DSS), simultaneous two-way wireless listening system operating in the 2.4 GHz band. Due to it’s frequency-hopping algorithm, it avoids interference and is a very secure method of communication.

  • Page 5: Dlt 300 Controls And Connectors

    DigiWave 300 Series Digital Transceiver and Receiver DLT 300 Controls and Connectors INTERNAL SPEAKER LCD DISPLAY LED INDICATORS TALK BUTTON WITH BRAILLE DOT VOLUME / SELECT UP VOLUME / SELECT DOWN POWER / MENU HEADPHONE JACK 3.5 MM MIC JACK 3.5 MM INTERNAL MICROPHONE 30-PIN DOCKING/...
  • Page 6 DigiWave 300 Series Digital Transceiver and Receiver QUICK GROUP CHANGE / SETUP BUTTONS · Press and hold together for 3 seconds to enter setup menu · Press and hold button for 3 seconds to enter quick group change mode. The GRP light will flash. Then use to change groups.

  • Page 7: Dlr 360 Controls And Connectors

    DigiWave 300 Series Digital Transceiver and Receiver 30-PIN DLR 360 Controls and Connectors DOCKING/ CHARGING CONNECTOR HEADPHONE LANYARD JACK 3.5 MM SPEAKER SLOT STRENGTH DLT#1 STRENGTH DLT#2 ANTENNA SYMBOL NUMERIC TYPE BATTERY NUMERIC DISPLAY STRENGTH RED LED GREEN LED VOLUME CH/GROUP CHANGE ADJUST...

  • Page 8: Getting Started: Preprogrammed Systems

    DigiWave 300 Series Digital Transceiver and Receiver Getting Started: Preprogrammed Systems If a system has been purchased, you should not need to perform any programming. The system will have been configured to your order. Turn Master 1 on first so other units can pair. Guest units will turn off after 5 minutes if they cannot find a master. 1.

  • Page 9: Before Programming The Digi-Wave™ System

    DigiWave 300 Series Digital Transceiver and Receiver Before Programming the Digi-Wave™ System Depending upon the mode chosen, up to six people can talk in a group at any given time. The M1 will have first priority, M2 has second priority and Guest units have third priority. When two or more people are talking in a group, the participants can hear their voices with the DLTs or DLRs.
  • Page 10 DigiWave 300 Series Digital Transceiver and Receiver Rules of Operation (1-way modes) The following rules must be followed when setting up any Digi-Wave™ system. Failure to adhere to these rules will result in unpredictable, unsupported operation. • Up to 15 channels can be used simultaneously, i.e. one floor and 14 interpreters. •...

  • Page 11: Programming The Digi-Wave™ System For 1-Way Modes

    DigiWave 300 Series Digital Transceiver and Receiver Programming the Digi-Wave™ System for 1-way Modes There are 4 basic steps to programming a Digi-wave system: Set Mode: 2-way or 1-way Set Priority: Master 1, Master 2, and Guest Set Channel Set Group Number Most of the programming is done on the DLT(s);...

  • Page 12: Programming The Digi-Wave™ System For 2-Way Modes

    DigiWave 300 Series Digital Transceiver and Receiver Programming the Digi-Wave™ System for 2-way Modes There are 4 basic steps to programming a Digi-wave system: Set Mode: 2-way or 1-way Set Priority: Master 1, Master 2, and Guest Set Address Set Group Number Most of the programming is done on the DLT(s);...

  • Page 13: Programming The Digi-Wave™ System: Dlt Optional Settings

    DigiWave 300 Series Digital Transceiver and Receiver Programming the Digi-Wave™ System: DLT Optional Settings Secure Key Code: When a group has been set up and the same Secure Code has been entered into all the DLTs, the DLTs without this Secure Original (save) Code entered cannot listen in on the group.
  • Page 14 DigiWave 300 Series Digital Transceiver and Receiver Address Confirmation Press MENU three times for M1 and M2, or twice for GST units. The address for the DLT will be displayed for two seconds. Original (save) NOTE: Every DLT MUST have its own address and all must be assigned to the same group. Original (save) Quick Group Change “Groups”...

  • Page 15: Example 1: 2-Way Mode, Tour Guide

    DigiWave 300 Series Digital Transceiver and Receiver Example 1: 2-way Mode, Tour Guide HOW IT WORKS 1. Tour Guide 1 speaks, using a DLT alone (built-in mic) or using it with a compatible headset mic. 2. Each Tour Group Member and Tour Guide 2 listen directly to Tour Guide 1, each using a DLT alone (built-in speaker) or using it with a compatible headset mic.

  • Page 16: 2-Way Setup For Tour Guide Operation

    DigiWave 300 Series Digital Transceiver and Receiver TOUR GROUP TOUR GUIDE 1 Intercom Setup: Master Unit Guest Unit(s) TOUR GUIDE 2 2-WAY 2-WAY 2-way Tour Guide Setup: Tour Guide 1 Unit Tour Guide 2 Unit Tour Group Member Units A558 2-WAY SETUP FOR TOUR GUIDE OPERATION 1-way Modes 2-way Modes...
  • Page 17 DigiWave 300 Series Digital Transceiver and Receiver 2-way Tour Guide Setup Press and hold POWER Press and Hold The other icons will disappear Use the buttons button for 2 seconds for 3 seconds to enter and the current mode icon to change to 2-way Tour to turn DLT ON programming mode.

  • Page 18: Example 2: Simultaneous Interpretation (1-Way)

    See section “Repeater Mode” for details. The 3.5mm stereo microphone jack can accept a headphone level or a line level output from audio sources when using the Williams Sound WCA 094 attenuated cable. ALL INTERPRETERS ARE LISTENING TO...

  • Page 19: 1-Way Setup For Simultaneous Interpretation

    DigiWave 300 Series Digital Transceiver and Receiver 1-WAY SETUP FOR SIMULTANEOUS INTERPRETATION 1-way Modes 2-way Modes 1-way 1-way Speak Only Receive / Speak 1-way 1-way 2-way 2-way 2-way (Main Speaker) (Interpreter) Repeater Receive Only Intercom (Tour Guide) Receive Only 1-way Simultaneous Interpretation Setup 1-way Modes 2-way Modes 1-way...

  • Page 20: Example 3: Intercom (2, 3, 4, 5 Or 6 Simultaneous Talkers)

    How it Works: 6-way Intercom DigiWave 300 Series Digital Transceiver and Receiver Example 3: Intercom (2, 3, 4, 5 or 6 simultaneous talkers) HOW IT WORKS 1. There must be one primary “Master 1” unit per group (for synchronization). 2. Each secondary unit is set up as a “Guest”. 3.

  • Page 21: 2-Way Setup For Intercom

    DigiWave 300 Series Digital Transceiver and Receiver 2-WAY SETUP FOR INTERCOM 1-way Modes 2-way Modes 1-way 1-way Speak Only Receive / Speak 1-way 1-way 2-way 2-way 2-way (Main Speaker) (Interpreter) Repeater Receive Only Intercom (Tour Guide) Receive Only Intercom Mode Setup 1-way Modes 2-way Modes Press and hold POWER...

  • Page 22: Example 4: Repeater Mode

    DigiWave 300 Series Digital Transceiver and Receiver 1-way Modes 2-way Modes 1-way 1-way Example 4: Repeater Mode Speak Only Receive / Speak 1-way 1-way 2-way 2-way 2-way (Main Speaker) (Interpreter) Repeater Receive Only Intercom (Tour Guide) Receive Only An additional DLT 300 can be set-up as a repeater to increase the range of each channel. To use Repeater Mode, first get the System set up using instructions under Example 2 for Simultaneous Interpretation.
  • Page 23 DigiWave 300 Series Digital Transceiver and Receiver ORIGINAL (SAVE) Any DLT’s in 1-way Modes, or DLR’s, must be in the same Group. Each Listener would select a desired channel/language. See below - when repeater mode is used, the main speaker’s unit is reconfigured as a Guest unit. The Repeater is configured as the Master unit.

  • Page 24: Differences Between Dlt 300, Dlt 100 2.0 And Dlt 100

    DigiWave 300 Series Digital Transceiver and Receiver Differences between DLT 300, DLT 100 2.0 and DLT 100 Function/Description DLT 300 DLT 100 2.0 DLT 100 With settings locked, can adjust With settings locked, can ONLY With settings locked, can ONLY adjust SLOC Power, Volume, Talk, Tone, Mic adjust Power, Volume, Talk...

  • Page 25: Differences Between Dlr 360, Dlr 60 2.0 And Dlr 60

    DigiWave 300 Series Digital Transceiver and Receiver Differences between DLR 360, DLR 60 2.0 and DLR 60 Between 08/13 and 11/13, a limited number of DLR 60’s were manufactured and sold to the marketplace. If the front of the unit says “Digi·WAVE”, you have a DLR 60.

  • Page 26: Specifications

    DigiWave 300 Series Digital Transceiver and Receiver Specifications DLT 300 TRANSCEIVER Dimensions 103.3 x 61.8 x 11.3 mm (4.07 x 2.43 x 0.44 inches) (H x W x D) Weight 82 g (2.9 oz) including battery Color Black/Silver (Front/Back) Black ABS plastic Case Material Battery type Lithium Polymer with smart charge built into transceiver;...

  • Page 27: Dlr 360 Receiver

    DigiWave 300 Series Digital Transceiver and Receiver DLR 360 RECEIVER Dimensions: 2.36” W x 3.54” H x 0.63” D (60 mm x 90 mm x 16 mm) Weight: 1.7 oz. (47g) without batteries. Frequency Band: 2.4 GHz (ISM band) Modulation: FSK Multi Channel: Up to 15 simultaneous channels (one way mode) Case Material: Black ABS Plastic Battery Type: 2 x AAA Alkaline or NiMH...

  • Page 28: Troubleshooting

    DigiWave 300 Series Digital Transceiver and Receiver Troubleshooting PROBLEM CAUSE WHAT TO DO Power does not turn-on Dead battery Charge the battery, replace battery Power turned off Master device can’t be found Turn on Master unit automatically Power doesn’t turn off Program Error Press reset button on the back of device (DLT only) Disconnection of headphone...

  • Page 29: Faqs

    DLT – up to 14 hrs per charge. DLR - up to 24 hrs (2 x AAA Alkaline batteries) or 18 hrs (2 x AAA NiMH batteries). Is this product compatible with any other competitive system? Where can I buy this product? Through Williams Sound dealers.

  • Page 30: Fcc Statements

    (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. Visit the Williams Sound website for the current declarations of conformity and latest list of certifications at http://www. williamssound.com.

  • Page 31: 2-Year Warranty

    No person has any authority to bind Williams Sound to any representation or warranty with respect to the DLT 300 and DLR 360.
  • Page 32 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2015 Williams Sound • All Rights Reserved MAN 195A...
