Summary of Contents for Quintezz XT-9500

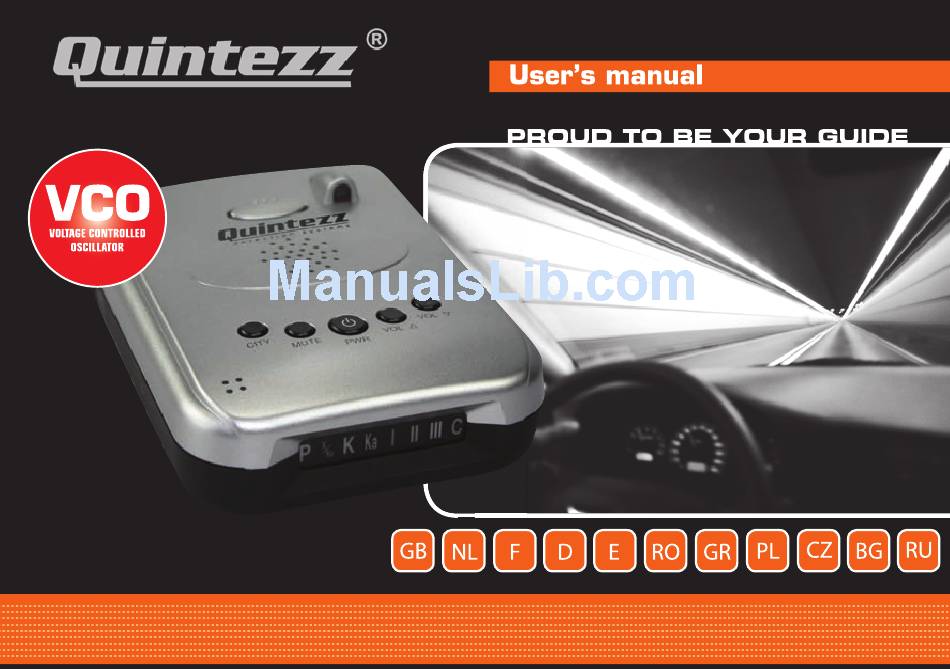

- Page 1 XT-9500...
-
Page 2: Declaration Of Conformity
Kapelsestraat 61, 2950 Kapellen - BELGIUM - declare, that the following equipment : Product Name: Quintezz XT-9500 Product Type: Radardetector Conforms with the requirements of European Council Directive 1999/5/EC of March 9, 1999 on the approximation of the laws of the member states relating to the R&TTE directive. - Page 3 addendum SUN VISOR MOUNTING ΜΟΝΤΑΡΙΣΜΑ ΣΤΟ ΣΚΙΑΔΙΟ Fix the main unit on the sun visor using the Διορθώστε την βασική μονάδα στο σκιάδιο χρησιμο- special clip. ποιώντας το ειδικό κλιπ. BEVESTIGING AAN DE ZONNEKLEP MONTAŻ NA OSŁONIE PRZECIWSŁONECZNEJ Bevestig het toestel aan de zonneklep door Zamocuj urządzenie do osłony za pomocą...
- Page 4 Illustration I Illustration II Illustration III click...
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION XT-9500 FEATURES INSTALLATION A. GENERAL GUIDELINES B. MOUNTING TYPES C. POWER CONNECTION HOW THE RADAR AND LASER WORK-GENERAL A. HOW THE RADAR WORKS B. RADAR & LASER FREQUENCIES C. LASER DETECTION D. LASER RANGE OPERATION A. SELF TEST B. RADAR & LASER ALARMING C. HIGHWAY MODE D. CITY MODE E. DIP MODE F. MUTE MODE G. HOW THE DETECTOR WARNS H. WIDE BAND OPTIONS I. RESET MAINTENANCE FUSE REPLACEMENT INSTRUCTIONS GB-1... -
Page 6: Introduction
Please INSTALLATION drive safely. A. GENERAL GUIDELINES The following are some guidelines for mounting XT-9500 FEATURES the detector : • Mount the detector so that the receiving win- 1. ON/OFF and Dip key (PWR) dow/sensor has an unobstructed view of the Key to switch the appliance ON/OFF. To dip or to... -
Page 7: Mounting Types
DASHBOARD MOUNTING (Illustration II) 12Volt electrical system and must be used with a The hook and loop fastener Velcro tape provided, negative ground electrical system. Do not operate may be used to mount your detector on a flat dash- your XT-9500 on a positive ground electrical sys- board. The dashboard must be clean and dry for tem. Consult your vehicle owners’ manual if you the fastener to adhere properly. are not certain of its polarity. -
Page 8: How The Radar And Laser Work-General
The reflected signal is shifted in frequency by an as low as possible in the car. amount proportional to the speed of the target The QUINTEZZ XT-9500 offers the possibility to vehicle. This phenomenon is known as the Doppler detect a laser from before as well as from behind. effect. The radar unit determines the target vehicle speed from the difference in frequency between OPERATION the reflected signal and original signal. -
Page 9: Radar & Laser Alarming
B. RADAR & LASER ALARMING F. MUTE MODE The detector identifies the band on which the signal is During a radar transmission when the audio alarm received by means of different tones and an indication is sounding, you have the option to mute the alarm in the display. With the detection of a radar signal the by pressing the ‘MUTE’ button momentarily. After indication of the band is shown. The strength of the 20 seconds the unit will de-mute automatically. signal is shown in the display as I, II and III. You do not have to reset the unit. C. HIGHWAY MODE G. HOW THE DETECTOR WARNS Highway mode provides full audio alarms and ! Starts to beep slowly, then increases in rate very maximum sensitivity for open road driving. It is rapidly. -
Page 10: Wide Band Options
H. WIDE BAND OPTIONS To test the indication of each signal, you can put the For the different bands X/Ku, K and Ka, you can set unit in Test-mode by pressing the ‘CITY’ and ‘MUTE’ different tones and set the band ON or OFF. Press key simultaneously. If you press the ON/OFF key (PWR), you go back to Standby-mode. the ‘CITY’ key for 2 seconds to start setting. The display shows the current settings. Use the ‘MUTE’ I. RESET key to set the X/Ku band ON or OFF, the -key for This action makes it possible to undo all settings the K band and the -key to set the Ka band ON and to go back to the default settings. -
Page 11: Fuse Replacement Instructions
If your unit does not work anymore (no test while NOTE : switching on), we advise you to complete the • Failing to press the top of the fuse holder down following checks: prior to rotating it will damage the fuse holder. Use • Is the power cord properly plugged in at both of pliers to rotate the top may also cause damage. ends? • The illustration indicates the direction that the fuse • Is the fuse OK? holder top must be rotated to reassemble. • Is the cigar lighter socket clean and free from corro- sion? •... - Page 12 XT-9500/06-09/V01...
