Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
05/04

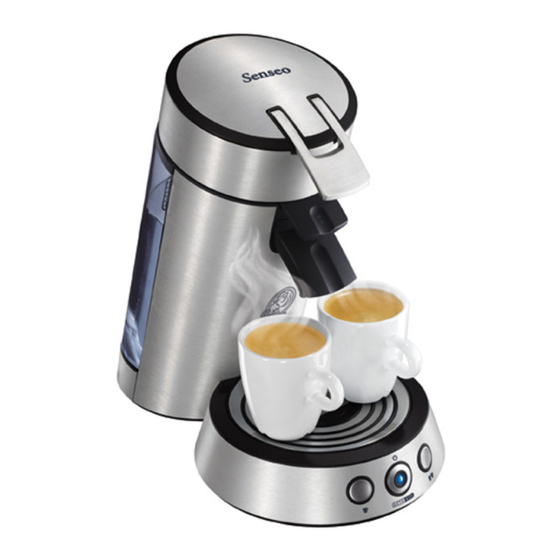

Coffee Maker Senseo Excel
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Standby power consumption : 0.002 kWh
- Contents reservoir
- Colour setting
- Sap coding
L
Pump M
N
Printed in the Netherlands
© Copyright reserved
HD7840
: 220 - 230 V
: 50 Hz
: 1450 W
: 753 cc
: Black/Aluminium
: HD7840
Waterlevel
Temp.
Sensor
Sensor
Automatic
thermostat
CONTROL
Boiler
PCB
Push buttons
Subject to modification
Advertisement
Table of Contents
Related Manuals for Philips Senseo Excel HD7840
Summary of Contents for Philips Senseo Excel HD7840
- Page 1 - Colour setting : Black/Aluminium - Sap coding : HD7840 Waterlevel Temp. Sensor Sensor Automatic thermostat Pump M CONTROL Boiler Push buttons Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification 05/04...
-
Page 2: Repair Instruction
HD7840 DISASSEMBLY- AND RE-ASSEMBLY ADVISE REPAIR INSTRUCTION Disassembly information Adjusting the Coffee Volume output. To remove the back cover (item 12 exploded view) handle as When for some reason the pump or PCB had to be replaced, follows: please be aware for the following adjustments to perform. At the factory all appliances are 100% adjusted to get the - Remove valve outlet. -
Page 3: Optional Accessories
HD7840 Descaling Regular descaling will prolong the life of your appliance and will guarantee optimal brewing results for a long time. - Follow the steps in the section headed “Preparing the appliance for use” see DFU (Direction For Use manual). - In stead of only water use a mix of water and Lemon sour. -
Page 4: Exploded View
EXPLODED VIEW HD7840... - Page 5 EXPLODED VIEW HD7840...
- Page 6 HD7840 NEDERLANDS Geachte klant, Hierbij ontvangt u uw Senseo koffi ezetapparaat retour, met onze excuses voor het ongemak. Onze reparatiedienst garandeert u een weer 100% goed werkend product. Tevens laten we u weten dat we uw Senseo hebben voorzien van een nieuw koffi euitstroomgedeelte en 2 nieuwe padhouders (1- en 2-kops padhouder).
- Page 7 HD7840 FRANÇAIS Cher consommateur, Nous sommes heureux de vous rendre votre cafetière Senseo et nous nous excusons pour tout inconvénient occasionné. Notre service réparations garantit le bon fonctionnement de l’appareil. Votre cafetière Senseo a été fournie avec une nouvelle unité d’écoulement du café et 2 nouveaux supports à dosettes (support à dosettes pour 1 et 2 tasses).
