ADEMCO LYNXR User Manual page 10

6<67(029(59,(:

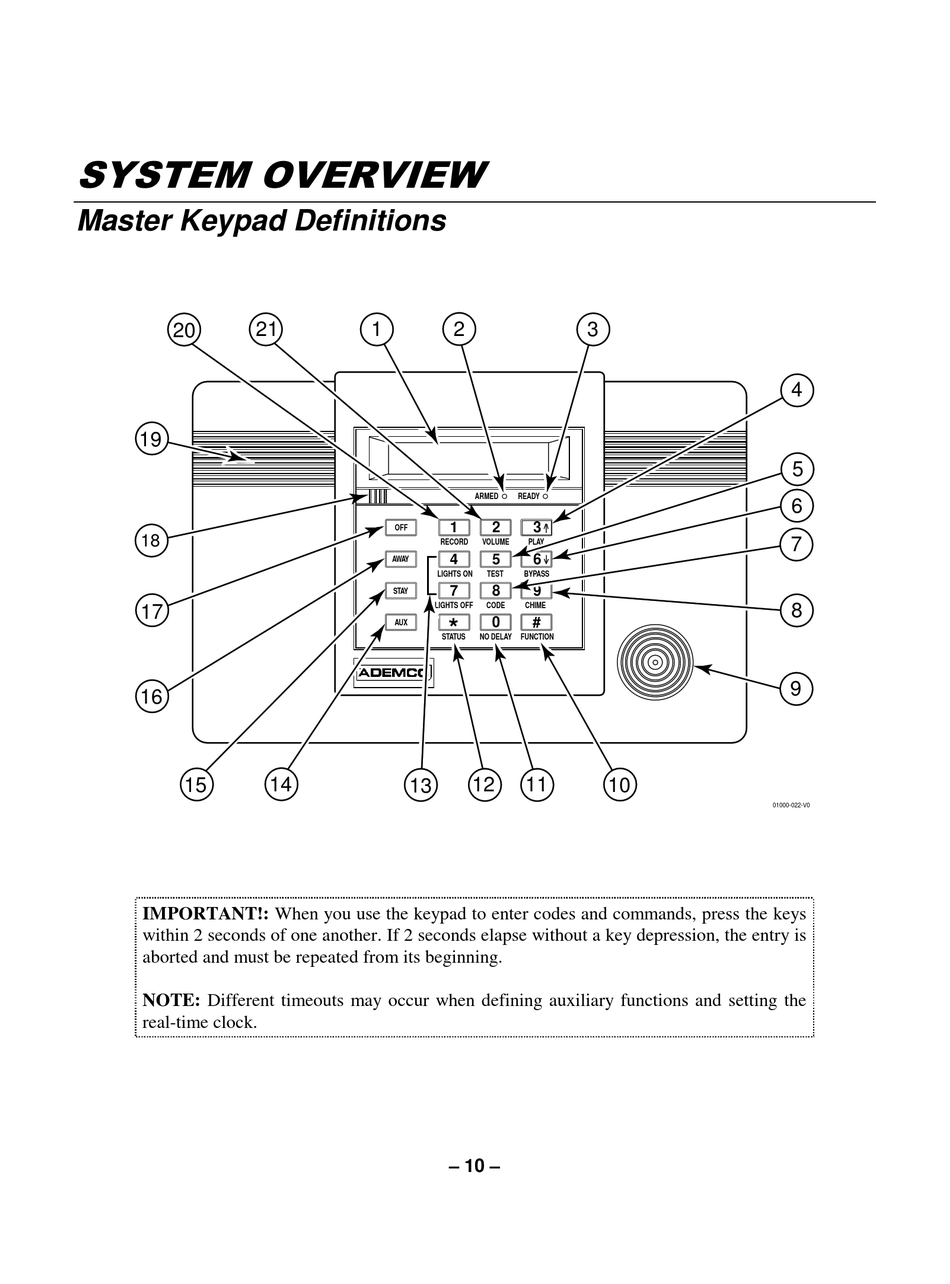

Master Keypad Definitions
20
19
18
17
16
15
IMPORTANT!: When you use the keypad to enter codes and commands, press the keys
within 2 seconds of one another. If 2 seconds elapse without a key depression, the entry is
aborted and must be repeated from its beginning.
NOTE: Different timeouts may occur when defining auxiliary functions and setting the
real-time clock.
21 1
OFF
AWAY
STAY
LIGHTS OFF
AUX
14
13
2 3
ARMED READY
1 2 3
RECORD VOLUME PLAY
4 5 6
LIGHTS ON TEST BYPASS
7 8 9
CODE CHIME
0 #
*
STATUS NO DELAY FUNCTION
12 11 10
– 10 –
4
5
6
7
8
9
01000-022-V0
