Formax Cut-True 15M Operator's Manual

Manual paper cutter
Hide thumbs Also See for Cut-True 15M:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

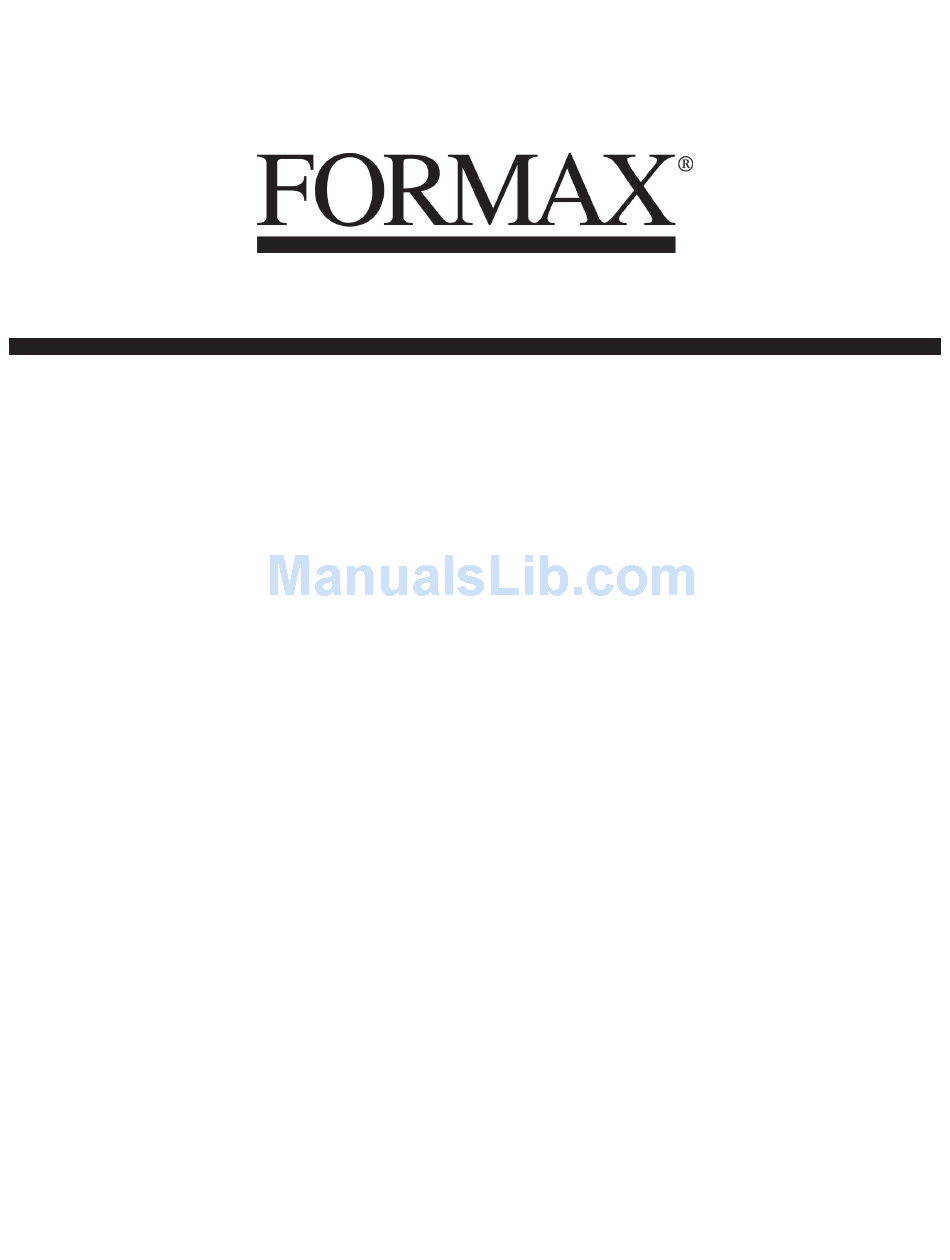

Cut-True 15M
Manual Paper Cutter
9/2014
OPERATOR MANUAL
SECOND EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cut-True 15M and is the answer not in the manual?

Questions and answers

Related Manuals for Formax Cut-True 15M

Summary of Contents for Formax Cut-True 15M

  • Page 1 Cut-True 15M Manual Paper Cutter OPERATOR MANUAL SECOND EDITION 9/2014...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TOPIC PAGE Specifications Safety Guidelines Assembly Overview Description of Equipment Parts 3 - 4 Operation Maintenance Replacing the Cutting Stick Cutting Blade Maintenance Replacing the Cutting Blade 5 - 7...

  • Page 4: Specifications

    SAFETY GUIDELINES * Operators should read this manual prior to using the cutter * The Cut-True 15M should only be used by one person at a time. * The knife lever should be lowered using both hands. * After making each cut, the knife lever should be moved back to the full upright and locked position.

  • Page 5: Assembly

    ASSEMBLY The handgrip of the blade lever arm, the spindle guided clamp wheel and the back gauge crank with screw are packed separately in the box with the machine. Install these parts first. The chassis and stand of the machine should be connected as follows: Set the legs so the 4 threaded pins point upward.

  • Page 6: Overview

    OVERVIEW DESCRIPTION OF EQUIPMENT PARTS Safety Gadget Protects operators from blade lever arm’s moving parts Blade Lever Arm Lever-action provides robust cutting with minimal effort. After each cut, the lever must be returned to its full upright and locked position. Blade Locking Device Connected to the front safety guard (7), it prevents operation when the safety guard is in the up/open position.

  • Page 7: Operation

    Blade Adjustment Access The blade height can be adjusted up to 2mm by using the adjustment screw. To lower the blade (+), turn to the left. To raise the blade (-), turn to the right. NOTE: If the blade is adjusted too low, it will cut deeply into the cutting stick, damaging not only the stick but the cutting blade.

  • Page 8: Maintenance

    MAINTENANCE All moving parts with screws should be checked periodically to be sure the screws are tight. They may become loose in the process of transportation. Users should also check and tighten the screws after more than 200 cutting cycles. All moving parts should be lubricated and oiled periodically to maintain performance and equipment life.
  • Page 9 Lower the blade lever arm to horizontal position. Remove the four screws on the front safety cover, then remove the cover itself. Remove the right blade screw (A). Raise the blade lever arm to its top position. Remove the screw on the clamp handwheel and remove the wheel.
  • Page 10 Slowly turn the handles of the safety tool slightly to the left, just enough to release the blade from the machine. NOTE: The blade and safety tool are heavy. Remove the blade and safety tool together. Carefully remove the old blade from the blade change safety tool.
