- Page 1 Cut-True 22S Electric Paper Cutter OPERATOR MANUAL FIRST EDITION 1/2013...
- Page 2 INDEX CONTENTS PAGE Safety Instructions Getting to know your paper trimmer Blade Replacement Instruction...
-
Page 3: Safety Instruction
Safety Instruction: Safety Instruction: 1. Carefully read this instruction manual before operating the machine. People who operate the machine must read and fully understand how to use the safety equipment, and have the ability to follow and implement the regulations stated in this instruction manual. 2. -
Page 4: Installation Of The Machine
Installation of the machine: The back-gauge crank, clamp hand wheel with screws and some related tools are separately and properly packed in a box with the machine. Please install these items right away. The top part of the machine and the stand must be connected as follows: 1. - Page 5 Transportation: Please refer to the specifications of the machine to arrange a capable lifting device to move the machine. Note : Note : The handling and transportation should be carried out by qualified people only. During handling, people are strictly prohibited from entering the path of the movement of the machine.
-
Page 6: Maintenance And Lubrication
Installation of electrical power supply: Please follow up the underneath specification of power supplier to set up the machine and main power. Model Cut-True 22S Cut-True 22S 1~, 120V, 60Hz Voltage 1~, 120V, 60Hz 8A< Fuse <10A Fuse 8A< Fuse <10A Cable diameter (Input) 1.0 mm... -
Page 7: Cutting Stick

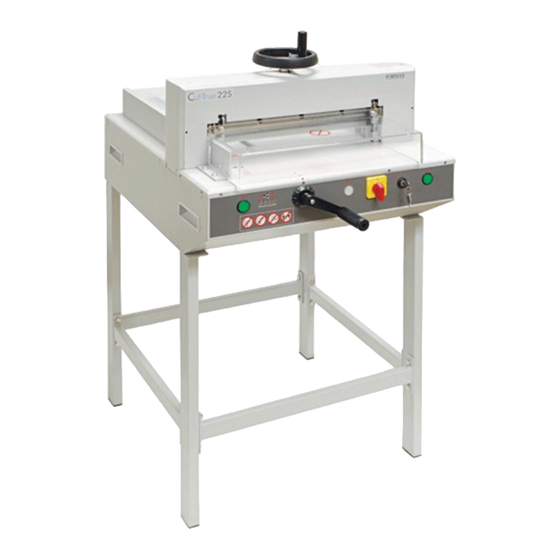

Error messages for the 1. “Cut 2000” means the blade has reached its life cycle of 2000 cuts. Please put in a new blade. Press the button on the right and turn the select switch to the middle position to reset the life cycle to zero. 2. - Page 8 Getting to know your paper guillotine: Blade holder There are 5 screws for positioning the blade on the blade holder. Blade It’s made of high quality carbon steel and needs to be installed and removed step by step following the blade replacement instructions.
- Page 9 Side Gauge with Scale Measurement in mm/cm and inches. The indicator on the back-gauge will point out the current measurement. The fine adjustment can be done via the scale ring. The minimum adjustment is 0.5mm. Stand The standard equipment of 22S is made of steel.
- Page 10 Select switch in blade change position Blade Replacement Procedure Turn the power switch ON, and turn the select switch to the left. Power switch in ON position Press two enable switches simultaneously to move the blade down to the bottom position. Turn the select switch to the middle and turn off the power.
- Page 11 Remove the blade change safety tool from the tool box and screw the handles into the two holes to the left and right of center (see photo). Screw them in tightly, to prevent the blade from falling out of the holder. Blade change safety tool in place Remove the center screw.
- Page 12 Carefully remove the old blade from the blade change safety tool. Set it on a flat surface and unscrew the handles. Cap the old blade with a protective pad to prevent injury. Place the new blade with the beveled cutting edge facing up, and the screw holes at the top, as shown here.
- Page 13 Appendix A Inspection for safety device function of the machine MODEL: SERIES: DATE: Checker: Content Result OK Fail Remark Safety guard is closed Press 2 enable switches. The blade will go down. Safety guard is open Press 2 enable switches . The blade can’t go down.
