Table of Contents

FEATURES

1. Best sensitivity in the world (0.00004 lux F#1.4 50IRE)
2. 700 TV line in B/W and 580TV line in color.
3. Suitable for 24 hours surveillance with DSS and ICR functions.
4. IP66 certified and air ventilation is miximized.
5. This product is made of corrosion-free surface to resist
rust and corrosion for a long time.
6. This camera has a special lens which always has a correct
focus regardless IR light or visible light.
7. Power & video cables are concealable. (Cable through bracket).
8. All the funcitons are controlled through door on the bottom
9. Full 3 axis bracket built-in (Ceiling mount and wall mount available)
212WIR
Quick Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SENS212WIR and is the answer not in the manual?

Questions and answers

Related Manuals for AVS SENS212WIR

Summary of Contents for AVS SENS212WIR

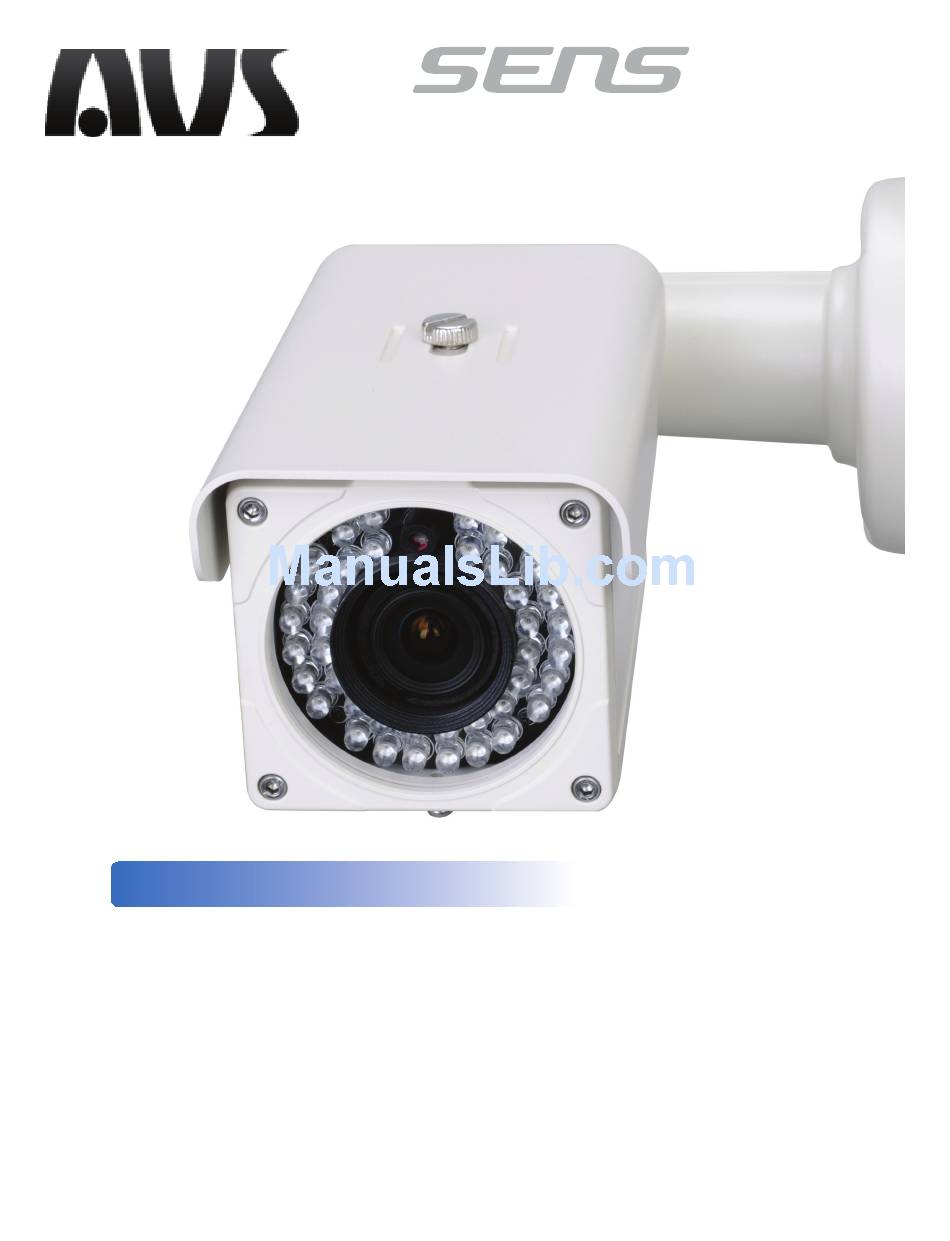

  • Page 1 212WIR Quick Manual FEATURES 1. Best sensitivity in the world (0.00004 lux F#1.4 50IRE) 2. 700 TV line in B/W and 580TV line in color. 3. Suitable for 24 hours surveillance with DSS and ICR functions. 4. IP66 certified and air ventilation is miximized. 5.
  • Page 2 Configuration Adjust the positon of sunvisor Joint for 3 axis Panning Joint Tilting Joint Video Control lens, dip switches 12V DC 24V AC Ventilation holes to Position the sunvisor to Split glass to prevent reflection Extra video output for installation prevent condensation prevent direct sunshine 1.

  • Page 3: Bracket Adjustment

    Quick installation Open the box and check the contents Bracket adjustment Adjust this joint to install it on the wall Tilting adjustment Panning adjustment 1. SCREW 3EA 2. WRENCH 3. EXTRA VIDEO CABLE / 4. MANUAL Connecting the power and video Video 12V DC 24V AC...

  • Page 4: Menu Setting

    Quick installation Adjusting the control panel 1. LED : OFF, ON You can turn on the LEDs or off continuously 2. LED-ON : Fast, Slow Fast : LEDs will be on at around 6 lux Slow : LEDs will be on at around 3 lux 3.
  • Page 5 Dimension 245.8 155.0 166.0 SPECIFICATION MODEL NTSC Model Number SENS212WIR Image Sensor 1/3 Inch, Sony CCD ( ICX638 / ICX639 ) 768 (H) X 494 (V) 752 (H) X 582 (V) Effective Pixels NTSC TV System PAL TV System Video System...
