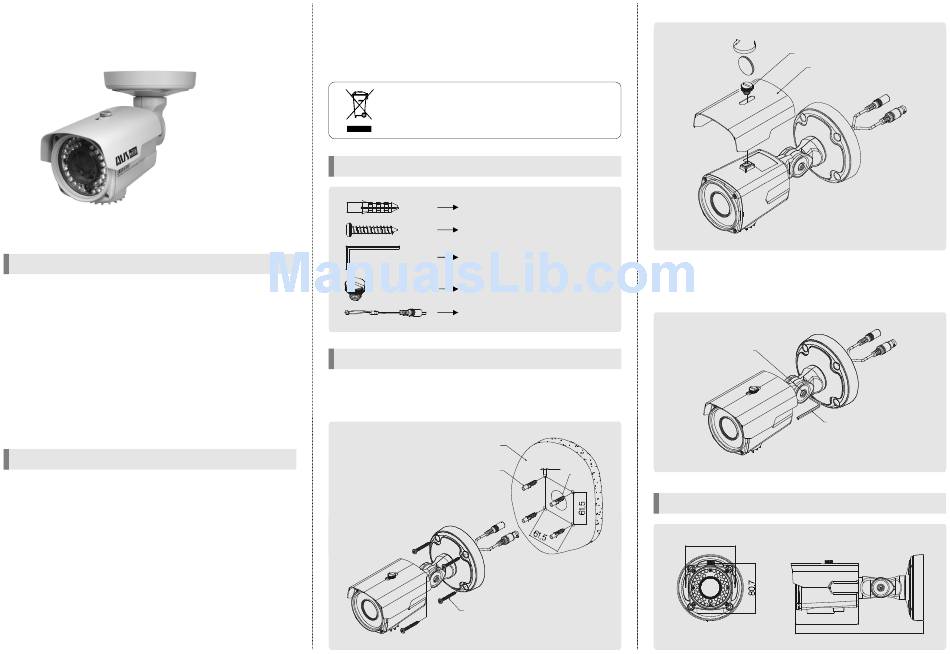

AVS PICO212WIR40 Manual

IR WEATHER-PROOF WDR CAMERA
PICO212WIR40
MANUAL

FEATURE

1. Mechanical filter exchange(True Day & Night), built-in WDR function.
2. Supreme Resolution(700 TV-Line)
3. This camera is incredibly flexible to install with its 3-axis camera
construction, which makes the camera ceiling, wall or slope
mountable.
4. This product is weather-proof to resist rain, snow and other weather
factors(IP66).
5. 120ft range visible in total darkness with 40pcs of IR LEDs.(Indoor)
6. Adopted DNR technology, It reduces noise efficiently in low light
condition.
7. Support 12 different privacy zone
8. Provide Max. 4x digital zoom
CAUTION
1. Please study the instruction manual before your applications and
keep it for your future reference.
2. Do not flash LED light directly on the eyes when LEDs are on.
3. Do not install the camera on a unstable surface.
It will cause falling or other hazards.
4. Do not use improper power, it could cause fire or electric shock.
(Use the AC adaptor 12V DC regulated, 1A)
5. Do not disassemble or re-model the camera, it could cause fire,
electric shock or other hazards.
6. Stop using the camera when you find a malfunction like smoke or
unusual heat, it could cause fire or electric shock.
7. Due to the possibility of water leakage, do not cut or peel off the
cable. In case you cut or peel off the cable, the warranty will be
void.
8. Please use the camera unit within given temperature and electricity limit.
9. Please make sure that installation should be done by qualified service
person only.
10. Do not disassemble the unit by yourself. When there is problem with
the unit please contact after-sale service center or the shop where
you bought.
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which
is not harmful to the environment.

ACCESSORIES

ANCHOR 6x30, 4EA
SCREW 4x35 TP1 PAN SUS, 4EA
WRENCH 3mm L TYPE, 1EA
SUNVISOR BOLT, 1EA
Extra video output cable for installation ,
1EA(option)

HOW TO INSTALL

1. Make a hole of Ø25mm in diameter for passing cable.
2. Drill four holes on the wall or ceiling and insert the anchors.
3. Arrange the cables and fix the screws.
WALL
ANCHOR 6x30, 4EA
SCREW Tp1 4x35, 4EA
4. Attach the sunvisor and fix the sunvisor fixing bolt.
5. Loosen the bolt by using the 3mm wrench included.
6. Face the direction of the camera to monitor.
7. Tighten the bolt to complete adjustment.
Ø6
Ø25

DIMENSION

80.4
BOL T
SUNVISOR
BOLT
WRENCH
101.7
205.9
