HD-SDI VANDAL-PROOF &
WATERPROOF
D&N DOME CAMERA
SNAP212VIR
MANUAL
◐ PRECAUTION
1. You can install the camera indoors or outdoors.
2. C hoose an ideal location for the camera, since a camera unit must
be protected against vibration.
3. B e careful not to scratch the camera unit, especially lens or dome
cover.
4. U se the camera within the temperature(-45℃~50℃). [W/
HEATER(option)]
5. Avoid any direct sun light toward the lens.
6. U se the AC adaptor 12V DC, 600mA regulated. Dual voltage
product can use 24V AC, 600mA adaptor.(option)
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which
is not harmful to the environment.
◐ FEATURES
1. 1/2.9" SONY CMOS sensor
2. Full HD Resolution
3. DAY & NIGHT Function
4. WDR (Wide Dynamic Range)
5. 3D DNR Function
6. Privacy mask function 16 area
7. On Screen Display menu
8. Intelligent motion detection 4 area
9. Output : HD-SDI/CVBS
10. Protocol RS-485 : PELCO-P, PELCO -D (Option)
11. IP68(Waterproof)
12. Durable MATERIAL : Body - Aluminum, Dome - Polycarbonate
13. T his camera is incredibly flexible to install with its 3-axis camera
construction, which makes the camera ceiling, wall or slope
mountable
14. 25M range visible in total darkness with 24pcs of IR LEDs.(Indoor)

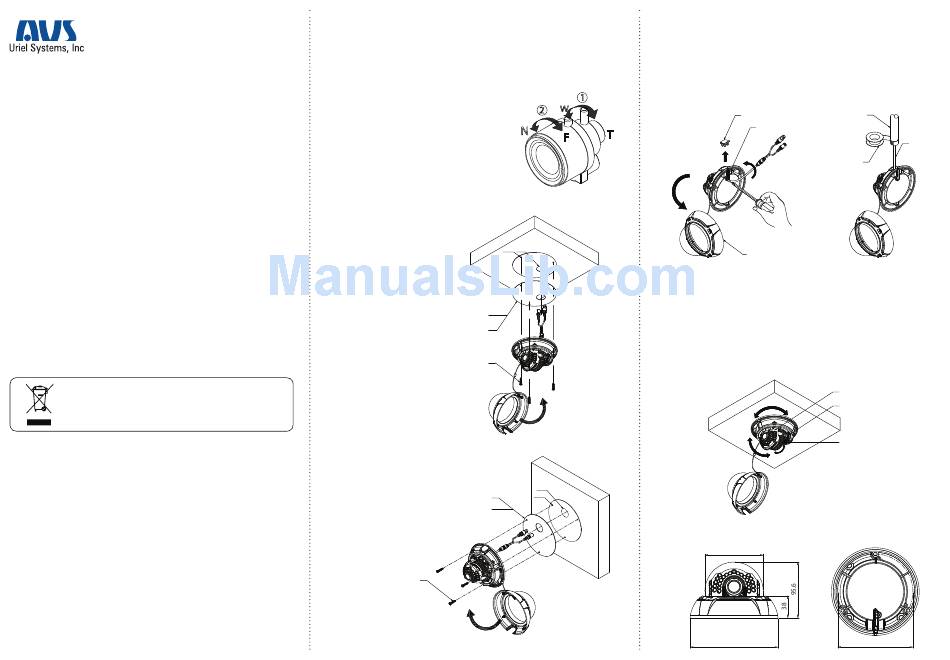

◐ HOW TO INSTALL
1. Camera installation
(1) F ix the camera set with the supplied screws on ceiling or wall
mount. If you don't use supplied screws, the camera may fall off.
(2) P lease refer to '3. Camera angle adjustment' regarding adjust
camera angle.
(3) L ens adjustment(Vari-focal Lens only)
After opening the LED cover,
① B y turning the "Tele-Wide" knob,
you can access a range of focal
lengths within specified limits.
② S ince then, by turning the "Near-
Far" knob, you can set the focus
toward the wanted object.
(4) Re-assemble the camera.
<Ceiling mount>
Ø3.5 Ø30
MOUNT HOLE PLATE(STICKER)
Put a sticker on the ceiling and make holes
according to the spots marked on a sticker
SCREW Tp1 4X25 3EA
<Wall mount>
MOUNT HOLE PLATE(STICKER)
Put a sticker on the wall and make holes
according to the spots marked on a sticker
SCREW Tp1 4X25 3EA
2. Pipe application
(1) Remove the screw for fixing a cable on the bottom of the base.
(2) Open the DOME COVER.
(3) Remove the TAP COVER and place the cables there.
(4) After distributing cables, use the TEPLON tape to wipe the pipe.
(5) Combine the pipe to the base.
<Caution> I f you don't wipe TEFLON tape on pipe, it might cause
1
w
2
N
T
F
3. Camera angle adjustment :
(1) Pan adjustment : Grasp the disk of camera and then adjust
direction to the right or left(-160°~190°)
(2) Tilt adjustment : Grasp the camera holder and then adjust
direction to the up or down(6°~ 90°)
(3) Roll adjustment : Grasp the camera holder and then rotate
(-178°~178°)
<Caution> I f you try to adjust the camera out of limited angle, it might
Ø30
Ø3.5
◐ DIMENSION
troubles on water-resistant.
PIPE
TAP COVER
CABLE FIXING SCREW
TEFLON TAPE
DOME COVER
cause troubles and damage to camera.
LED COVER
DISK
R
L
U
CAMERA HOLDER
ROTATION
D
Ø100
Ø150.5 Ø129
CABLE
