  • Page 1 LX116 PIXMOVE 12 - 12 X 8 W RGBW LED WITH TILT MOVEMENT USER MANUAL...
  • Page 2 LX116 terminator How to turn the controller line from 3-pins into 5-pins (plug and socket). V. 02 – 22/10/2014 ©Velleman nv...

  • Page 3: Safety Instructions

    Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Luxibel ® ! Please read the manual thoroughly before bringing this device into service.

  • Page 4: General Guidelines

    The PIXMOVE 6 is a newly designed motorized linear LED luminaire in the Prolights range. It is conceived to achieve high-brightness and versatility. The LX116 has 6 x 8 W RGBW LEDs that can be controlled in pixel-to-pixel mode, with 250° motorized tilt inclination through DMX. Several pre-programmed dynamic effects are available in the internal memory, which can be combined with multiple reproduction methods and colour macros.

  • Page 5: Mounting And Connection

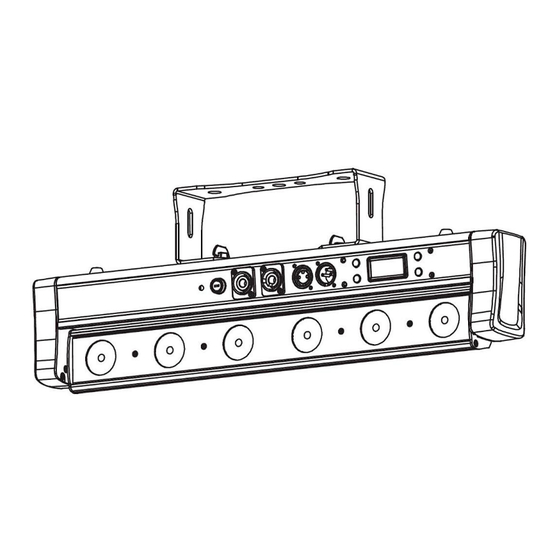

    LX116 Overview Refer to the illustrations on page 2 of this manual. mounting bracket XLR output fuse XLR input powerCON output LCD display powerCON input control buttons Mounting and Connection Choose a suitable mounting spot. Mount the device in the desired angle using the included bracket.

  • Page 6: Operation

    LX116 Operation The device can be used in the following modes:  stand-alone mode  master/slave  with a DMX-512 controller. Control Panel Access the control panel functions using the four panel buttons located around the display: Button Function ...

  • Page 7: Standalone Mode

    LX116 Tilt Offset Tilt function Tilt M Reverse tilt function Encoder Encoder on/off Stand-Alone Mode The device starts running in stand-alone mode after connection to the mains. This mode allows you to use the device without controller. Connect the device to the mains to switch it on.
  • Page 8 LX116 Start addresses Use the table below to define the correct address. The table shows the settings for units 1 to 3. Apply the same principle for the other units. Example: Channel mode First unit Second unit Third unit Highest start address...

  • Page 9: Cleaning And Maintenance

    LX116 auto speed from slow to fast dimmer from 0-100 % tilt from 0-240° tilt speed from fast to slow 26-channel mode channel from function description red 1 from 0-100 % green 1 from 0-100 % blue 1 from 0-100 %...

  • Page 10: Technical Specifications

    (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.luxibel.com. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv.
  • Page 11 Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations.
