Luxibel LX119 User Manual

Smart hexa led par 1
Hide thumbs
Table of Contents

Advertisement

Quick Links

LX119

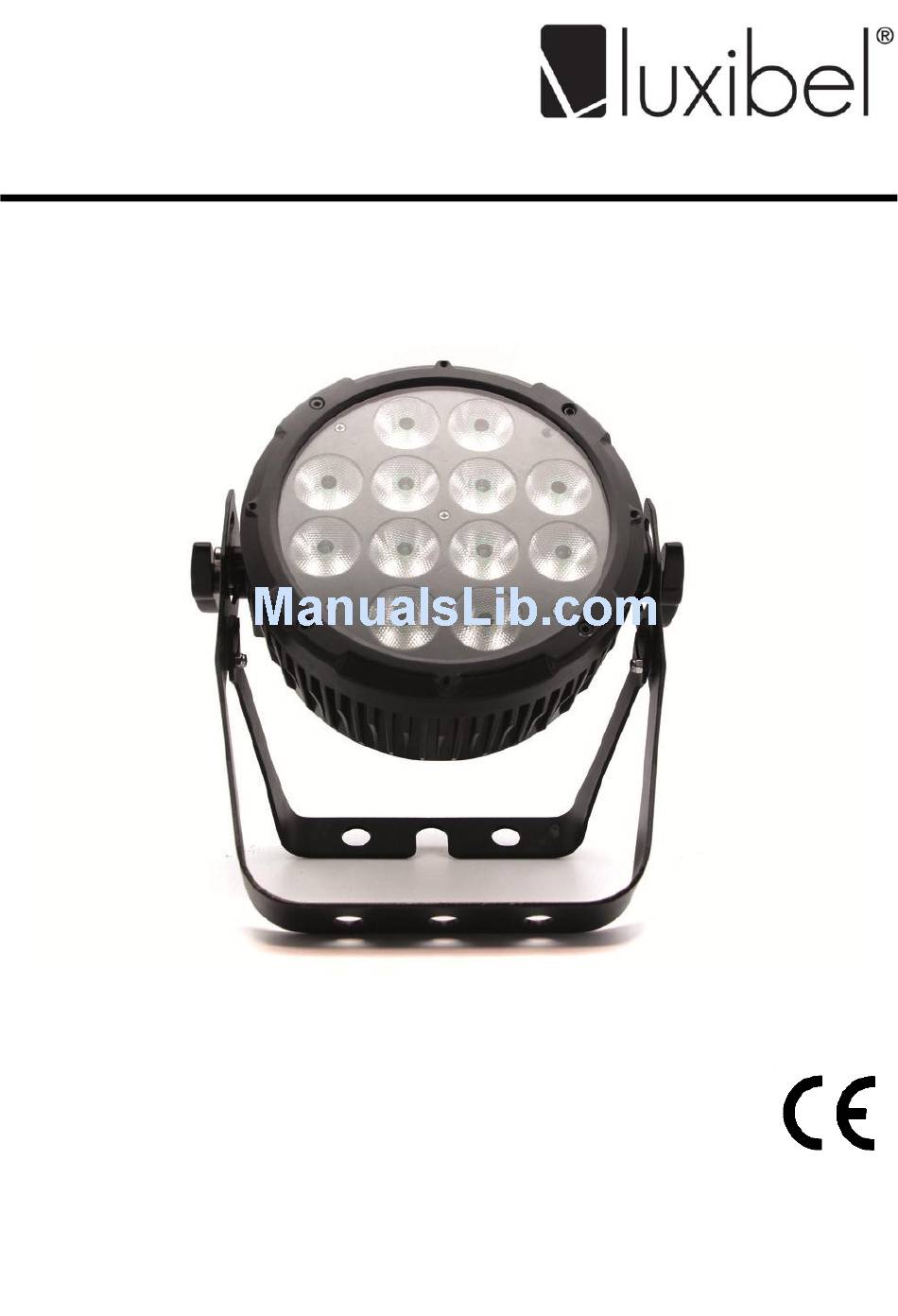

SMART HEXA LED PAR 12 X 12 W - RGBWAP LED
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Luxibel LX119

Summary of Contents for Luxibel LX119

  • Page 1 LX119 SMART HEXA LED PAR 12 X 12 W - RGBWAP LED USER MANUAL...
  • Page 2 LX119 V. 01 – 19/06/2014 ©Velleman nv...

  • Page 3: Safety Instructions

    Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Luxibel ® ! Please read the manual thoroughly before bringing this device into service.

  • Page 4: Installation

    LX119 Protect this device from shocks and abuse. Avoid brute force when operating the device.  Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified people. Any damage that may occur will most probably be due to unprofessional use of the device.

  • Page 5: Operation

    LX119 without deforming.  The installation must always be secured with a secondary attachment e.g. a safety cable.  Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.

  • Page 6: Master/Slave Mode

    LX119 Auto Mode If no DMX control signal is present at the DMX input [3 or 4], the unit independently runs through its show programme (if the blackout mode is switched off). Press MENU until <AUTO> appears on the display. Press ENTER to confirm.

  • Page 7: Connection Of The Dmx Line

    LX119  When all devices have the same address, all the units will “listen” to the control signal on one particular channel. In other words: changing the settings of one channel will affect all devices simultaneously. If you set individual addresses, each device will “listen” to a separate channel number.
  • Page 8 LX119 6-channel mode: channel from description red 0-100 % green 0-100 % blue 0-100 % amber 0-100 % white 0-100 % purple 0-100 % 8-channel mode: channel from description dimmer 0-100 % red 0-100 % green 0-100 % blue 0-100 %...

  • Page 9: White Balance

    LX119 no function auto programme 1 auto programme 2 auto programme 3 auto programme 4 auto programme 0 (auto 1-4) auto speed slow-fast preset dimmer speed from control panel dimmer speed mode off dimmer speed mode 1 (fast) dimmer speed mode 2 (middle) dimmer speed mode 3 (slow) 7.11 White Balance...

  • Page 10: Cleaning And Maintenance

    (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.luxibel.com. The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv.
  • Page 11 Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations.
