Panasonic NV-DS30EG Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Camcorder
  5. NV-DS30EG
  6. Service manual

Panasonic NV-DS30EG Service Manual

Digital video camcorder
Hide thumbs Also See for NV-DS30EG:
Table of Contents

Advertisement

Quick Links

Digital Video Camcorder
NV-DS30EG
NV-DS30EGM
NV-DS30B
NV-DS30EGE
NV-DS30EN
NV-DS30ENT
NV-DS30ENC
NV-DS30A
VOL.2
© 2002 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. VMD0202008C8
Unauthorized
copying
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV-DS30EG and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic NV-DS30EG

Summary of Contents for Panasonic NV-DS30EG

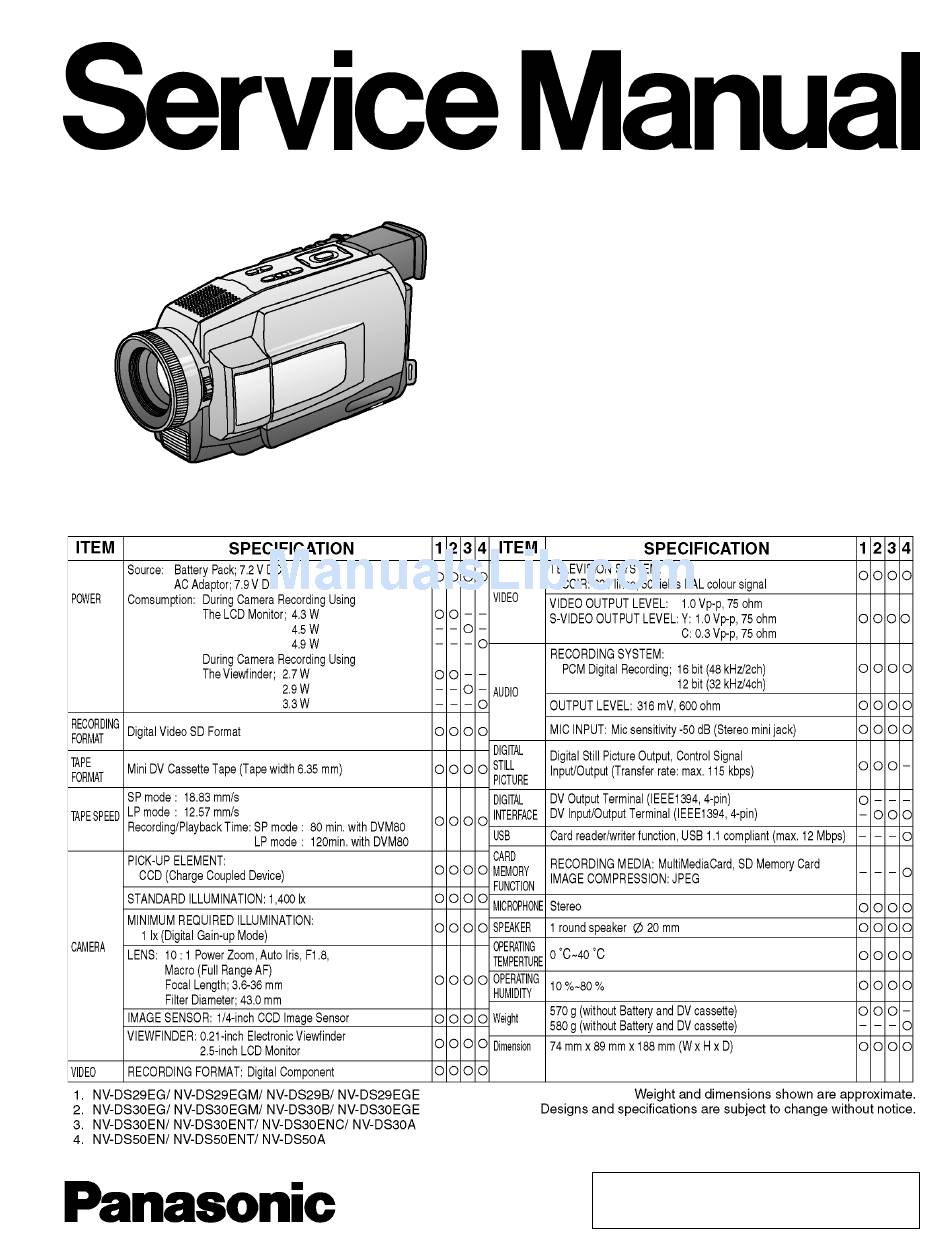

  • Page 1 ORDER NO. VMD0202008C8 Digital Video Camcorder NV-DS30EG NV-DS30EGM NV-DS30B NV-DS30EGE NV-DS30EN NV-DS30ENT NV-DS30ENC NV-DS30A VOL.2 © 2002 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.

  • Page 2: Table Of Contents

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A CONTENTS Page Page 1 SERVICE NOTES (PLEASE READ) 3 CIRCUIT BOARD LAYOUT 1.1. SERVICE NOTES 3.1. MAIN C.B.A. 2 SCHEMATIC DIAGRAMS 4 BLOCK DIAGRAMS 2.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT...

  • Page 3: Service Notes (Please Read)

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 1 SERVICE NOTES (PLEASE READ) 1.1. SERVICE NOTES 1.1.1. EXTENSION CABLES FOR SERVICE POSITION Using the following Extension Cables, place the unit as shown for check and service.
  • Page 4 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Fig. 1...

  • Page 5: Schematic Diagrams

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 2 SCHEMATIC DIAGRAMS 2.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES 3. Parts marked "PT" are not used in any models included 1. Important safety notice in this service model.

  • Page 6: Main Schematic Diagrams

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 2.2. MAIN SCHEMATIC DIAGRAMS NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN I SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 7 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN II SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 8 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN III SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 9 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN IV SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 10 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN V SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 11 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN VI SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 12 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN VII SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 13 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN VIII SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 14 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN IX SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 15 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN X SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 16 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN XI SCHEMATIC DIAGRAM (M, N, O) be sure to use the part number listed in the parts list.
  • Page 17 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN XII SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 18 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN XIII SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 19 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN XIV SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.
  • Page 20 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: For placing a purchase order of the parts, NOTE: NOTE: MAIN XV SCHEMATIC DIAGRAM be sure to use the part number listed in the parts list.

  • Page 21: Voltage Chart

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 2.3. VOLTAGE CHART NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MAIN C.B.A. (CAMERA SECTION) MAIN C.B.A. (POWER/VIDEO/AUDIO/COLOR EVF SECTION)
  • Page 22 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, REFER TO BEGINNING OF SCHEMATIC SECTION. MAIN C.B.A. (SYSTEM CONTROL/SERVO SECTION) COMPARISON CHART MODE PLAY MODE...

  • Page 23: Circuit Board Layout

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 3 CIRCUIT BOARD LAYOUT 3.1. MAIN C.B.A. COMPARISON CHART MAIN C.B.A. LSEP8165P1 (A,B,C,D) / LSEP8165Q1 (E,F,G,H) / LSEP8165R1 (I,J,K,L) / LSEP8165S1 (M,N,O) OF MODELS & MARKS...
  • Page 24 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Types of IC6001 COMPARISON CHART MAIN C.B.A. LSEP8165P1 (A,B,C,D) / LSEP8165Q1 (E,F,G,H) / LSEP8165R1 (I,J,K,L) / LSEP8165S1 (M,N,O) OF MODELS & MARKS M32121FCAWG Part number...

  • Page 25: Block Diagrams

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 4 BLOCK DIAGRAMS CCD DRIVE BLOCK DIAGRAM REC VIDEO(CAMERA) SIGNAL CCD C.B.A. MAIN C.B.A. IC601 (CCD) IC501 (CAMERA SIGNAL PROCESS) Q601 DOUBLE FP301 10BIT IMAGE...
  • Page 26 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A VIDEO SIGNAL PROCESS I BLOCK DIAGRAM REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL MAIN C.B.A. IC3001 (CAMERA DIGITAL SIGNAL PROCESS/SHUFFLING)
  • Page 27 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A VIDEO SIGNAL PROCESS II BLOCK DIAGRAM REC VIDEO SIGNAL PB VIDEO SIGNAL REC AUDIO SIGNAL PB AUDIO SIGNAL MAIN C.B.A. CYLINDER UNIT IC3201 (FORMATTING/EQUALIZER) IC5001 (HEAD AMP)
  • Page 28 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A ANALOG VIDEO I/F BLOCK DIAGRAM REC VIDEO SIGNAL PB VIDEO SIGNAL REAR C.B.A. MAIN C.B.A. IC3501 (SIGNAL INTERFACE) IC3503 (SW) IC3504 JK7001 111 . B1201 VIDEO .
  • Page 29 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A AUDIO SIGNAL PROCESS BLOCK DIAGRAM REC AUDIO SIGNAL PB AUDIO SIGNAL MAIN C.B.A. MICROPHONE C.B.A. IC4301(AUDIO I/F) ECM UNIT R4837 (WITHOUT EXT MIC) NOT USED...
  • Page 30 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A SYSTEM CONTROL BLOCK DIAGRAM MAIN C.B.A. SIDE CASE L UNIT IC6001 (SYSTEM MICROCONTROLLER) PWM BIAS CONTROL PWM BIAS CONTROL +3.3V TO AF HALL AMP GAIN CONTROL...

  • Page 31: Servo Block Diagram

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A SERVO BLOCK DIAGRAM CYLINDER UNIT MAIN C.B.A. IC2001 (CYLINDER/CAPSTAN MOTOR DRIVE) IC3201 (FORMATTING/EQUALIZER) 5, 6 CYLINDER CYLINDER CYLINDER SOFT MOTOR TIMING START MOTOR MOTOR SWITCHING...

  • Page 32: Af Block Diagram

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A AF BLOCK DIAGRAM MAIN C.B.A. LENS UNIT IC6001 (SYSTEM MICROCONTROLLER) FP701 (FROM IC6001 (211)) ZOOM ENCODER HALL AMP GAIN CONTROL FROM FP701 (FROM IC6001 (213))

  • Page 33: Evf Block Diagram

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A EVF BLOCK DIAGRAM VIDEO SIGNAL (REC & PB) MAIN C.B.A. EVF BACKLIGHT C.B.A. IC901 (EVF SIGNAL PROCESS) EVF LCD PANEL UNIT FP952 FP951 FP952 FP951...
  • Page 34 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A POWER SUPPLY BLOCK DIAGRAM REAR C.B.A. MAIN C.B.A. Q1023 EVF/LCD +3V D1005 Q1021 L1012 CAM +3.2V IC1003 SHUNT REGULATOR UNREG B1201 (TO IC6001(253)) BATTERY (T)

  • Page 35: Replacement Parts Lists

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 5 REPLACEMENT PARTS LISTS BEFORE REPLACING PARTS, READ THE FOLLOWING: IC6001 may have a short life. · When replacing IC6001 (M32121FCAWG) with IC6001 5.1. REPLACEMENT NOTES (M32121MCA124), be sure to move resistor (Ref No.

  • Page 36: Electrical Replacement Parts List

    NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A 5.2.1. MAIN C.B.A. 5.2. ELECTRICAL REPLACEMENT PARTS LIST INTEGRATED CIRCUITS Ref. Part No. Part Name & Description Remarks IC301 MN52A4 IC, LOGIC E.S.D. IC302 MN31121SA-E1 IC, LOGIC E.S.D.
  • Page 37 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks IC6010 C0CBCAC00024 IC, CMOS STANDARD LOGIC E.S.D. Q1104 2SD2216J08...
  • Page 38 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D1102 B0ACCK000005 DIODE SI CHIP R449 ERJ2GEJ105X MGF CHIP 1/16W 1M ( M,N,O )
  • Page 39 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R912 ERJ2GE0R00X MGF CHIP 1/16W 0 R1078 ERJ2GEJ221X MGF CHIP 1/16W 220...
  • Page 40 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R3103 ERJ2GEJ680X MGF CHIP 1/16W 68 R3559 ERJ2GEJ222X CHIP 1/16W 2.2K...
  • Page 41 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R6032 ERJ2GEJ473X MGF CHIP 1/16W 47K R6105 ERJ2GEJ222X MGF CHIP 1/16W 2.2K...
  • Page 42 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C303 ECJ1VF1A105Z C CHIP 10V 1UF C1016 ECJ0EB1E472K C CHIP 25V 4700PF...
  • Page 43 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2024 ECJ0EF1C104Z C CHIP 16V 0.1UF C3259 ECJ0EB1C103K C CHIP 16V 0.01UF...
  • Page 44 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C4310 ECJ2YB1A105K C CHIP 10V 1UF L402 J0JBC0000025 FERRITE BEAD CHIP ( M,N,O )
  • Page 45 NV-DS30EG / NV-DS30EGM / NV-DS30B / NV-DS30EGE / NV-DS30EN / NV-DS30ENT / NV-DS30ENC / NV-DS30A Ref. Part No. Part Name & Description Remarks X3001 H0A245500003 CRYSTAL OSCILLATOR X6002 LSSX0071 CRYSTAL OSCILLATOR X6003 LSSX0023 CRYSTAL OSCILLATOR PIN HEADERS Ref. Part No.
