DutchWest 2477 Service Manual

Dutchwest cast non- catalytic woodstoves
Hide thumbs Also See for 2477:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: Homeowner's Installation and Operating Manual

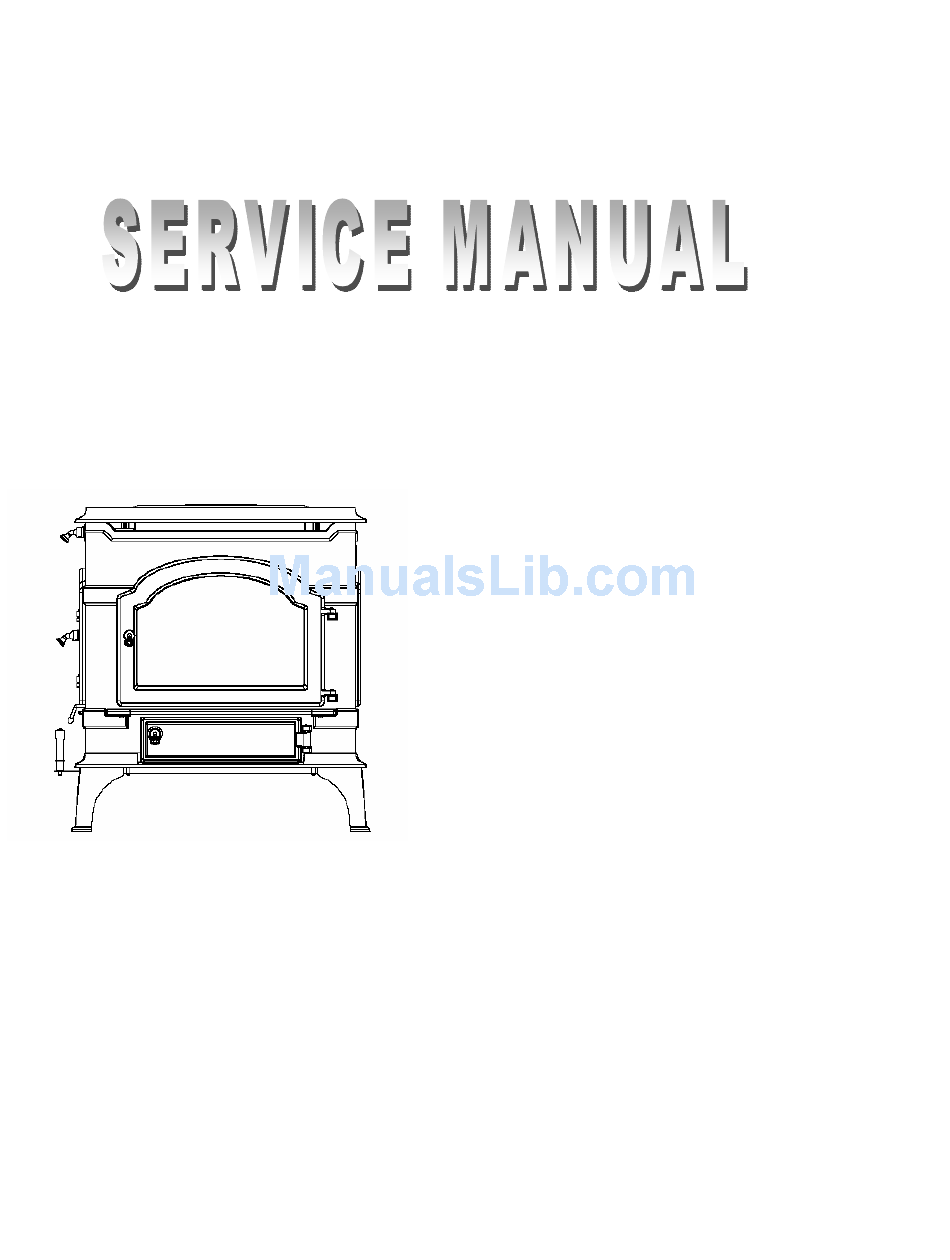

For the
DUTCHWEST CAST
NON- CATALYTIC WOODSTOVES
MODELS 2477, 2478 & 2479
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2477 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DutchWest 2477

Summary of Contents for DutchWest 2477

  • Page 1 For the DUTCHWEST CAST NON- CATALYTIC WOODSTOVES MODELS 2477, 2478 & 2479...
  • Page 2 SERVICE PROCEDURES 2477, 2478 & 2479 Dutchwest Cast Non-Catalytic Woodstoves **Wear gloves, a dust mask and protective eyewear when servicing a stove. ** Disassembling the Interior Components 1. Locate the two Phillips screws holding the rear shroud to the rear of the stove. Remove the shroud.
  • Page 3 5. With a Phillips screwdriver, remove the right brick support and the right end refractory and insulation panel. FIG. 5 Remove Side Refractory 6. If the Medium or Large Model, lift out the lower load door refractory which sites on the inner bottom against the left side below the load door.
  • Page 4 9. Lift up and out to remove the upper fireback refractory. Do not let the lower refractory panel fall forward. FIG. 10 Remove Upper Refractory FIG. 9 Upper & Lower Fireback Refractories 10. Pull forward on the lower fireback refractory to remove it.
  • Page 5 Disassembling the Exterior Components 1. Take off the flue collar by removing the two nuts and bolts. FIG. 14 Remove Flue Collar 2. Remove the front and side load doors. 3. Remove the outer top. Locate the two nuts with washers attached to two threaded rods in the underside of the inner top holding the top on.
  • Page 6 6. Locate the two bolts and washers holding the inner top to the sides and remove them. Lift out the inner top. FIG. 18 Remove Inner Top 7. Locate the two side bolts and one in the center/bottom of the front. Remove all three and lift the front off. FIG.
  • Page 7 10. Locate the three bolts holding the inner bottom to the bottom and remove. Lift off the inner bottom. FIG. 22 Remove Inner Bottom 11. Unbolt and remove the four legs FIG. 23 Outer Bottom With Legs 12. For complete assembly, reverse the order of disassembly.
