- Page 1 DVR5000-3U Series UICK TART UIDE Digital Video Recorder...
- Page 2 THIS QUICK START GUIDE WILL PROVIDE INSTRUCTIONS FOR CONFIGURING THE NVR (SERVER) AND VIEWING VIDEO FROM THE COMMAND CENTER APPLICATION (CLIENT SOFTWARE). INSTEK DIGITAL SEPARATES THE CLIENT AND SERVER INTO TWO DISTINCT ENTITIES. THIS SETUP ALLOWS PLACEMENT OF THE SERVER IN A SECURE, TAMPER-PROOF LOCATION, FURTHER ENHANCING YOUR SECURITY PROTOCOLS.
-
Page 3: Box Contents
Quick Start Guide DVR5000-3U Series BOX CONTENTS MatriVideo DVR x 1 • HDD Tray x 12 • Document CD x1 • Quick Start Guide x 1 • Software CD (CCOne) x 1 • Screws (Set) x 1 • Power Cable •... -
Page 4: Front Panel

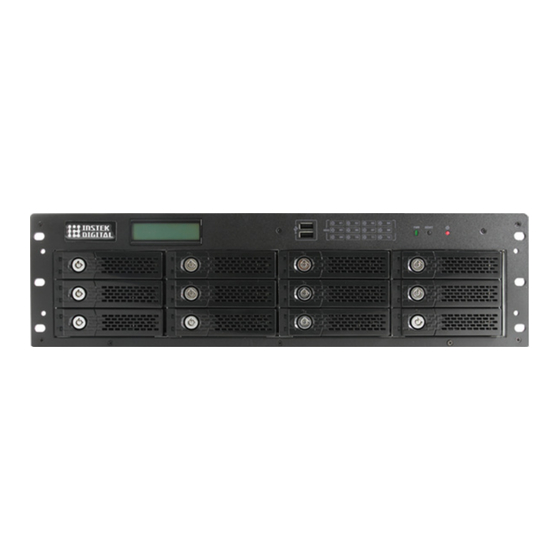

Quick Start Guide DVR5000-3U Series Front Panel Power LED Reset button LCD display Power button Rear Panel (5416) BNC ports for analog VGA port Ethernet PS/2 video input Power socket Com ports Com port Speaker out / RCA ports for analog... -
Page 5: Step 1: Install Hard Drives
Quick Start Guide DVR5000-3U Series STEP 1: INSTALL HARD DRIVES Insert HDD into tray and use four screws to secure it in place. Press the key hole of the HDD tray and push it up to unlock the HDD tray. Insert the HDDs (with the trays) into their slots. -
Page 6: Step 2: Power On The Dvr
Quick Start Guide DVR5000-3U Series STEP 2: POWER ON THE DVR Connect the power cord. Power on the DVR from the front panel. The booting process will take a few minutes to complete. Once the boot-up is complete, the following information will display on the LCD panel: System Version, IP Address, Network Connectivity Information, and the System Date &... - Page 7 Quick Start Guide DVR5000-3U Series The DVR uses an Embedded Linux Operating System. Once the keyboard and monitor are connected, you will see the login prompt on the monitor. The DVR’s default username is: root and the password is: id.
- Page 8 Quick Start Guide DVR5000-3U Series Change the Time Zone: System Configuration > Time Zone Change > Select Continent or Area > Select Country/ Region. Press to confirm. Change the Date/Time: System Configuration > Date/Time Change > Press Proceed to stop the process and wait for a few seconds >...
- Page 9 Quick Start Guide DVR5000-3U Series STEP 5: SUBSCRIBE THE DVR Run the Command Center software. During the first run, you will be asked to subscribe (or add) the DVR to the video recorder subscription list. Enter the IP address, Command Port, Live Port and the Playback Port of the DVR.
-
Page 10: Step 7: Setting Up The Cameras
Quick Start Guide DVR5000-3U Series STEP 7: SETTING UP THE CAMERAS Right-click on the NVR (labeled by its IP address) in the camera tree panel and click Setup. When asked to login the default username is admin and the Video Recorder password is id. -
Page 11: Step 8: View The Video
Quick Start Guide DVR5000-3U Series In the IP Camera table, type a descriptive Camera Name. Select the Camera Type. Type the IP Address of the IP cameras. Domain names are supported if available on the surveillance network. The Port number is dependent on the IP camera. Ch refers to the channel number of the video server. - Page 12 Here at Instek Digital – we are always standing by to provide you the best service and support. Please do not hesitate to contact us for anything. For general information – please call us at one of the following worldwide office:...
