SonoSite PowerPack Assembly Instructions

PowerPack
Assembly Instructions
The PowerPack installs on either the H-Universal™ or
V-Universal™ stand.

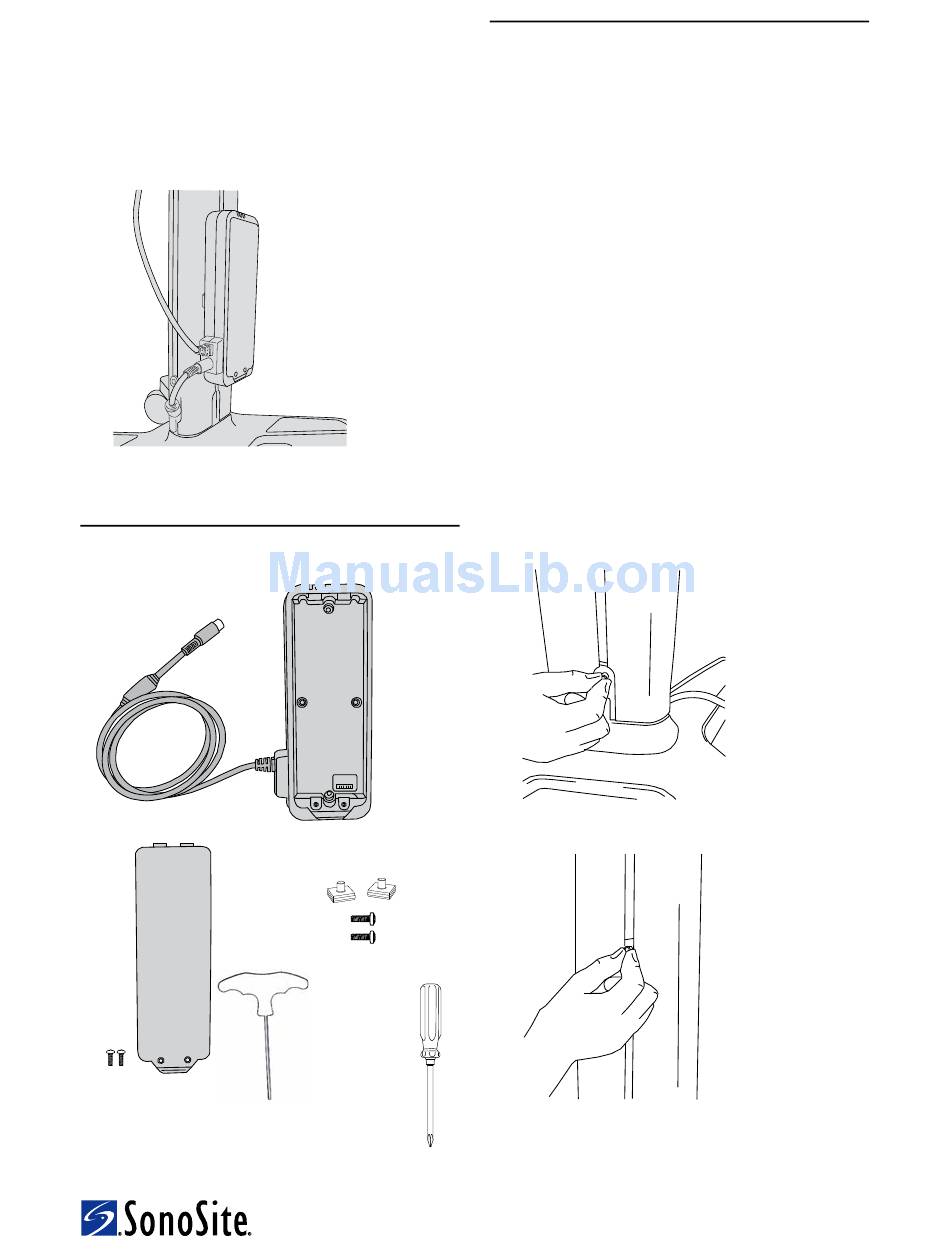

Figure 1 Installed PowerPack (vertical
installation on back of stand)
Contents
Housing
Nut plates (2)
& Allen-head
screws (2)
Battery &
Phillips-head
screws (2)
Assembly
1 Determine orientation and placement.
1
2
2 Insert nut plates on stand.
1
T-handled
hex
wrench
.
Phillips screw
driver
2
3
Determine the optimal orientation for installing
the PowerPack (See Figure
• Vertical orientation is recommended and
helps protect the PowerPack from possible
impact.
• Horizontal orientation is acceptable if other
accessories are present, providing insufficient
space for vertical installation.
Determine which side of the column on which to
install the PowerPack: front or back.
Back installation may help protect the PowerPack,
but consider issues such as cord placement (See
Figure 7) and available space on the column.
Insert a nut plate into the groove at the lower back
(or lower front, for front installation) of the stand
column, and slide it a few inches up the column.
See Figure 2 and Figure 3.
The flat, rubber side of the plate faces toward the
column.
Figure 2 Insert nut plate
Figure 3 Slide nut plate up the column.
Insert the second nut plate, and slide it up the
column.
Space the nut plates so that they align with the
two holes on the housing. (See
4):
Figure 4.)
