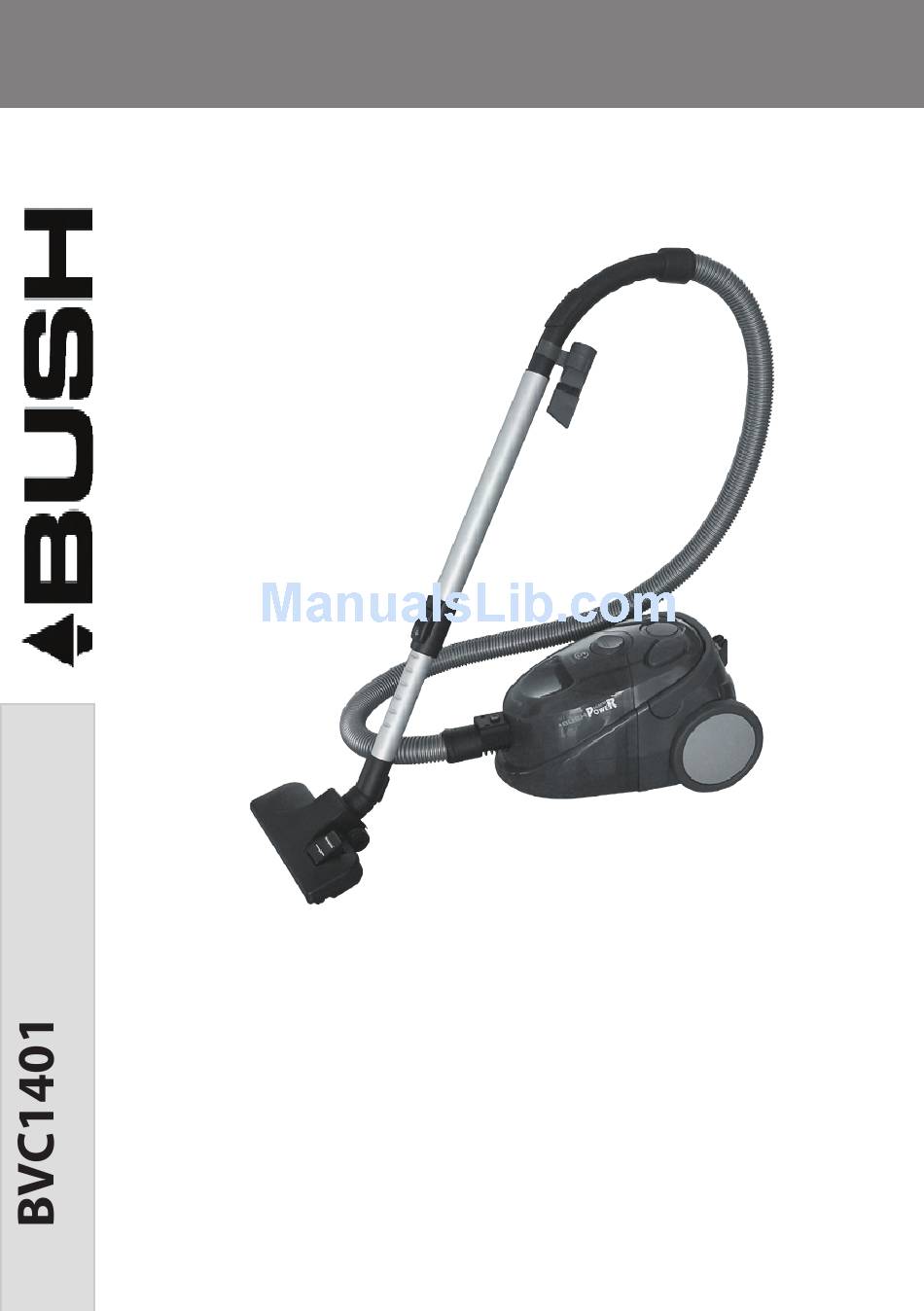

Page 1: Vacuum Cleaner
NSTRUCTION ANUAL Cylinder Bagless Vacuum Cleaner BUSH Helpline: 1800 509 394 Australia BUSH Helpline: 0800 450 259 New Zealand... -
Page 2: Introduction
Introduction Thank you for purchasing this Bush product which has been designed and manufactured to give you many years of trouble- free service. You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents Introduction................. 2 Support....................2 Safety is important ................ 2 Contents................3 Specification............... 5 Model Number.................. 5 Power Supply ................... 5 Filtration....................5 Features....................5 Safety Instructions ............6 Power Source ................... 6 Using the Vacuum Cleaner............6 Transporting your vacuum............7 Servicing .................... - Page 4 Troubleshooting............... 18 Thermal cut-out................18 Disposal................18 Guarantee ................. 19...
-
Page 5: Specification
Specification Model Number • BVC1401 Power Supply • Power supply 240V AC 50Hz • 1400W maximum power output Filtration • 5 Stage filtration Features • 1400 watt cylinder bagless vacuum cleaner • Aluminum telescopic tube • Floor brush • Crevice tool/brush •... -
Page 6: Safety Instructions
Safety Instructions This product should never be left unattended when connected to the mains supply. Power Source Your vacuum cleaner requires a 240V 50Hz supply. Do not use any other supply. Using the Vacuum Cleaner • Do not vacuum wet surfaces, pick up wet objects or use in wet conditions. -
Page 7: Transporting Your Vacuum
• With the exception of filters and the dust container, there are no user-serviceable parts in the vacuum cleaner. • Contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand if you are in any doubt about the installation, operation or safety of your vacuum cleaner. -
Page 8: Parts Identification
Parts Identification 1 Hose handle Hose connector release button 2 Suction control 10 Dust container 3 Crevice tool storage fixings 11 Transportation wheel 4 Crevice tool/brush 12 Power On/Off button 5 Aluminum telescopic tube 13 Floor brush storage catch 6 Extension locking catch 14 Carry handle 7 Floor brush 15 Cable rewind button... -
Page 9: Extension Tube
Extension Tube This vacuum cleaner incorporates an Locking adjustable extension tube. catch To extend the tube, push the locking catch forward and pull the tube to the desired length. Release the locking catch to lock the tube into position. Crevice tool/brush The crevice tool can be used to clean hard to reach places. -
Page 10: Floor Brush
Floor brush Push the extension tube onto the hose handle, then fit the floor brush to the extension tube. Alternatively, the floor brush can be attached directly to the handle if preferred. Fit the floor brush to the end of Floor type the extension tube. -
Page 11: Using Your Vacuum Cleaner
Using Your Vacuum Cleaner This vacuum cleaner has been designed to operate horizontally. Do not operate in a vertical position as this will block the exhaust and cause overheating. Preparing for use Carefully remove your vacuum cleaner from the box.You may wish to store the packaging for future use.This unit is supplied with the dust container fitted. -
Page 12: Switching On
Switching on 1. Pull the power cable to the desired length. When you are nearing at the maximum, a yellow marker will be visible on the cable. A red marker indicates that you have reached the maximum cable ength. O NOT ATTEMPT TO PULL THE POWER CABLE BEYOND THE RED MARKER 2. -
Page 13: Cord Rewind
Cord rewind WARNING AKE GREAT CARE WHEN USING THE CORD REWIND BUTTON PARTICULARLY WHEN CHILDREN OR PETS ARE NEARBY AS THE ‘ ’ . REWIND ACTION MAY CAUSE THE CORD TO WHIP Caution Always ensure that your vacuum cleaner is unplugged from the mains supply before using the cord rewind button. -
Page 14: Emptying The Dust Container
Emptying the dust container When the dust container look full or the cleaner loses suction, the dust container will need to be emptied as follows: 1. Unplug the cleaner and open the dust container by pushing in the release button. 2. -
Page 15: Clearing Blockages
Clearing blockages If the suction still seems to be lower than expected after the dust container bag has been emptied, there may be a blockage in one of the tubes or attachments. Unplug the cleaner and check the following areas for blockages: •... -
Page 16: Service And Maintenance
Service and Maintenance Depending on usage you will need to periodically clean the filters. Refer to the instructions in the following sections. Caution The dust container and filters must be fitted before the vacuum cleaner is used, to avoid damaging the motor. Dust Container Filter Replacement The dust container filter should be cleaned regular and replaced every 6 months or when required. -
Page 17: Cleaning The Exhaust Filter
DO NOT force dry. 3. Replace the filter and dust container. • If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand. Cleaning the Exhaust Filter The exhaust filter should be cleaned regularly and replaced every six to nine months depending on usage. -
Page 18: Troubleshooting
6 If it still does not work, wait another 20 minutes and try again. If your cleaner is still not functioning correctly, please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand. -
Page 19: Guarantee
If guarantee is required please contact the BUSH helpline on 1800 509 394 in Australia or 0800 450 259 in New Zealand. Have your receipt of purchase on hand. - Page 20 BUSH Helpline: 1800 509 394 Australia BUSH Helpline: 0800 450 259 New Zealand PO BOX 6287, SILVERWATER NSW1811 www.bushaustralia.com.au...
