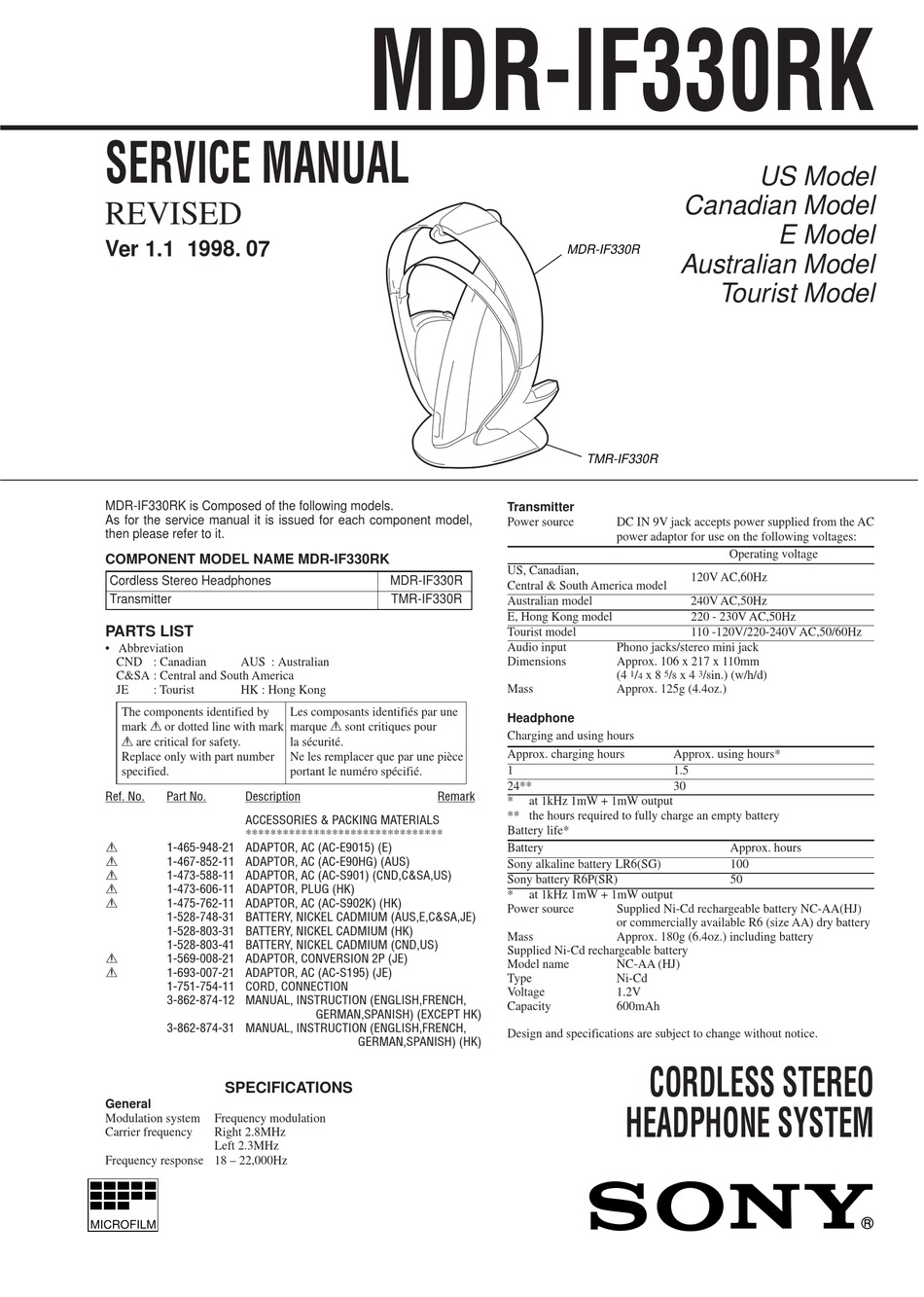

Sony MDR-IF330RK Service Manual

SERVICE MANUAL
REVISED
Ver 1.1 1998. 07
MDR-IF330RK is Composed of the following models.
As for the service manual it is issued for each component model,
then please refer to it.
COMPONENT MODEL NAME MDR-IF330RK
Cordless Stereo Headphones

Transmitter

PARTS LIST

• Abbreviation
CND : Canadian AUS : Australian
C&SA : Central and South America
JE : Tourist HK : Hong Kong
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description
ACCESSORIES & PACKING MATERIALS
********************************
! 1-465-948-21 ADAPTOR, AC (AC-E9015) (E)
1-467-852-11 ADAPTOR, AC (AC-E90HG) (AUS)
!
! 1-473-588-11 ADAPTOR, AC (AC-S901) (CND,C&SA,US)
1-473-606-11 ADAPTOR, PLUG (HK)
!
! 1-475-762-11 ADAPTOR, AC (AC-S902K) (HK)
1-528-748-31 BATTERY, NICKEL CADMIUM (AUS,E,C&SA,JE)
1-528-803-31 BATTERY, NICKEL CADMIUM (HK)
1-528-803-41 BATTERY, NICKEL CADMIUM (CND,US)
! 1-569-008-21 ADAPTOR, CONVERSION 2P (JE)
1-693-007-21 ADAPTOR, AC (AC-S195) (JE)
!
1-751-754-11 CORD, CONNECTION
3-862-874-12 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
3-862-874-31 MANUAL, INSTRUCTION (ENGLISH,FRENCH,

SPECIFICATIONS

General

Modulation system Frequency modulation
Carrier frequency Right 2.8MHz
Left 2.3MHz
Frequency response 18 – 22,000Hz
MICROFILM
MDR-IF330RK
MDR-IF330R
TMR-IF330R
Les composants identifiés par une
marque ! sont critiques pour
la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Remark
GERMAN,SPANISH) (EXCEPT HK)
GERMAN,SPANISH) (HK)
MDR-IF330R
TMR-IF330R
Transmitter
Power source DC IN 9V jack accepts power supplied from the AC
power adaptor for use on the following voltages:
US, Canadian,
Central & South America model
Australian model
E, Hong Kong model
Tourist model
Audio input Phono jacks/stereo mini jack
Dimensions Approx. 106 x 217 x 110mm
(4 1 / x 8 5 / x 4
4 8
Mass Approx. 125g (4.4oz.)

Headphone

Charging and using hours
Approx. charging hours Approx. using hours*
1 1.5
24** 30
* at 1kHz 1mW + 1mW output
** the hours required to fully charge an empty battery

Battery life*

Battery
Sony alkaline battery LR6(SG)
Sony battery R6P(SR)
* at 1kHz 1mW + 1mW output
Power source Supplied Ni-Cd rechargeable battery NC-AA(HJ)
or commercially available R6 (size AA) dry battery
Mass Approx. 180g (6.4oz.) including battery
Supplied Ni-Cd rechargeable battery
Model name NC-AA (HJ)
Type Ni-Cd
Voltage 1.2V
Capacity 600mAh
Design and specifications are subject to change without notice.
CORDLESS STEREO

HEADPHONE SYSTEM

US Model
Canadian Model
E Model
Australian Model
Tourist Model
Operating voltage
120V AC,60Hz
240V AC,50Hz
220 - 230V AC,50Hz
110 -120V/220-240V AC,50/60Hz
3 / in.) (w/h/d)
8
Approx. hours
100
50
