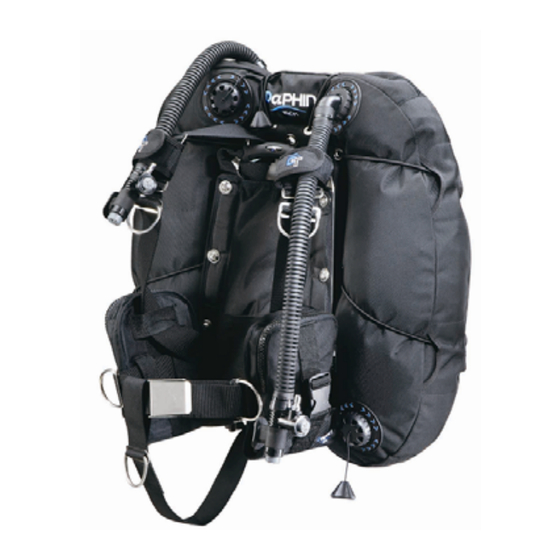

BUOYANCY COMPENSATOR OWNER'S MANUAL
JT-30D single tank BCD
JT-31D single tank BCD
JT-40D single tank BCD
JT-41D single tank BCD
JT-50D twin tank BCD
JT-51D twin tank BCD
JT-65 EXP. double-bladder twin tank BCD
JT-65 EXP. double-bladder twin tank BCD
EN1809
0120
JT-30H single tank BCD
JT-31H single tank BCD
JT-40H single tank BCD
JT-41H single tank BCD
JT-50H twin tank BCD
JT-51H twin tank BCD
Ver. E991019H
CONTENTS
................................................ ..................1
................................................ ..................2
Back plate ..................................................................... ......3
Harness ............................................................................... 4
Crotch strap ........................................................................ 5
Air cell .............................................................................. 5
Single tank adaptor and tank cam bands ................................... 7
Stainless steel twin tank bands ................................................ 7
Weight pocket ....................................................................... 8
Back plate pouch (and fitting hardware) .................................... 8
BCD handle ........................................................................ 9
Basic harness back plate system ............................................. 9
Deluxe harness back plate system ........................................... 14
Harness adjustments ........................................................ ....21
Weight pocket installation....................................................... 21
Attaching wing and tank adaptor for single tank BCD ................ 22
Attaching your single tank BCD to a scuba tank...........................24
Wing and tank attachment for twin tank BCD ............................. 26
Back plate pouch and fitting hardware ...................................... 30
BCD handle .................................................... ................... 31
.................................................................32
Power inflator ...................................................................... 32
Attaching low pressure inflator hose ......................................... 33
Using the weight pockets ......................................................... 33
Over-pressure exhaust valve .................................................. 34
Donning the BCD ................................................................. 34
Taking off the BCD ......................................................... .......35
BCD care and storing ............................................................ 35
......................................................................36
........................... 1
................................9
.............. 36
......................37
