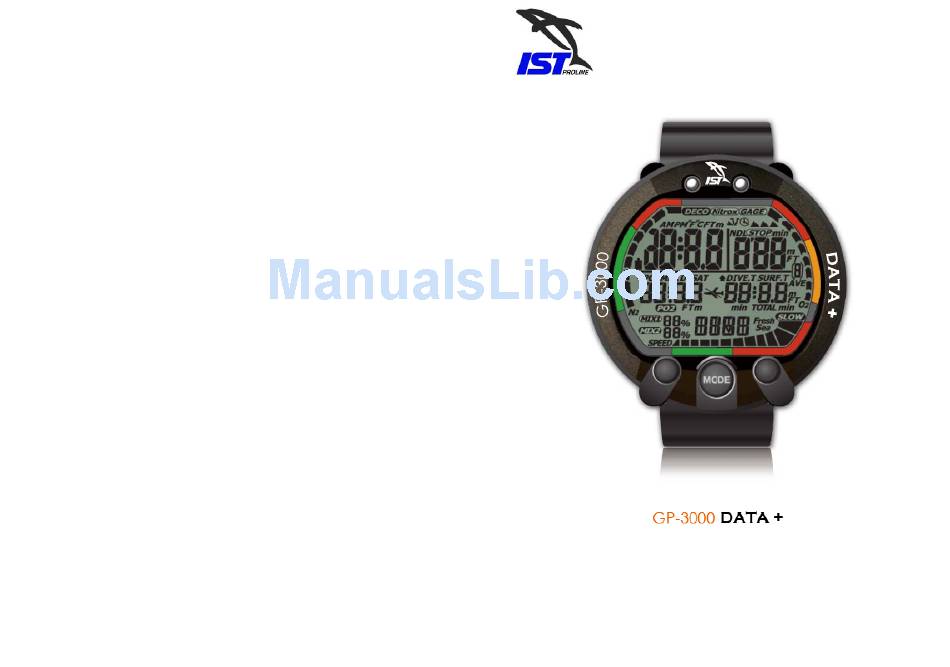

  • Page 1 DIVE COMPUTER www.istsports.com...

  • Page 2: Table Of Contents

    2.2.7. Time set mode 2-2-8. Dive mode (Gage dive mode) Before using IST GP-3000 DATA +, it is imperative to read and understand the whole content 2.2.9. Gage Mode in order to get the most benefits from using the dive computer, and to avoid risking any unnecessary injuries or even death.

  • Page 3: Hardware Specification

    ______________________________ IST PROLINE This dive computer is designed with the assumption that only the owner alone will use it. If ・ lent to another person, you should start completely over from the beginning status (desaturation time, PGT graph and OLI graph should be 0), and you should never lend it to someone when doing repeated dives.

  • Page 4: Time Mode

    ______________________________ ______________________________ IST PROLINE IST PROLINE <Battery indicator icon> 2.2.1. Time Mode This displays the current battery power reserve status (in voltage). NITROX Icon Altitude rank When battery voltage is 2.8V or above, battery Icon is not shown. When battery voltage is 2.6 to 2.7 V, battery Icon comes on and blinks.

  • Page 5: Dive Set Mode (Gage Dive Set Mode)

    ______________________________ ______________________________ IST PROLINE IST PROLINE 2.2.2. Dive set mode (Gage dive set mode) < Altitude Rank 0,1,2,3> < Altitude level Err over 6000 meters (19680 feet)> If surface time is less than 10 minutes after dive, it cannot enter this mode.

  • Page 6: Dive Plan Mode

    ______________________________ ______________________________ IST PROLINE IST PROLINE • Maximum depth Alarm: The alarm generates to sound when it reaches setting depth. 2.2.3. Dive plan mode The setting range: 9-99meters (30-320ft),resolution:1 meter(10 feet). • Dive time alarm: The alarm generates to sound when it reaches diving time.

  • Page 7: Dive Log Mode

    ______________________________ ______________________________ IST PROLINE IST PROLINE altitude and displays the corresponding altitude rank. is at least 1.5 meters (5 feet) and the dive time is at least 3 minutes. Data is recorded during • Mode display: This shows Dive plan mode.
  • Page 8 ______________________________ ______________________________ IST PROLINE IST PROLINE Gage dive log mode provides functions for recording various data during a dive same dive log mode when the dive depth is at least 1.5 meters (5 feet) and the dive time is at least 3 minutes.

  • Page 9: Dive Profile Mode

    ______________________________ ______________________________ IST PROLINE IST PROLINE 2.2.5. Dive profile mode when the last profile data is being displayed. • B: Press this switch to move to PC transfer mode, when there is no log and profile data, it moves to time set mode. but if surface time is less than 10 minutes, the mode moves to time mode, not PC transfer mode.

  • Page 10: Time Set Mode

    ______________________________ IST PROLINE 2.2.7. Time set mode If surface time is less than 10 minutes, it cannot enter this mode. Current time Year Current date ･ The gray squares indicate blinking data Description of Functions It is the mode to set 12/24 tense, current time, date and year.

  • Page 11: Gage Mode

    ______________________________ ______________________________ IST PROLINE IST PROLINE <Hold to push A switch> <Hold to push C switch> (MIX change) Water temperature Max. depth Dive time Oxygen MIX Icon blinks percentage ･The gray square shows a blinking part. <Safety Stop> Description of Functions The dive mode has some modes.
  • Page 12 ______________________________ ______________________________ IST PROLINE IST PROLINE <Push and hold C switch> user comes up to the depth 6m, this value appears instead of NDL. At first, safety stop time start from 3 minutes, later, safety stop time is counted down until safety stop time is 0 among When user pushes and holds a switch C, it displays the temperature, the dive time, the from 6.0 m to 1.5 m.
  • Page 13 ______________________________ ______________________________ IST PROLINE IST PROLINE • OLI warning: <Ascent rate warning> When the OLI graph reaches 7 or 8, it informs with the display and the alarm. There are two types of warnings, as described below. Graph value = 7: It informs with the display and the alarm.
  • Page 14 ______________________________ ______________________________ IST PROLINE IST PROLINE • Default warning: When the MIX1 is set at the default value, an alarm will sound when dive Water detection switch: no function. mode starts. It blinks even if it moves to dive mode until it sets MIX1, it continues to blink.

  • Page 15: Technical Specifications

    ______________________________ ______________________________ IST PROLINE IST PROLINE Display III. Technical Specifications <Time Mode> <Dive set Mode> Accuracy • Time: average monthly variance ±30 seconds • Depth: ±3%+0.5m(±3%+2ft) • Temperature : ±2.0℃(±4°F) Measurement range • Depth: 0.0-99.9m(0.0-328ft) /In gage mode, 0.0-199.9m(0.0-656ft) (Uses saltwater as standard) •...
  • Page 16 <Dive time alarm> sounds for 5 seconds. EL back light Sound 1/ 8 1/ 8 1/ 8 1/ 8 1/ 8 1/ 8 1/ 8 1/ 8 1 second 3 second Pattern 3 seconds 3 seconds 3 seconds 9 seconds <Maximum depth Alarm>...
  • Page 17 Before you dive, always check the FO and FHe in dive set mode. You will not be able to set ______________________________ IST PROLINE the FO and FHe when you are in the water. You should dive so that you have plenty of margins to stay on no-decompression diving.
  • Page 18 This occurs when the altitude rank is over ・ 6000m and the altitude mark blinking. It will recover when you return to a lower Status Cause, prevention, response altitude. The DECO mark, the decompression There has been a decompression stop ・...
  • Page 19 CR2032 button battery is used and is user replaceable; dive log stored in the computer (up to 60 dives) can be simply retrieved into a personal computer through a specially made PC interface and a software (available separately). IST Sports Corp. Room A, 6 Floor, No.
