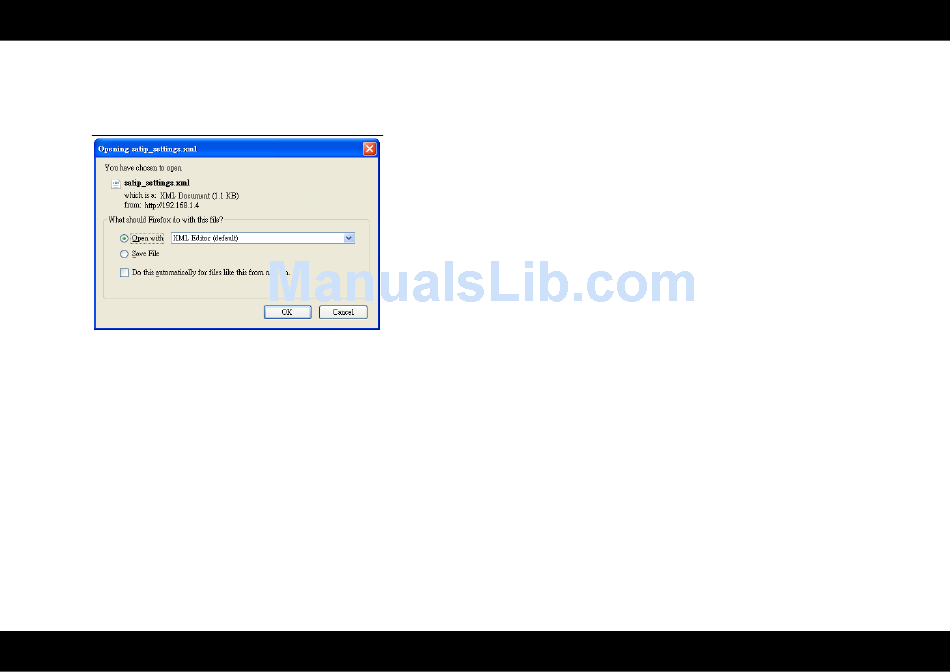

Export:
The function helps users store all settings in the system, and it also helps on the debug/
clarification once an issue occurs in the field. For installation companies, they can ad-
just settings in their labs and then send the XML file to end users. The name of export
file will be "satip_settings".

Import Settings:

Users may not have enough information to adjust settings, so they can get updated
settings from their installation companies and then import the updated settings. It
collocates with Export Setting function, and the name of import file has to be
"satip_settings".
Change Password:
Users can change password by using the function. New password can be used when
users login again.
Reboot:
This is SW reboot. Users can use the function without using power switch on device.
ENGLISH
12

Specifications

Specifications:
Prozessor STi7108 2200 DMIPS
Flash 1 MB NOR / 128 MB NAND
RAM 512 MB DDR3-1066
Ethernet RJ45 10/100/1000
Applikation Unterstützung Elgato (zur Nutzung auf mobile Endgeräte)
DVB-S Eingänge 4x (Anschluss mit Quattro o. Quad LNB)
USB Anschluss für Software Updates
Stromversorgung AC 100V~230 V DC 12 V 3 A
Abmessungen 195 x 117x 40 mm (L/B/H)
Note:
Weight and dimensions are not absolutely exact values .
Technical details can be changed at any time (according to manufacturer) without prior
notice.
Declaration of Conformity
This complies with the following directives / standards is confirmed:
Electromagnetic Compatibility Directive 2004/108/EG
EN 55013: 2001 + A1: 2003 + A2: 2006
EN 55020: 2007
EN 61000-3-2:2006 + A1:2009 + A2:2009
EN 61000-3-3:2008
Low Voltage Directive 2006/95/EG
EN 60065: 2002 + A1: 2006 + A11: 2008
