PROPER INSTALLATION SEQUENCE: L-360-RR & L-420-RR continued
4-
Place Log # REV-2404/RR on the top, left side of Log # REV-2401/RR, and Log #REV-2402/RR, making sure to index the
locators on the two (2) base logs. NOTE: Be sure the rear of Log # REV-2402/RR is perpendicular to the grate, and DOES
NOT tip into the flame profile.

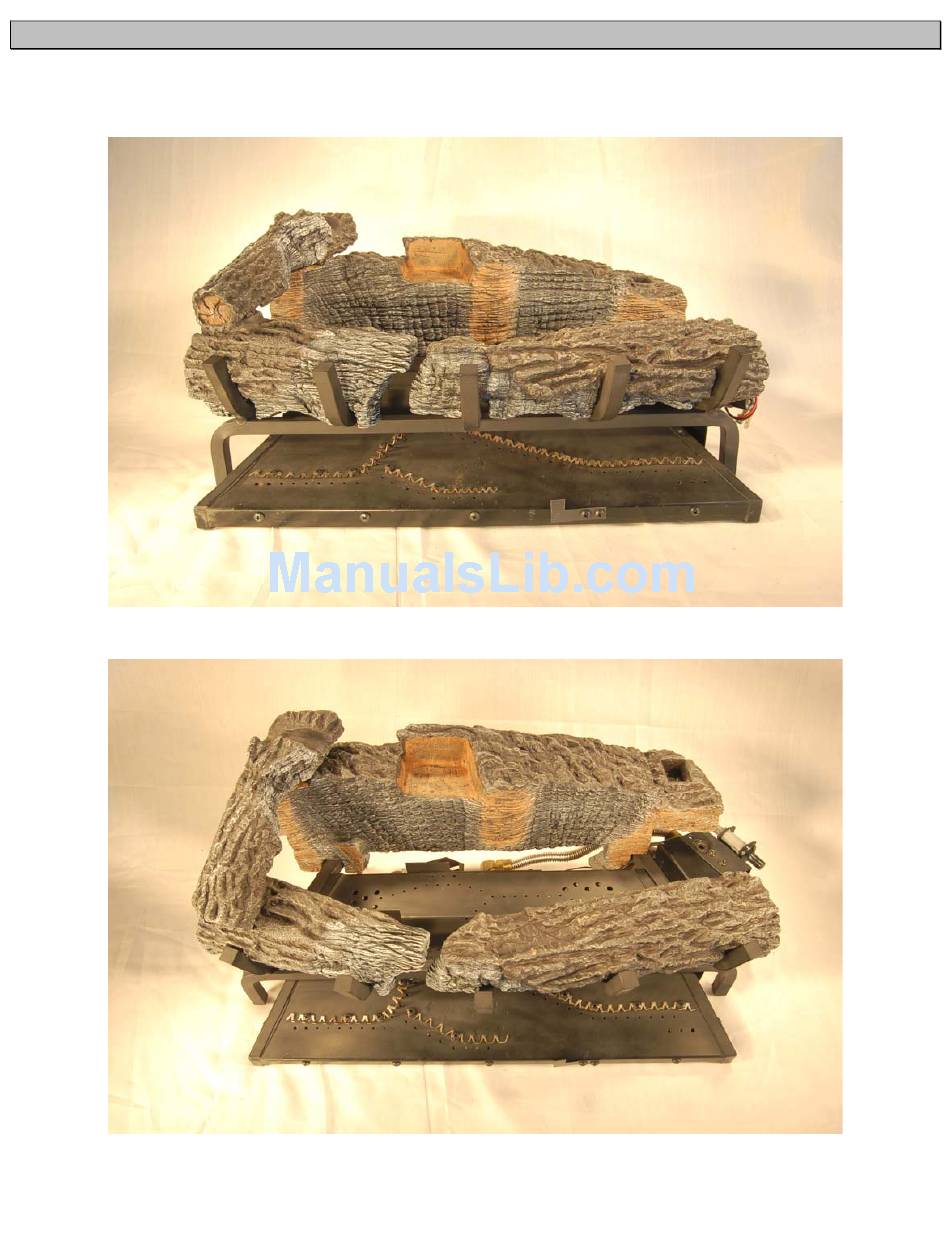

FRONT ANGLE VIEW
OVERHEAD VIEW
6
