VQ OrthoCare Orthostim 4 Patient Manual

Rehabilitative electrotherapy
Hide thumbs
Table of Contents

Advertisement

Quick Links

Patient Manual
OrthoStim4 Rehabilitative Electrotherapy
from VQ OrthoCare

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orthostim 4 and is the answer not in the manual?

Questions and answers

Related Manuals for VQ OrthoCare Orthostim 4

Summary of Contents for VQ OrthoCare Orthostim 4

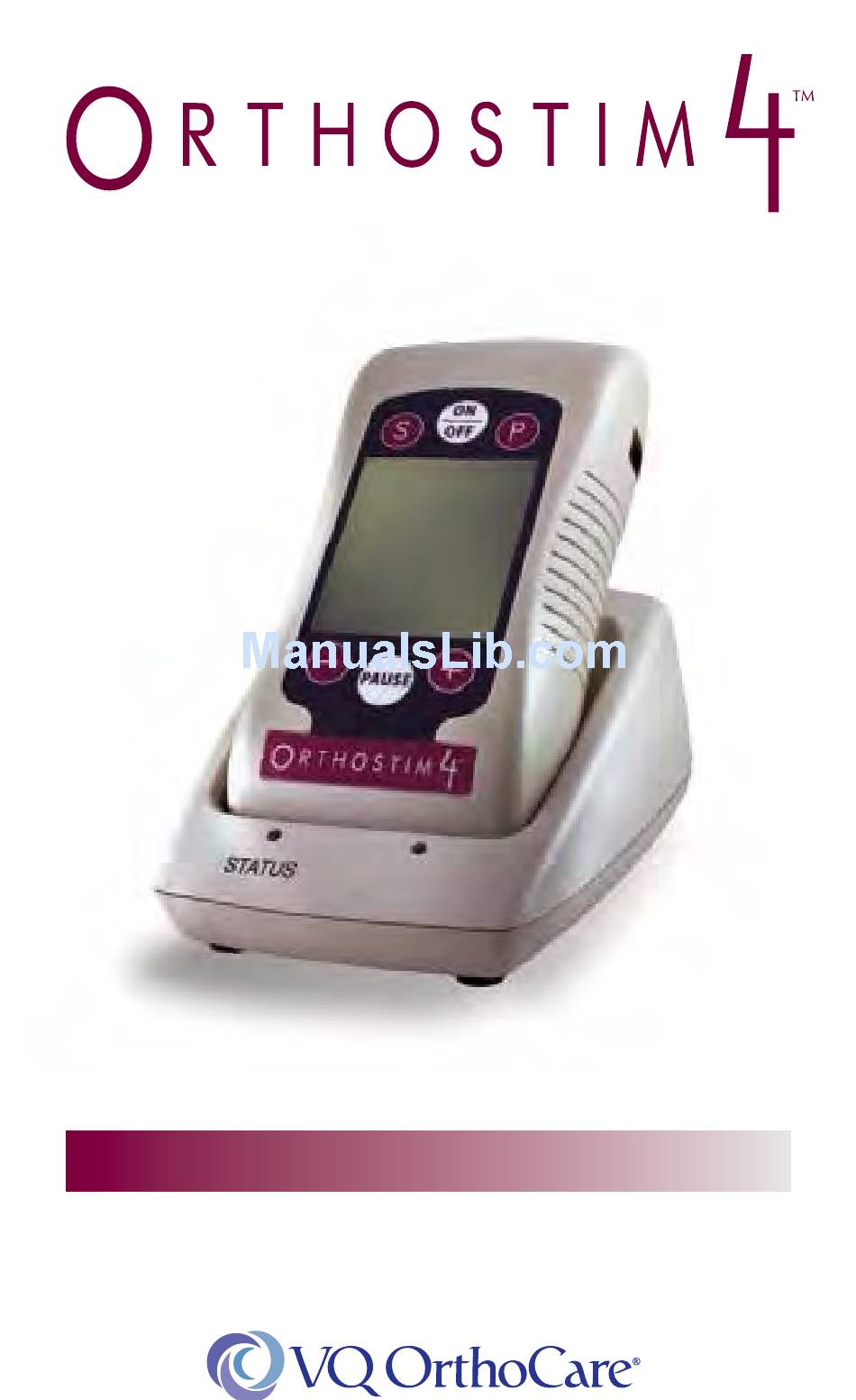

  • Page 1 Patient Manual OrthoStim4 Rehabilitative Electrotherapy from VQ OrthoCare...
  • Page 2 VQ OrthoCare is not liable for any misuse or misunderstanding of the OrthoStim4 product or operating manual. Please call your local representative if any additional assistance is required regarding this product and its operating instructions. This patient manual is proprietary and confi dential. No part of this document...

  • Page 3: Table Of Contents

    Table of Contents Letter to the Patient ..............2 System Components ..............3 Precautions and Prescription Information ......4 Controls and Features ..............6 Accessories ..................8 Starting Your Treatment Sessions ...........10 Normal Running Screens ............13 After Completing Your Treatment Sessions ......17 Electrode Use and Care.............18 Cradle/Modem ................19 Care and Maintenance ..............22 Technical Data and Specifi...

  • Page 4: Letter To The Patient

    Letter to the Patient Your physician has selected the OrthoStim4 – a portable multi-modality device that provides Interferential, Neuromuscular, Pulsed Direct Current and High-Volt Pulsed Current Stimulation – as the most appropriate treat- ment for your needs. The OrthoStim4 electrical stimulator generates small pulses of current that are delivered through lead wires to stimulating electrodes* placed on your skin.

  • Page 5: System Components

    System Components The OrthoStim4 multi-modality stimulation system is operated with: OrthoStim4 electrotherapy device package of non-sterile, reusable electrodes lead wire Power Packs The OrthoStim4 system also includes: carrying case with removable shoulder pouch Patient Manual (this booklet) additional packages of non-sterile, reusable electrodes (depending on your doctor’s protocol) adhesive remover towelettes additional Power Packs...

  • Page 6: Precautions And Prescription Information

    Precautions and Prescription Information CAUTION: Federal law restricts this device to sale by, or on the order of, a practitioner licensed by the law of the State in which he/she practices to use or order the use of this device. NOTE: Please read the following prescription information carefully before using the OrthoStim4.
  • Page 7 Skin irritation and burns beneath the electrodes have occasionally been reported with the use of electrical stimulators. If you experience any symptoms of skin irritation or any unusual reactions while using the OrthoStim4, discontinue use immediately and contact VQ OrthoCare’s Patient Care Department at 800.452.7993 or consult your physician.

  • Page 8: Controls And Features

    Controls and Features Pressing the button turns on the OrthoStim4 and performs a brief system test. Once the OrthoStim4 is turned on, pressing this button turns it off. The (P) button has three functions. It can be used to: • Proceed to the next step, according to directions on the screen •...
  • Page 9 Battery Indicator A battery symbol in the upper left corner of the screen will display the battery status. When the battery is fully charged, the symbol displays as black. When the battery power is low, the symbol displays as white, and starts to fl...

  • Page 10: Accessories

    Power Packs, the AC Adapter, or by placing the OrthoStim4 in the cradle. Power Packs The unit should be turned off when switching from one power source to the other. Additional Power Packs can be ordered from VQ OrthoCare’s Patient Care Department by calling 800.452.7993. Alkaline Power Packs (non-rechargeable) Insert two alkaline Power Packs in the OrthoStim4 with the ribbon handle facing out.
  • Page 11 The Cradle has a plug receptor that will accept a regular phone line (RJ11 plug) from any standard home telephone. The Cradle/Modem will initially be set up by a VQ OrthoCare Patient Technician. For set-up informa- tion, see page 20.

  • Page 12: Starting Your Treatment Sessions

    Do not use unnecessary force in connecting the electrodes to the lead wires. If they do not fi t, use a different set of electrodes and call VQ OrthoCare to re-...
  • Page 13 Save the non-working electrodes for evaluation by VQ OrthoCare’s Quality Assurance Department; DO NOT THROW THEM AWAY! 4. Gently remove the electrodes from the plastic liner. Place the electrodes on the sites prescribed by your physician or therapist and press them fi...
  • Page 14 Starting Your Treatment Sessions (continued) 7. Select the preset as directed by your physician or therapist by pressing the (+) or (–) button until the number indicated for the protocol is shown in the middle of the screen. Press (S) to select. 8.

  • Page 15: Normal Running Screens

    Normal Running Screens These are the screens that appear during most of your treatment time, depending on the modality being used. Press the (+) or (–) button to change stimulation intensity. For your safety, the keypad locks after 30 seconds of inactivity.
  • Page 16 Normal Running Screens (continued) Before starting treatment, you have the option of returning to the protocol screen by pressing (P) and selecting another protocol. Once treatment has started, the (P) button does not return you to the protocol screen. [To choose another protocol after treatment has started, decrease the amplitude to 0 and press (P), or turn the device off, then on again.] Vectoring...
  • Page 17 Normal Running Screens NEUROMUSCULAR treatment screen If you are running a neuromuscular treatment, one of the following screens will be displayed: 4mA 6mA 4mA 6mA Gray Black Gray Black (S) Ch Select (S) Ch Select (PAUSE) Pause (PAUSE) Pause 00:19:59 2 reps In the neuromuscular screen, there are two channels that must be set inde- pendently.
  • Page 18 Normal Running Screens (continued) PULSED Direct Current treatment screen If you are running a Pulsed DC treatment, the following screen will be displayed: 4mA 6mA Gray Black (PAUSE) Pause 00:39:59 HIGH-VOLT PULSED CURRENT treatment screen If you are running a high-volt treatment, the following screen will be displayed: (PAUSE) Pause 00:39:59...

  • Page 19: After Completing Your Treatment Sessions

    SLEEP screen Some protocols may include a SLEEP segment. During this segment, the device does not provide stimulation, but the timer is counting down to the next treatment. This function is used if a clinician wants to create a protocol where the device treats for a specifi ed amount of time, stops, then treats again, without the patient having to turn the device on and off.

  • Page 20: Electrode Use And Care

    Electrode Use and Care WARNING: This product should be used only under the direct super- vision of a registered healthcare practitioner. Product use should be in accordance with the directions and specifi cations of the stimulation device. Improper use of this or any electrode may result in a patient burn. Due to the potential for causing skin burns, devices must be limited to 0.25W per cm .

  • Page 21: Cradle/Modem

    How many times should I use these reusable electrodes?  Electrode life varies due to skin condition, skin preparation, storage, climate and care but for most patients electrodes will last for approx- imately 7-10 applications and removals.  If your electrodes start to dry out, gently rub a few drops of water into the gel on the electrode to remoisten.
  • Page 22 Cradle/Modem (continued) There are two indicator lights on the cradle that will light up when the OrthoStim4 is placed in the cradle. One shows the status of the modem: (red) The modem is currently active. The OrthoStim4 is not ready for use. (green) The modem is not active and the OrthoStim4 can be used.
  • Page 23 NOTE: If you do not have a land line telephone please contact VQ Ortho- Care at 800.452.7993 for an optional data key. The device must connect to VQ OrthoCare a minimum of once every 90 days. It is a good habit to place the device in the cradle weekly to provide your physician with your current treatment data.

  • Page 24: Care And Maintenance

    Care and Maintenance CAUTION: Do not immerse the OrthoStim4 stimulator, lead wires, AC Adapter or batteries in water. Maintenance, care and cleaning of the OrthoStim4 is quick and easy when these instructions are followed: Case Clean the outside of the OrthoStim4 case as needed with a damp cloth and mild soap.
  • Page 25 Power Pack safety considerations  Only use Power Packs provided by VQ OrthoCare.   N ever attempt to recharge alkaline Power Packs, because an explosion may occur.   D o not short-circuit. A short circuit can severely damage the battery or cause it to explode.
  • Page 26 If you experience any diffi culties with the cradle/modem, please contact the VQ OrthoCare Patient Care Department at 800.452.7993 for repair or warranty information. DO NOT open the cradle or make any repairs to it yourself. If the equipment is causing harm to the telephone network, the telephone company may request that you discontinue use of the cradle/ modem until the situation is resolved.

  • Page 28: Technical Data And Specifi Cations

    Technical Data and Specifi cations Physical: Power source: Two (2) VQ OrthoCare Power Packs. The OrthoStim4 can also be run with a VQ OrthoCare AC Adapter or in the cradle provided. Size: 5.7” x 3.0” x 1.5” (14.5 x 7.6 x 3.8 cm) Weight: 12.8 oz.
  • Page 29 Interferential Stimulation: Pulse amplitude: 0 - 25V peak Pulse shape: With four (4) electrodes – symmetric, biphasic square wave With two (2) electrodes – symmetric, biphasic rectangular wave Pulse width: With four (4) electrodes – 125 μs per phase With two (2) electrodes – 5 μs to 125 μs per phase Output Confi...
  • Page 30 Pulse coordination modes: Continuous: Stimulation is provided at the user-selected beat frequency. 1|1: After one second of stimulation, the beat frequency abruptly changes from 60% of user setting to 160% of user setting. One second later, the beat frequency abruptly changes back to 60% of user setting. The cycle then starts over.
  • Page 31 High-volt pulsed current stimulation: Pulse amplitude: 0 - 330V peak Pulse shape: Twin peak, exponential spikes Pulse width: 5 μs per pulse @ 50% of maximum amplitude Pulse polarity: Selectable, positive or negative Pulse frequency: 1 - 120 Hz Ramp-up: 0 - 9 sec On time: 1 - 99 sec...

  • Page 32: Waveform Diagrams

    Waveform Diagrams Figure 1 – HVPC stimulation This drawing shows the output waveform in the HVPC stimulation mode at maximum amplitude (330V). The waveform is shown with a purely resistive load of 500 ohms. The signal repeats at a period of time equal to the recip- rocal of the rate.
  • Page 33 Figure 2 – Premodulated IF stimulation This drawing shows the output waveform in the single-channel premodu- lated IF stimulation mode at maximum amplitude (50mA). The waveform is shown with a purely resistive load of 500 ohms. The two signals created in two-channel mode are internally added together and output on a single channel.
  • Page 34 Figure 3 – Two-channel IF stimulation This drawing shows the output waveform in the two-channel IF stimula- tion mode at maximum amplitude (50mA). The waveform is shown with a purely resistive load of 500 ohms. Ch. 1 is shown; Ch. 2 is identical except that the period is slightly less since the rate is slightly greater.
  • Page 35 Figure 4 – Symmetrical biphasic NM stimulation This drawing shows the output waveform in the symmetrical biphasic NM stimulation mode at maximum amplitude (100mA). The waveform is shown with a purely resistive load of 500 ohms. The stimulation on each channel is the same.
  • Page 36 Figure 5 – Asymmetrical biphasic NM stimulation This drawing shows the output waveform in the asymmetrical NM stimula- tion mode at maximum amplitude (100mA). The waveform is shown with a purely resistive load of 500 ohms. The stimulation on each channel is the same.
  • Page 37 Figure 6—Pulsed Direct Current stimulation This drawing shows the 277 Hz output waveform in the pulsed direct current stimulation mode at maximum amplitude (100mA). The waveform is shown with a purely resistive load of 500 ohms. The stimulation on each channel is the same.
  • Page 38 Figure 7—Pulsed Direct Current stimulation This drawing shows the 222 Hz output waveform in the pulsed direct current stimulation mode at maximum amplitude (100mA). The waveform is shown with a purely resistive load of 500 ohms. The stimulation on each channel is the same.

  • Page 39: Troubleshooting

    Problem Solution Your device needs to download information Screen Displays: to VQ OrthoCare for your physician. Place Your prescribed time the device in the cradle, turn it on and press for authorized use of (P) to Proceed with a download. If you do...
  • Page 40 Please use the AC could damage the device. Use the AC Adapter provided by Adapter provided by VQ OrthoCare VQ OrthoCare for for this device. this device. Screen Displays: The Power Packs are low.

  • Page 41: Notes

    Notes:...
  • Page 42 Notes:...

  • Page 43: Warranty

    VQ OrthoCare at its facilities. This warranty is in lieu of any other warranties expressed or implied. No person or entity is authorized to bind VQ OrthoCare to any representa- tion of warranty other than those specifi cally set forth herein.
  • Page 44 18011 Mitchell South, Irvine, CA 92614 Call 800.266.6969 Fax 800.821.8012 www.vqorthocare.com customerservice@vqorthocare.com © 2010 VisionQuest Industries, Inc. VQO021578REVA...
