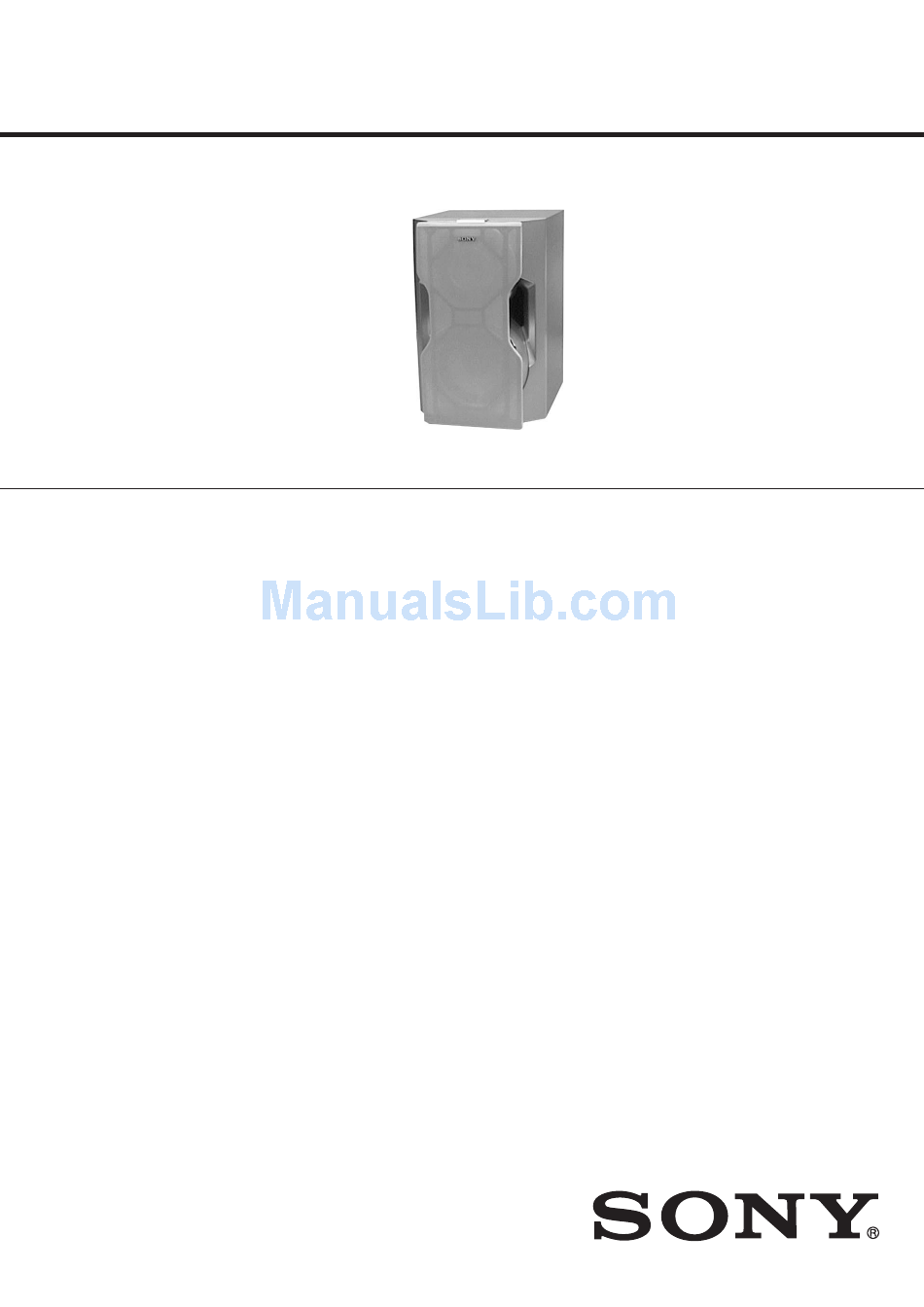

SERVICE MANUAL
• This set is the speaker system in MHC-VZ10/
VZ30AV/ZX30AV/ZX70DVD.
ZX30AVW/ZX70DVDW
Photo: SS-VZ10
SPECIFICATIONS
Speaker system
3-way, bass-reflex type,
magnetically shielded type
Speaker units
Woofer:
15 cm, cone type
Super woofer:
15 cm, cone type
Tweeter:
5 cm, cone type
8 Ω : EXCEPT SS-VZ10
Nominal impedance
6 Ω : SS-VZ10
Approx. 250 × 375 × 325 mm
Dimensions (w/h/d)
Mass
Approx. 7.0 kg net per speaker
Design and specifications are subject to change
without notice.
SS-VZ10/VZ30AV/
ZX30AVW/ZX70DVDW
Australian Model
SS-ZX30AVW/ZX70DVDW
Chinese Model
SS-VZ30AV/ZX70DVDW
SPEAKER SYSTEM
E Model
SS-VZ10/VZ30AV/
