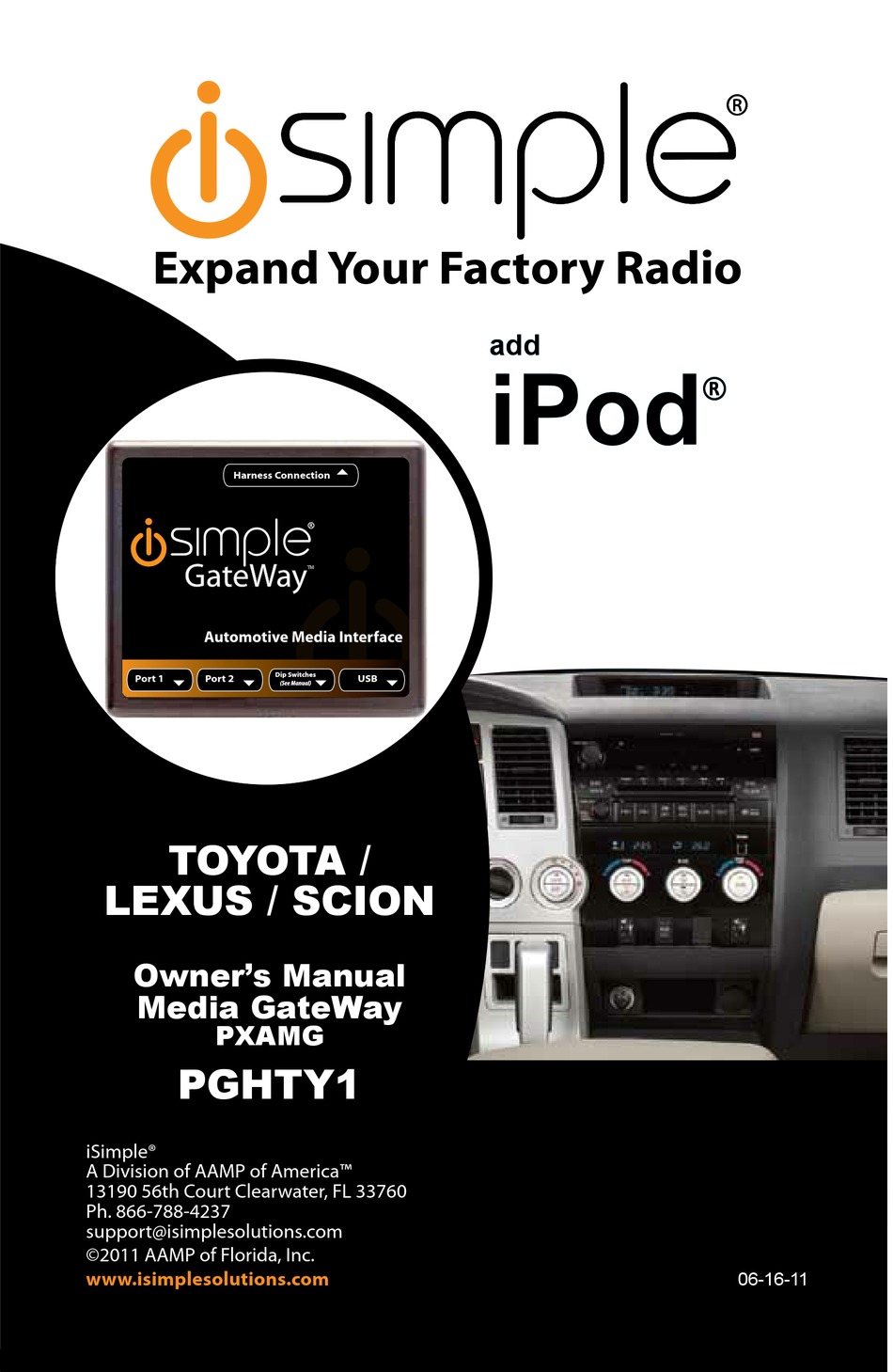

  • Page 1 LEXUS / SCION Manual Owner’s Manual Media Gateway Media GateWay PXAMG PXAMG PGHTY1 iSimple ® iSimple® a division of AAMP of America™ A Division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13190 56th Court Clearwater, FL 33760 Ph.

  • Page 2: Table Of Contents

    (if equipped) Selecting AUX Input CD Changer Emulation 1. iPod Operation 2. Selecting AUX Input Troubleshooting Warranty Info iSimple ® a division of AAMP of America™ 13190 56th Court Clearwater, Florida 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2011 AAMP of Florida, Inc.
  • Page 3 Factory Radio Not Included NOTES * The Media GateWay will only support 2 inputs. Media GateWay Harness Part #: PGHTY1 * CD Changer mode does not support aftermarket Satellite Radio, HD Radio or the ISBT21. Media GateWay Part #: PXAMG ...

  • Page 4: Introduction

    1. Introduction Thank you for purchasing the iSimple® Media GateWay. The Media GateWay is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media GateWay.

  • Page 5: Compatibility Notes

    3. Compatibility Notes Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicle’s compatibility. 4. Dipswitch Settings Satellite Radio Mode Compatible with radios that ARE equipped with an AM-SAT button but ARE NOT equipped with factory satellite radio. Allows advanced browsing of the iPod (with text support) and connectivity for SCC1, HDRT &...

  • Page 6: Installation

    5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. Please Note: If the radio is equipped with a built in CD Changer, please remove ALL discs before proceeding to prevent damage to the radio’s CD mechanism.
  • Page 7 ISBT21. Connect the microphone cable into the 3.5 mm connection on the ISBT21. 9. Plug in the male connectors on the PGHTY1 harness into the 12-pin port on the back of the radio. Next, connect the factory 12-pin harness (if present) into the female connector on the PGHTY1 harness.

  • Page 8: Satellite Radio Emulation

    A. Satellite Radio Emulation This mode of emulation should only be used in vehicles that have an AM-SAT button on the face of the radio but ARE NOT equipped with factory Satellite Radio. 1. iPod Operation Entering Mode Select Menu Press the “AM/SAT”...

  • Page 9: Sirius Satellite Radio Operation

    Seek Up Press the SEEK> button to seek up to next available station. Tune Down Turn the rotary TUNE KNOB counter-clockwise or press “TUNE ▼” to manually tune down. Seek Down Press the <SEEK button to seek down to the next available station. Changing Bands Press the “AM/SAT”...

  • Page 10: Selecting Aux Input

    4.Selecting AUX Input Entering Mode Select Menu Press the “AM/SAT” button to switch to AM then again to switch back to SAT. Turn the TUNE KNOB or press “TUNE ▲” to scroll through the available sources. Once “AUX” is displayed, press PRESET 3 to select the displayed mode. B.

  • Page 11: Selecting Aux Input

    Manual Mode To manually control the iPod simply select Disc 7 by using the “DISC ▲” or “Disc ▼” button. 2.Selecting AUX Input Selecting the Mode Press the “CD” button to switch to CD Changer mode and access the Media GateWay.

  • Page 12: Troubleshooting

    10. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. I can not correctly The iPod firmware Update iPod firmware for free at http:// control the iPod may be out of date.

  • Page 13: Interference Statement

    Within the first 12 months from date of purchase, subject to the conditions above, iSimple will repair or replace the product at their discretion, if it is defective in material or workmanship providing it is returned to an Authorized iSimple Dealer, with PROOF OF PURCHASE from an authorized iSimple dealer.
  • Page 14 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 15 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 16 www.isimplesolutions.com For Best Performanc e Have It Professionally Installe d.
