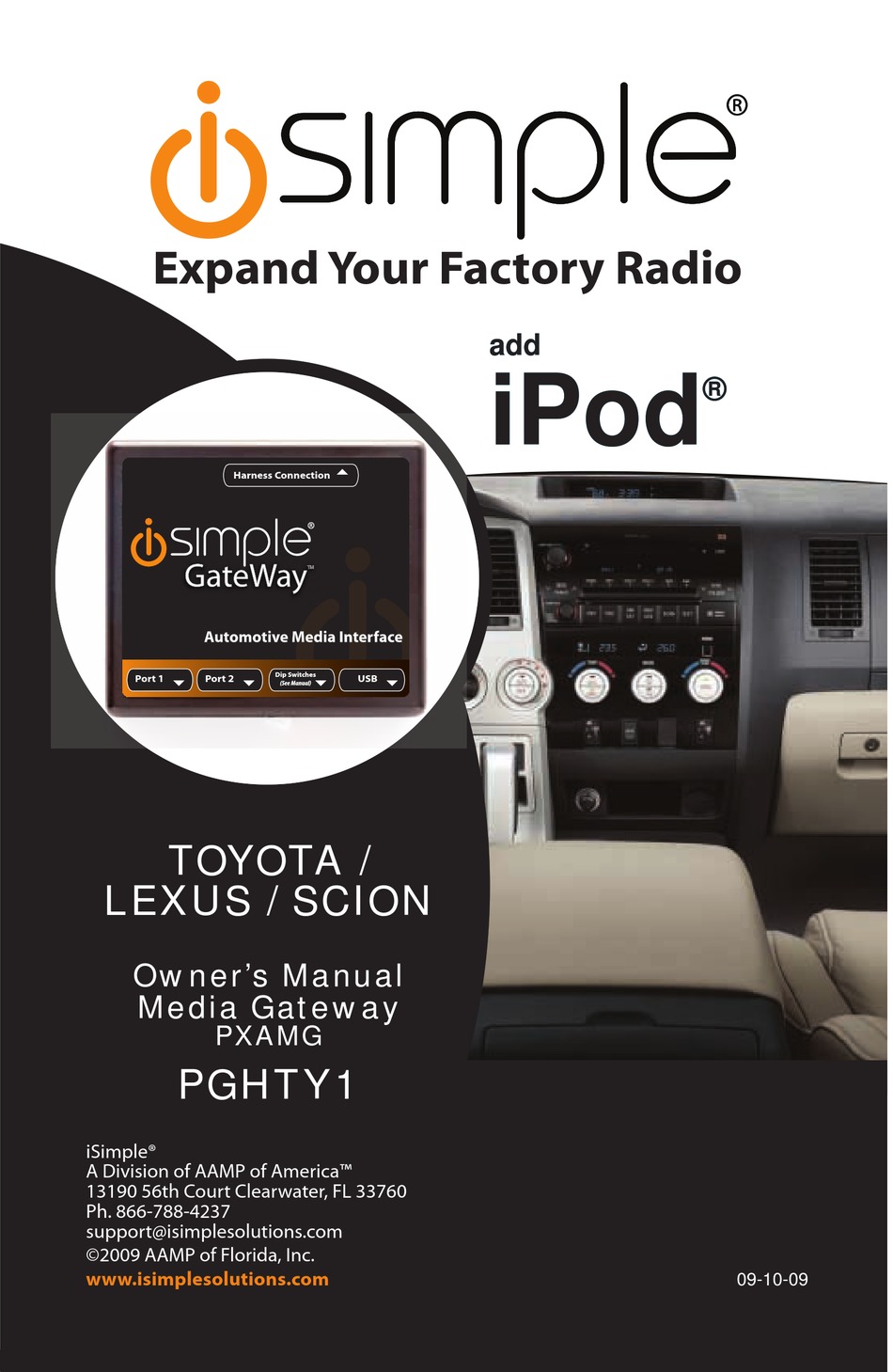

iSimple PGHTY1 Owner's Manual

Factory radio for toyota / lexus / scion, media gateway pxamg
Hide thumbs Also See for PGHTY1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Expand Your Factory Radio
Harness Connection
Port 1
Port 2
Owner's
TOYOTA /
LEXUS / SCION
Manual
Owner's Manual
Media Gateway
Media Gateway
PXAMG
PXAMG
PGHTY1
iSimple
®
,
iSimple®
a division of AAMP of America™
A Division of AAMP of America™
13160 56th Court Clearwater, Florida 33760
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
Ph. 866-788-4237
support@isimplesolutions.com
support@peripheralelectronics.com
©2009 AAMP of Florida, Inc.
©2007 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
add
iPod
iPod
®
®
09-10-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGHTY1 and is the answer not in the manual?

Questions and answers

Related Manuals for iSimple PGHTY1

Summary of Contents for iSimple PGHTY1

  • Page 1 LEXUS / SCION Manual Owner’s Manual Media Gateway Media Gateway PXAMG PXAMG PGHTY1 iSimple ® iSimple® a division of AAMP of America™ A Division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13190 56th Court Clearwater, FL 33760 Ph.

  • Page 2: Table Of Contents

    8. Selecting Sirius Input (if equipped) Selecting AUX Input Selecting Factory Satellite (if equipped) Troubleshooting Warranty Info iSimple ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2009 AAMP of Florida, Inc.
  • Page 3 Media Gateway & Optional Add-ons *The Media Gateway will only support 2 Factory Radio inputs. Not Included Media Gateway Harness iPod Part #: PGHTY1 Not Included Media Gateway  Part #: PXAMG Harness Connection   Dip Switches  ...

  • Page 4: Introduction

    1. Introduction ® Thank you for purchasing the iSimple Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.

  • Page 5: Compatibility Notes

    3. Compatibility Notes Radio MUST have a button labeled “AM/SAT”. This indicates that the radio is satellite ready. Please visit www.isimplesolutions.com for the most up to date application information and to verify your vehicle’s compatibility. 4. Dipswitch Settings All 4 dipswitches MUST be set in the OFF (up) position for proper operation except for the 2010 Toyota Camry.

  • Page 6: Installation

    5. Installation 1. When making electrical connections it is always recommended that the vehicle’s battery be disconnected from the electrical system before performing the installation. 2. Carefully remove the trim panels covering the 10mm bolts that secure the radio into the dash cavity.

  • Page 7: Ipod Operation

    Connect the gray end of this cable into the Satellite Radio tuner. 7. Plug in the male connectors on the PGHTY1 harness into the 12-pin port on the back of the radio. Next, connect the factory 12-pin harness (if present) into the female connector on the PGHTY1 harness.

  • Page 8: Hd Radio Operation (If Equipped)

    Menu UP Press PRESET 4 to move back one step in the browse menu. Exit Browse menu After 10 seconds of inactivity, the browse menu will time out and return to normal operation. Steering Wheel Controls Press the “▲” button to advance to the next track. Press the “▼”...

  • Page 9: Sirius Satellite Radio Operation

    Tune Down Turn the rotary TUNE KNOB counter-clockwise or press “TUNE ▼” to manually tune down. Seek Down Press the <SEEK button to seek down to the next available station. Changing Bands Press the “AM/SAT” button to switch between AM and FM bands. Store Presets Tune to the station you want to store as a preset.

  • Page 10: (If Equipped)

    9.Selecting AUX Input Entering Mode Select Menu Press the “AM/SAT” button to switch to AM then again to switch back to SAT. Turn the TUNE KNOB or press “TUNE ▲” to scroll through the available sources. Once “AUX” is displayed, press PRESET 3 to select the displayed mode. 10.

  • Page 11: Troubleshooting

    10. Troubleshooting Symptom Cause Remedy Radio shows iPod iPod cable is not Verify the docking cable is connected not connected connected to iPod or to the Media Gateway, and the iPod Gateway. The iPod firmware Update iPod firmware for free at http:// I can not correctly www.apple.com/ipod/download control the iPod...

  • Page 12: Interference Statement

    Within the first 12 months from date of purchase, subject to the conditions above, iSimple will repair or replace the product at their discretion, if it is defective in material or workmanship providing it is returned to an Authorized iSimple Dealer, with PROOF OF PURCHASE from an authorized iSimple dealer.
  • Page 13 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 14 Notes ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________ _ ____________________________________________________...
  • Page 15 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
