Summary of Contents for iSimple PGHNI1

Page 1 Maxima • Titan Quest • Frontier Xterra • G35 • FX35/45 QX56 Owner’s Manual Media Gateway PXAMG PGHNI1 Peripheral Electronics Peripheral Electronics ® ® a division of AAMP of America™ a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 13160 56th Court Clearwater, Florida 33760 Ph.
Page 2: Table Of Contents
Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation Nissan Vehicles 6. 350z Operation 7. Altima Operation 8. Frontier/Xterra Operation 9. Maxima Operation 10. Titan Operation 11. Quest Operation Infiniti Vehicles 12. G35 13.

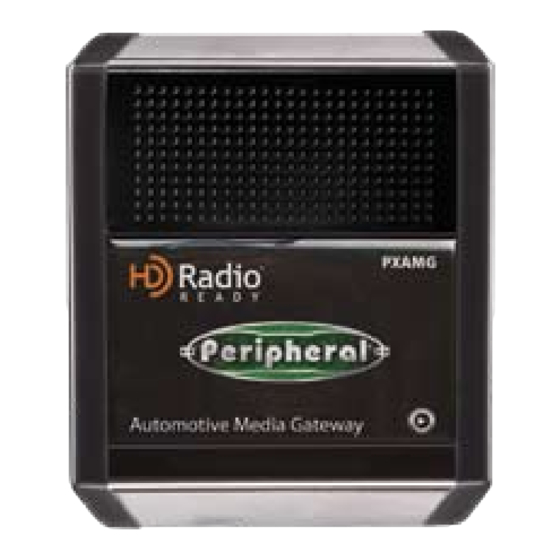

Page 3 Media Gateway & Optional Add-ons Factory Radio Not Included iPod Media Gateway Harness Not Included Part #: PGHNI1 Media Gateway Part #: PXAMG 11Ft. iPod Cable 3Ft. HD Radio Cable (sold with HDRT) HD Radio Tuner (sold seperately) Part #: HDRT...
Page 4: Introduction
1. Introduction Thank you for purchasing the Peripheral Electronics® Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your iPod performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.
Page 5: Dipswitch Settings
4. Dipswitch Settings For installation into the 2004-2008 FX35/45, 2007-2008 Nissan Maxima, 2007-2008 Quest with Multi Color Display and the 2004-2006 QX56 all dipswitches need to be off (Fig. A) 2004-2008 FX35/45 Fig. A 2007-2008 Maxima Navigation 2007-2008 Quest with Multi Color Display 2004-2006 QX56 For installation into the 2004-2007 G35, 2004-2008 Titan and the 2007-2008 Quest with Single Color Display dipswitch number 2 needs to be on (Fig.
Page 6: Installation
Quest require the use of a Best Kits BAA9 Antenna Adapter (or equivalent) to make this connection. 6. Plug the male connectors on the PGHNI1 harness into the 10-Pin and 12-Pin port on the back of the radio. Next connect the factory 10-Pin and 12-Pin harness into the female connectors on the PGHNI1 harness.
Page 7: Ipod Operation
damage the cables. To prevent rattling noises inside the dash, use zip ties, tape, or other fasteners to mount the interfaces securely. 8. With all connections made, reconnect the vehicle’s battery, insert the key into the ignition, and turn the vehicle on. Check for proper operation of the Media Gateway and HD Radio tuner before reinstalling the factory dash panels.
Page 8: Hd Radio Operation
Browse by Artist Press the “TUNE ▼” button to enter the Browse menu. ”PL:LIST” will appear on your display. Press the “SEEK ▲” button until “AR:ARTIST” is displayed. Press the “TUNE ▼” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
Page 9: Altima Operation
Store Presets Tune to the station you want to store and press the “SCAN” button. Press the “SEEK ▲” button to select the preset location (1-18) where you wish to store the preset. When the preset position is displayed (for example PRE1) press “TUNE ▲” to store the preset into memory.
Page 10 Next Track Press the “SEEK ▲” button to advance to the next track. Previous Track Press the “SEEK ▼” button to return to the previous track. Random Mode Press the “SCAN” button while listening to the iPod to toggle through the random modes.
Page 11 HD Radio Operation Entering Mode Select Menu Press the “FM” button and then the “SAT” button. Immediately, press the “SEEK ▲” button to scroll through the available PXAMG sources. Once “HD-FM” is displayed, press the “TUNE ▼” button to select it. Tune Up Press the “TUNE ▲”...
Page 12: Frontier/Xterra Operation
Selecting AUX Input Entering Mode Select Menu Press the “FM” button and then the “SAT” button. Immediately press the “SEEK ▲” button to scroll through the available PXAMG sources. Once “AUX” is displayed, press the “TUNE ▼” button to select it. Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu...
Page 13 Browse by Artist Press the “<<SEEK” button to enter the Browse menu. ”PL:LIST” will appear on your display. Press the “CAT/FOLDER >“ button until “AR:ARTIST” is displayed. Press the “<<SEEK” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
Page 14: Maxima Operation
Store Presets Press the “SCAN” button. Press the “CAT/FOLDER >” button to select the preset location (1-18) where you wish to store the preset. When the preset position is displayed (for example PRE1) press “SEEK>>” to store it. The screen will display “PR SAVED” and your preset has been stored into memory.
Page 15 Entering Browse Menu / Select Press the “<< TUNE” button to enter the Browse menu or to make a selection while in the Browse menu. Menu Navigation Press the “<< SEEK” button to move through the options in the Browse menu. Exit Browse menu (2007-2008 ONLY) Press the “SCAN”...
Page 16 Tune Up Press the “TUNE>>” button to manually tune up. Seek Up Press the “SEEK>>” button to seek up to next available station. Tune Down Press the “<<TUNE” button to manually tune down. Seek Down Press the “<<SEEK” button to seek down to next available station. Changing Bands Press the “FM”...
Page 17: Titan Operation
Press and hold “▲” to manually tune up or “▼” to manually tune down. Selecting AUX Input Entering Mode Select Menu Press the “FM” button and then the “SAT” button. Immediately press the “SEEK >>” button to scroll through the available PXAMG sources. Once “AUX” is displayed, press the “<<TUNE”...
Page 18 Exit Browse menu (2007-2008 ONLY) Press the “SCAN” button or wait 10 seconds and the Browse menu will automatically exit. Changing Display: Press the “DISP” button to display artist and track information. Steering Wheel Controls Press and hold “▲” to move forward or “▼” to move back one track. Browse by Artist Press the “<<TUNE”...
Page 19 Seek Up Press the “SEEK>>” button to seek up to next available station. Tune Down Press the “<<TUNE” button to manually tune down. Seek Down Press the “<<SEEK” button to seek down to next available station. Changing Bands (2004-2005) Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immedi- ately press the “SEEK>>”...
Page 20: Quest Operation
Changing Display: Press the “DISP” button to display artist and track information if the current HD Radio station is transmitting that information. Steering Wheel Controls Press and hold “▲” to seek up or “▼” to seek down. Selecting AUX Input Entering Mode Select Menu (2004-2005) Press the “RADIO”...
Page 21 Menu Navigation Press the “SEEK ▼” button to move through the options in the Browse menu. Exit Browse menu Press the “SCAN” button or wait 10 seconds and the Browse menu will automatically exit. Display Modes Press the “DISP” button to toggle through the display modes (Artist, Track, Album, etc).
Page 22 Tune Down Press the “TUNE ▼” button to manually tune down Seek Down Press the “SEEK ▼” button to seek down to next available station. Changing Bands Press the “FM/AM/SAT” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK ▲”...
Page 23: G35
12. G35 **IMPORTANT NOTE** The 2007 G35 Sedan requires the PGHNI2 harness. iPod Operation Entering Mode Select Menu (2004) Press the “FM” button and then the “SAT” button. Immediately press the “TUNE ▲” button to scroll through the available PXAMG sources. Once “IPOD” is displayed, press the “SEEK ▼”...
Page 24 Browse by Artist Press the “SEEK ▼” button to enter the Browse menu. ”PL:LIST” will appear on your display. Press the “TUNE ▲” button until “AR:ARTIST” is displayed. Press the “SEEK ▼” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
Page 25 Changing Bands (2004) Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “TUNE ▲” button scroll through the available sources. Once the band you would like to select is displayed (“HD-AM” or “HD-FM”), press the “SEEK ▼” button to select it.
Page 26: Fx35/45
Selecting Factory Installed Satellite Radio (If equipped) Entering Mode Select Menu (2004) Press the “FM” button and then the “SAT” button. Immediately press the “TUNE ▲” button to scroll through the available PXAMG sources. Once “SAT” is displayed, press the “SEEK ▼” button to select the displayed mode. Entering Mode Select Menu (2005-2007) Press the “RADIO”...
Page 27 Exit Browse menu (2004-2006) Press and hold the “SEEK >>” button or wait 10 seconds and the Browse menu will automatically exit. Exit Browse menu (2007-2008) Press the “SCAN” button or wait 10 seconds and the Browse menu will automatically exit.
Page 28 Entering Mode Select Menu (2007-2008) Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once “HD-FM” is displayed, press the “<<SEEK” button to select it. Tune Up Press the “SEEK >>”...
Page 29 Exit menus (2004-2006) Press and hold the “SEEK >>” button to exit the Preset Menu and continue playing the current station. “EXIT” will be displayed when the button is pressed. You can also wait the allotted 10 seconds and the menu will exit automatically. Exit menus (2007-2008) Press the “SCAN”...
Page 30: Qx56
14. QX56 iPod Operation Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once “IPOD” is displayed, press the “<<CAT/FLDR” button to select it. Next Track Turn the Tune Knob Clockwise to advance to the next track.
Page 31 Browse by Artist Press the “<<CAT/FLDR” button to enter the Browse menu. ”PL:LIST” will appear on your display. Turn the Tune Knob until “AR:ARTIST” is displayed. Press the “<<CAT/FLDR” button to select Browse by Artist. The list of Artists on your iPod will be displayed one at a time in alphabetical order. “AR” will be displayed in front of the artist’s name to indicate that you are searching for an artist.
Page 32 Changing Bands Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once the band you would like to select is displayed (“HD-AM” or “HD-FM”), press the “<<CAT/FLDR” button to select it.
Page 33: Troubleshooting
15. Troubleshooting Symptom Cause Remedy Radio shows “DEV Media Gateway This only occurs the first time the INIT” device is initializing. Media Gateway is powered on. Wait a few minutes, cycle ignition off and on then enter SAT mode. When trying to test Radio is not Nissan radios get their ground from operation the radio...
Page 34 Troubleshooting (cont) Symptom Cause Remedy When I listen to Factory antenna Use Media Gateway to access HD the factory AM or cable is connected radio source. This will provide all AM FM radio there to the HD radio and FM reception for your vehicle. is only static, no tuner.
Page 35: Warranty Info
16. Warranty One Year Limited Warranty The quality controls used in the manufacture of this product will ensure your satisfac- tion. This warranty applies only to the original purchaser of this product from an autho- rized Peripheral Electronics dealer. This warranty covers any supplied or manufactured parts of this product that, upon inspection by Peripheral Electronics authorized personnel, is found to have failed in normal use due to defects in material or workmanship.
Page 36 Notes _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
Page 37 Notes _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________ _____________________________________________________...
Page 38: Peripheral Electronics
www.peripheralelectronics.com Peripheral Electronics ® a division of AAMP of America™ 13160 56th Court Clearwater, Florida 33760 Ph. 800-477-2267 ext. 230 support@peripheralelectronics.com ©2008 AAMP of Florida, Inc.
