Fuses in the dash panel – LHD

First read and observe the introductory information and safety warn-
ings on page 230.
On left-hand drive vehicles, the fuse box is located behind the storage compart-
ment in the left-hand section of the dash panel.
Replacing fuses
›
Open the storage compartment » page
›
Grab hold of the storage compartment in the area of the arrows
›
Fold out the storage compartment by pulling in the direction of arrow
›
Replace the appropriate fuse.
›
Fold back the storage compartment by pressing into the secured position in the
dash panel in the direction of the arrow
›
Close the storage compartment.
Fuses in the dash panel – RHD

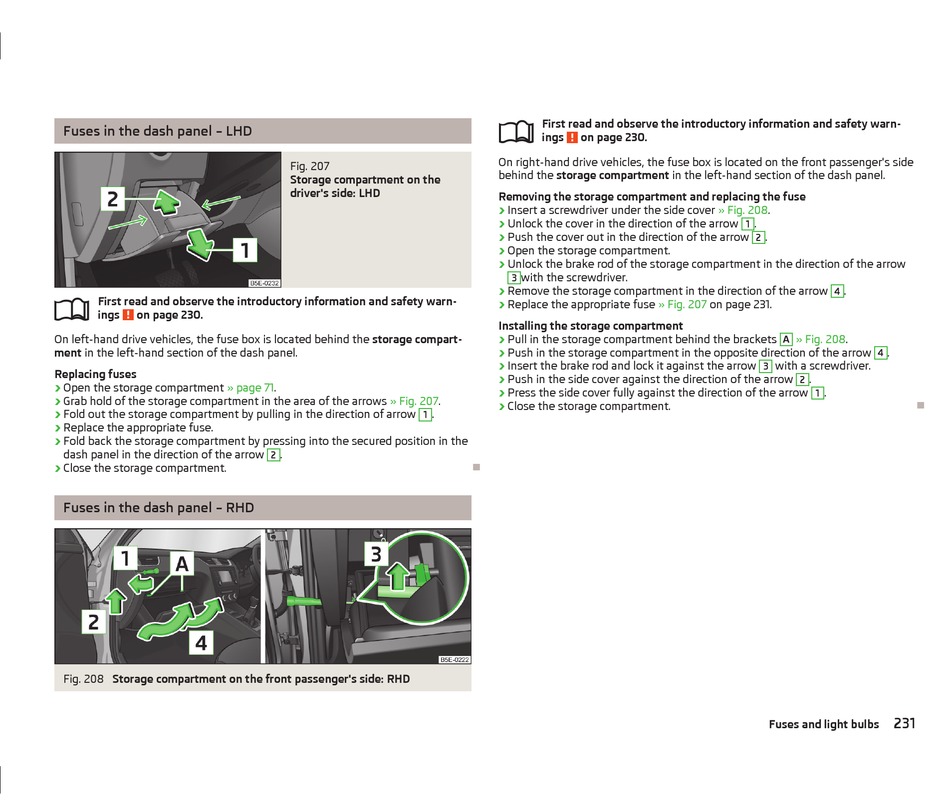

Fig. 208 Storage compartment on the front passenger's side: RHD
Fig. 207
Storage compartment on the
driver's side: LHD
71.
» Fig. 207.
.
1
.
2

First read and observe the introductory information and safety warn-
ings on page 230.
On right-hand drive vehicles, the fuse box is located on the front passenger's side
behind the storage compartment in the left-hand section of the dash panel.
Removing the storage compartment and replacing the fuse
›
Insert a screwdriver under the side cover
›
Unlock the cover in the direction of the arrow
›
Push the cover out in the direction of the arrow
›
Open the storage compartment.
›
Unlock the brake rod of the storage compartment in the direction of the arrow
with the screwdriver.
3
›
Remove the storage compartment in the direction of the arrow
›
Replace the appropriate fuse
Installing the storage compartment
›
Pull in the storage compartment behind the brackets
›
Push in the storage compartment in the opposite direction of the arrow
›
Insert the brake rod and lock it against the arrow
›
Push in the side cover against the direction of the arrow
›
Press the side cover fully against the direction of the arrow
›
Close the storage compartment.

» Fig. 208.
.
1
.
2
4
» Fig. 207 on page 231.
» Fig. 208.
A
with a screwdriver.
3
.
2
.
1
Fuses and light bulbs
.
.
4

