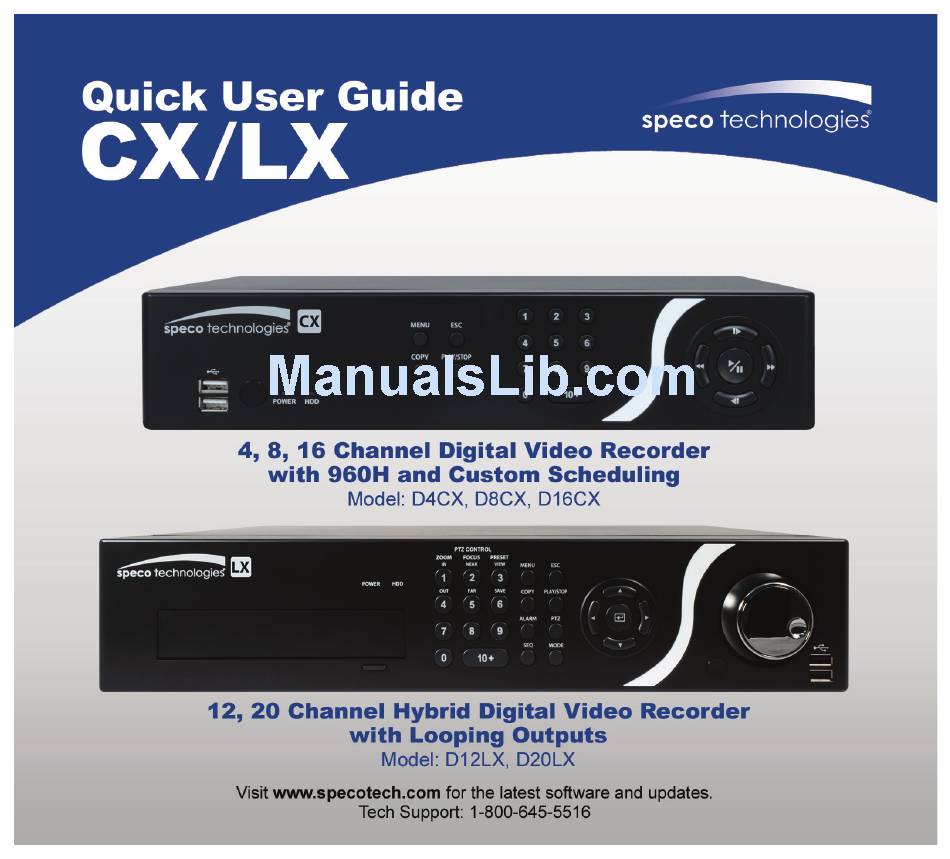

- Page 1 Rev. 12/9/13...
- Page 2 Live Monitoring Mode While in the live monitoring mode, pressing the MENU button displays the following Live Monitoring menu on the right edge of the screen. Pressing the ESC button hides the menu. You can navigate through menus and items by pressing the arrow buttons. • Login/Logout – Logging in or out of the system with username and password.
-
Page 3: Search Mode
Search Mode While in the Search mode, pressing the MENU button displays the following Search menu to the right edge of the screen. Pressing the ESC button hides the menu. You can navigate through menus and items by pressing the arrow buttons. • Event Log Search – Selecting (Search) → Event Log Search selects video from the event log. - Page 4 EZ Search Mode You can enter the EZ Search mode by selecting (Search) – EZ Search in the Search menu while the DVR displays a camera full screen. When entering the EZ Search mode, the DVR will play video in 4x4 display format starting with the first recorded image using the Day precision (default). There are three precision levels: Day, Hour and Minute. While in the EZ Search mode, you will need to select the desired screen tile. • Day – Select the desired Day tile and press (Play/Pause) button. • Hour – Select the desired Hour tile and press (Play/Pause) button. • 2.5 Min – Select the 2 and a half minute tile and press (Play/Pause) button. • The clip will now be playing. Exit the EZ Search mode by pressing the ESC button or selecting (Exit) in the EZ Search menu displayed when pressing the MENU button.
- Page 5 EZ Copy Video clips can be copied to an external USB hard disk or flash drive. The copied video clips can be viewed on computers running Microsoft Windows 2000, XP, Vista or 7. Selecting EZ Copy in the Search – Export menu or pressing the COPY button during playback will set the starting point of the video to be clip copied, and the icon displays at the bottom-left corner of the screen. Selecting EZ Copy in the Search – Export menu or pressing the COPY button again will set the ending point of the video to be clip copied by displaying the Clip-Copy screen. Highlight the box beside From/To and press the (Play/Pause) button to toggle between On and Off. When set to Off, you can enter a specific Date and Time. When set to On, the search will be from the first recorded image. Highlight the box beside Channels and press the (Play/Pause) button. You can select the cameras that you would like to include in your video clip. Highlight the box beside Password and press the (Play/Pause) button. A virtual keyboard appears allowing you to enter the password for reviewing the video clips. Highlight the box beside Dest. and press (Play/Pause) the button. You can select the storage device on which you would like to record the video clip. Start button begins the exporting of the video to your Destination device. (USB flash drive/HDD)
- Page 6 Playback on PC Plug the USB flash drive or HDD into your PC and a similar file will be shown. Title of the video file starts with Year, Month, Day. Double click on the video file and a self executable player will open. With this player you can Play, Pause, FF, RW, change displays, and digital zoom.
- Page 7 Viewing DVR via Mobile Devices The CX/LX models provide mobile surveillance software for viewing with Smartphones. iPhone / iPad Search for Speco Mobile on the Apple iTunes Store and install the App. ® • Once the app is opened, press on the + button at the top right and enter the site information. • Click Save. • Select the Saved site from the list. • Now you have the option of Watch, Search and Edit. • In Watch, you can view your cameras Live, change screen layouts, and listen to audio. • In Search you can Playback recorded video.
- Page 8 Android ™ Search for Speco Mobile on the Android Play Store and install the App. ™ • Once the app is opened, press on the Settings button at the top right and enter the site information. • Click Save. • Select the Saved site from the list. • Now you have the option of Watch and Search . • In Watch, you can view your cameras Live, change screen layouts, and listen to audio. • In Search you can Playback recorded video.
