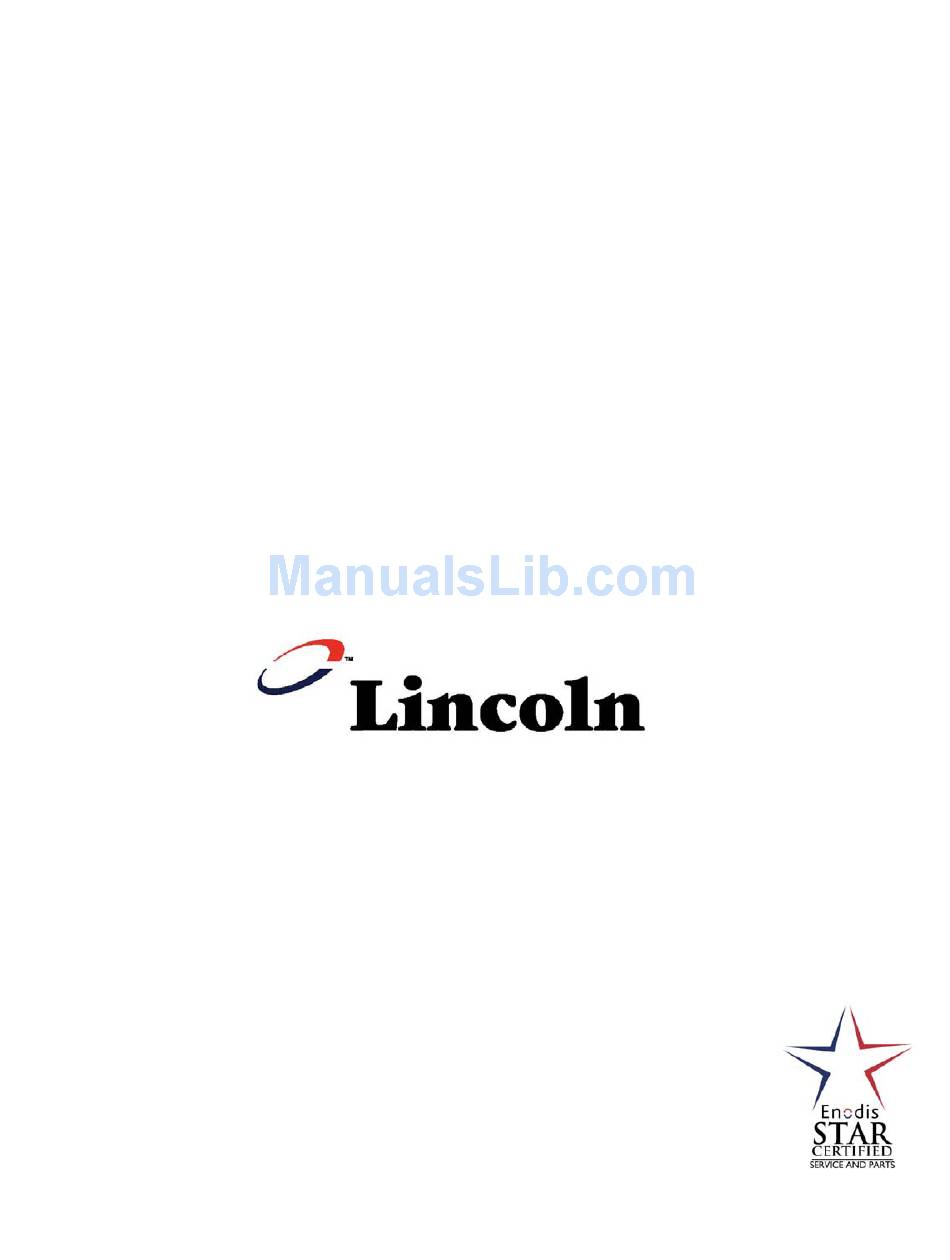

SERVICE MANUAL
(DOMESTIC)
IMPINGER CONVEYOR OVENS
MODEL
1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1,
1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1,
1132-080-A, 1132-080-A1, 1133-080-A, 1132-080-A1,
1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A,
1161-080-A, 1162-080-A
WITH PUSH BUTTON CONTROLS
Lincoln Foodservice Products, LLC
1111 North Hadley Road
Fort Wayne, Indiana 46804
United States of America
Phone : (800) 374-3004
U.S. Fax: (888) 790-8193 • Int'l Fax: (260) 436-0735
Technical Service Hot Line
(800) 678-9511
www.lincolnfp.com
Imp2DigAdvServ
REV 3/20/08

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1116-080-A and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln Electric 1116-080-A

Summary of Contents for Lincoln Electric 1116-080-A

  • Page 1 SERVICE MANUAL (DOMESTIC) IMPINGER CONVEYOR OVENS MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1, 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1132-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, 1161-080-A, 1162-080-A WITH PUSH BUTTON CONTROLS Lincoln Foodservice Products, LLC 1111 North Hadley Road Fort Wayne, Indiana 46804...

  • Page 2: Sequence Of Operation

    (OVENS WITH PUSH BUTTON CONTROLS) MODEL 1116-080-A MODEL 1116-080-A1 MODEL 1117-080-A MODEL 1117-080-A1 POWER SUPPLY CONTROL BOX AUTO COOL DOWN MAIN FAN CIRCUIT BURNER CIRCUIT IGNITION CONTROL TEMPERATURE CONTROL CONVEYOR DRIVE SEQUENCE OF OPERATION IMPINGER II ADVANTAGE, GAS NAT. GAS 120VAC NAT.
  • Page 3 (OVENS WITH PUSH BUTTON CONTROLS) 1130-080-A 1130-080-A1 1130-08H-A 1131-080-A 1131-080-A1 1131-08H-A 1132-080-A 1132-080-A1 1132-08H-A 1133-080-A 1133-080-A1 1133-08H-A 1161-080-A 1162-080-A POWER SUPPLY CONTROL BOX AUTO COOL DOWN MAIN FAN CIRCUIT TEMPERATURE CONTROL CONVEYOR DRIVE AUTOMATIC COOL DOWN Impinger II – Advantage Digital Express Service Manual - Domestic SEQUENCE OF OPERATION IMPINGER II ADVANTAGE, ELECTRIC 120/208VAC...
  • Page 4 SCHEMATIC DIAGRAM MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1 Impinger II – Advantage Digital Express Service Manual - Domestic...

  • Page 5: Schematic Diagram

    SCHEMATIC DIAGRAM MODEL 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1 SCHEMATIC DIAGRAM Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 6 MODEL 1132-080-A, 1132-080-A1, 1133-080-A, 1133-080-A1 Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 7 SCHEMATIC DIAGRAM MODEL 1161-080-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 8 SCHEMATIC DIAGRAM MODEL 1162-080-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 9 SCHEMATIC DIAGRAM MODEL 1130-08H-A, 1131-08H-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 10 SCHEMATIC DIAGRAM MODEL 1132-08H-A, 1133-08H-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 11 MODEL 1116-080-A MODEL 1116-080-A1 MODEL 1117-080-A MODEL 1117-080-A1 SYMPTOM POSSIBLE CAUSE Oven fan will not run Incoming power supply Fuse, 10 Amp Fuse holder Hi-limit thermostat, control box Switch, main power Main fan motor Capacitor No control box cooling Incoming power...
  • Page 12 Hi-limit thermostat, oven cavity Burner blower motor Burner transformer Centrifugal switch of burner blower motor Ignition control Hot surface igniter Ignition control Gas control valves Flame will not stay lit Hot surface igniter the main fan motor) to neutral. If no voltage is present, trace wiring back to the main power switch.
  • Page 13 Power supply Ignition control NOTE: Flame should be on at this time Low flame is on, Control transformer but no main flame Oven control Thermocouple Impinger II – Advantage Digital Express Service Manual - Domestic occur. If flame is not detected, the ignition control will shut off and lock out.
  • Page 14 Oven control Thermocouple Oven control Temperature regulation valve Intermittent heating Thermal/overload of main fan and burner blower motors Conveyor will not run Power supply Fuse, 10 Amp Fuse holder Hi-limit thermostat, control box Power switch Control transformer Conveyor motor Capacitor, conveyor motor If the thermocouple checks good, but the oven control display indicates that there is a thermocouple failure, replace the oven control.
  • Page 15 Switch, conveyor reversing Oven control Conveyor motor runs, but NOTE: Display will indicate there is no speed display “Belt Jam” Oven control Conveyor motor Oven control Impinger II – Advantage Digital Express Service Manual - Domestic needed. WARNING: Capacitor has a stored charge, discharge before testing.
  • Page 16 1130-080-A 1130-080-A1 1130-08H-A 1131-080-A 1131-080-A1 1131-08H-A 1132-080-A 1132-080-A1 1132-08H-A 1133-080-A 1133-080-A1 1133-08H-A 1161-080-A 1162-080-A SYMPTOM Oven fan will not run No main fan cool down 120/208VAC 60 HZ. 120/208VAC 60 HZ. 208 VAC 60 HZ. 120/240VAC 60 HZ. 120/240VAC 60 HZ. 240 VAC 60 HZ.
  • Page 17 Main fan runs after 20 minute cool down No control box cooling No automatic control box cooling Oven will not heat Impinger II – Advantage Digital Express Service Manual - Domestic Replace relay as needed. Oven start relay Contacts should open when main power switch is turned off.
  • Page 18 Oven heats with switch off Intermittent heating If there is a read-out on the control, set the control to maximum temperature (see installation operations manual for temperature adjustment). With the control set at maximum temperature, check for supply voltage at mercury contactor. If there is voltage at the mercury contactor, proceed to “mercury contactor”...
  • Page 19 Conveyor will not run Conveyor motor runs, but there is no speed display Impinger II – Advantage Digital Express Service Manual - Domestic thermal protection and will cease to operate if overheating occurs. As the motor overheats and then cools, this will cause the oven to cycle on and off intermittently.
  • Page 20 REMOVAL, INSTALLATION AND ADJUSTMENTS BEFORE REMOVING OR INSTALLING ANY COMPONENT IN THE IMPINGER OVEN BE SURE TO DISCONNECT ELECTRICAL POWER AND GAS SUPPLY. MAIN FAN – REPLACEMENT A. Shut off power at main breaker. B. Remove motor cover from back of oven. C.
  • Page 21 CAPACITOR – REPLACEMENT A. Shut off power at main breaker. B. Remove rear control box cover. C. Discharge capacitor. D. Remove capacitor. E. Reassemble in reverse order and check system operation. ON/OFF SWITCH – REPLACEMENT A. Shut off power at main breaker. B.
  • Page 22 F. Reassemble in reverse order and check system operation. Be sure capillary tube is securely in the mount. NOTE: Push reset button on new thermostat. TRANSFORMER, BURNER – REPLACEMENT A. Shut off power at main breaker. B. Remove conveyor and front control box cover. C.

  • Page 23: Gas Valve Replacement

    BURNER CONTROL – REPLACEMENT A. Shut off power at main breaker. B. Remove conveyor and front control box cover. C. Remove wires from control and mark for reassembly. D. Remove mounting screws from control and remove burner control. E. Reassemble in reverse order and check system operation. GAS VALVE –...
  • Page 24 BYPASS ORIFICE – REPLACEMENT A. Shut off power at main breaker. B. Shut off gas supply to the oven and disconnect the flexible gas line to oven. C. Remove rear control box cover. D. Disconnect bypass tube from gas valve. E.

  • Page 25: Heating Element - Replacement

    G. Turn adjusting screw on air pressure switch fully counter clockwise. H. Turn oven “on”. Turn adjusting screw on air pressure switch clockwise until heat shuts off. Turn adjusting screw on air pressure switch counter clockwise ¼ turn. K. Reassemble control panel top and front cover. BEARING, CONVEYOR –...
  • Page 26 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1, 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1132-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, LETTER GENERAL VIEW IMPINGER II ADVANTAGE MODEL 1161-080-A, 1162-080-A PART NUMBER DESCRIPTION 370412 Cross support 370416 Stand side 369231 Caster, 4” w/threaded stem 369232...

  • Page 27: General View

    GENERAL VIEW Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 28 LETTER CONTROL BOX, FRONT MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1 PART NUMBER DESCRIPTION 369805 Switch, on/off 370408 Facia, pushbutton 370417 Control board 370409 Display (digital only) 369531 Transformer, 24VAC 369507 Thermostat, cooling fan 369124 Cooling fan 369532 Ignition control 370410 Stand off plate 369680 Front cover assy.
  • Page 29 CONTROL BOX, FRONT VIEW MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1 Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 30 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1133-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, LETTER CONTROL BOX, FRONT MODEL 1161-080-A, 1162-080-A PART NUMBER DESCRIPTION 369680 Front cover assy. 369508 Timer, 20 minute 369432 On/off switch 370408 Facia, push button 370417 Control board 370409 Display 369427...
  • Page 31 CONTROL BOX, FRONT VIEW MODEL 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1133-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, 1161-080-A, 1162-080-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 32 LETTER CONTROL BOX, REAR MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1 PART NUMBER DESCRIPTION 369192 Capacitor 370378 Conveyor motor assy. (S/N 2052462 & Below) 370675 Conveyor motor assy. (S/N 2052463 & Above) 369901 Burner manifold 369568 Burner venturi, Nat. gas 369938 Burner venturi, L.P. gas 369566 Orifice, main, Nat.
  • Page 33 CONTROL BOX, REAR VIEW MODEL 1116-080-A, 1116-080-A1, 1117-080-A, 1117-080-A1 Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 34 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1133-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, LETTER CONTROL BOX REAR MODEL 1161-080-A, 1162-080-A PART NUMBER DESCRIPTION 369192 Capacitor 369200 Relay, main fan 369124 Cooling Fan 369378 Cooling Fan 1132 – 1133-08H-A models 370362 Thermocouple, Type “K” 369185 Terminal block section 1 Phase (2 required) 369187...
  • Page 35 CONTROL BOX, REAR VIEW MODEL 1130-080-A, 1130-080-A1, 1131-080-A, 1131-080-A1, 1132-080-A, 1132-080-A1, 1133-080-A, 1133-080-A1, 1130-08H-A, 1131-08H-A, 1132-08H-A, 1133-08H-A, 1161-080-A, 1162-080-A Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 36 LETTER PART NUMBER 369182 369899 369655 369183 369184 370648 370645 370690** 370689** Not Shown 370687** 370688** 369976 369549 369581 369539 369181 369695 369033 369681 369979 369227 369541 ** High wattage elements for models 1130-08H-A, 1131-08H-A, 1132-08H-A, and 1133-08H-A have been redesigned –...
  • Page 37 OVEN BACK ASSEMBLY VIEW Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 38 LETTER Not Shown CONVEYOR / DOOR PART NUMBER DESCRIPTION 369190 Coupler (S/N 2052462 & below) 370671 Coupler (S/N 2052463 & above) 369512 Coupling center (S/N 2052462 & below) 369269 Ball plunger (S/N 2052462 & below) 370116 Set screw (S/N 2052462 & below) Crumb pan, right S/N 2045452 &...
  • Page 39 CONVEYOR / DOOR VIEW Impinger II – Advantage Digital Express Service Manual - Domestic...
  • Page 40 Impinger II – Advantage Digital Express Service Manual - Domestic...
