Operator's Manual

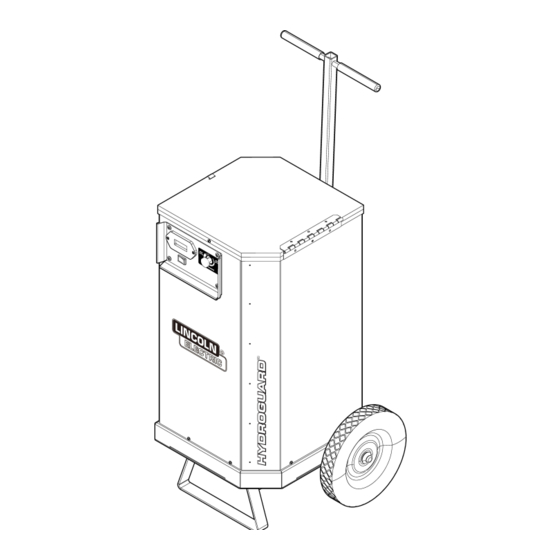

HYDROGUARD™ 50 LB. PORTABLE ROD OVEN
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
Save for future reference
Date Purchased
Code: (ex: 12735)
Serial: (ex: U1060512345)
IM10612
| Issue D ate Jul-21
© Lincoln Global, Inc. All Rights Reserved.
For use with machines having Product Numbers:
K5182-1
/STE
ORIGINAL INSTRUCTIONS
Need Help? Call 1.888.935.3877
to talk to a Service Representative
Hours of Operation:
8:00 AM to 6:00 PM (ET) Mon. thru Fri.
After hours?
Use "Ask the Experts" at lincolnelectric.com
A Lincoln Service Representative will contact you
no later than the following business day.
For Service outside the USA:
Email: globalservice@lincolnelectric.com
Advertisement
Related Manuals for Lincoln Electric HYDROGUARD K5182-1
Summary of Contents for Lincoln Electric HYDROGUARD K5182-1
- Page 1 Operator’s Manual HYDROGUARD™ 50 LB. PORTABLE ROD OVEN ORIGINAL INSTRUCTIONS For use with machines having Product Numbers: K5182-1 /STE Need Help? Call 1.888.935.3877 Register your machine: to talk to a Service Representative www.lincolnelectric.com/register Authorized Service and Distributor Locator: Hours of Operation: www.lincolnelectric.com/locator 8:00 AM to 6:00 PM (ET) Mon.
- Page 2 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
- Page 3 W117.2. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 2.d. All welders should use the following procedures in order to St. Clair Avenue, Cleveland, Ohio 44117-1199.
- Page 4 SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”...
- Page 5 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
-
Page 6: Table Of Contents
TABLE OF CONTENTS Page Operation.........................Section A Technical Specifications .......................A-1 General Description......................A-1 ________________________________________________________________________________ Troubleshooting ....................Section B Safety Precautions....................B-1 How to Use Troubleshooting Guide...............B-1 Troubleshooting Guide ..................B-2 ________________________________________________________________________________ Wiring Diagrams....................Section C ________________________________________________________________________________ Parts List......................Section D Warranty Statement....................D-1 Parts List.........................D-1 ________________________________________________________________________________ HYDROGUARD™ 50lb ROD OVENS... -
Page 7: Operation
OPERATION TECHNICAL SPECIFICAITONS - HYDROGUARD® 50 LB. PORTABLE ROD OVEN K5182-1 Wattage 300 W Voltage 120 / 240 V AC Temperature Range 100° - 300°F (38° - 149°C) +/-25°F (14°C) Insulation 1.5in. fiberglass 20.32cm. x 50.8cm deep Chamber Size 8in. dia. X 20in. deep Capacity 23kg. - Page 8 OPERATION TEMPERATURE SETTINGS PORTABILITY This oven utilizes a variable thermostat, providing an This oven is supplied with wheels and a retracting handle operating range of 100°- 300°F (38°-149°C) average for easy portability. stabilized load temperatures. The wheels are supplied with a steel hub and ball The oven operating temperature is set by rotating the bearings to withstand wear over years of service.
-
Page 9: Troubleshooting
TROUBLESHOOTING HOW TO USE TROUBLESHOOTING GUIDE WARNING Service and Repair should only be performed by Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual. - Page 10 TROUBLESHOOTING PROBLEMS POSSIBLE RECOMMENDED COURSE (SYMPTOMS) CAUSE OF ACTION Oven fails to operate – No Heat 1. If the indicator light does not illuminate, check power supply. 2. Confirm cord is plugged fully into power inlet. Check complete power cord for continuity. If defective, replace the entire cord.
- Page 11 TROUBLESHOOTING PROBLEMS POSSIBLE RECOMMENDED COURSE (SYMPTOMS) CAUSE OF ACTION Thermometer Indicates in Wrong 1. Disconnect power from the unit. Units - ˚F or ˚C 2. Remove the bottom cover from the base to expose thermometer battery housing. 3. Changing to either °F or °C is accomplished by pressing the button located in the battery holder.
- Page 12 DIAGRAMS All wiring should be done by licensed electricians in accordance with state and local codes, as well as the • NEC (National Electrical Code) Standards. • Improper installation or use may result in serious injury. Always remove oven from power source before troubleshooting or repairing. •...
-
Page 13: Parts List
PARTS LIST WARRANTY INFORMATION This product has a 1 year warranty. Reference IMWS1 included in Literature. HYDROGUARD 50 LB. PORTABLE ROD OVEN PARTS LIST ITEM PART NO. DESCRIPTION G10578 Handle Assembly G10579 Lid Assembly G10580 Kickstand Kit G10581 Latch Kit G10582 Wheel Assembly M27919-42... - Page 14 NOTES HYDROGUARD™ 50lb ROD OVENS...
- Page 15 NOTES HYDROGUARD™ 50lb ROD OVENS...
- Page 16 NOTES HYDROGUARD™ 50lb ROD OVENS...
- Page 17 Do not touch electrically live parts or Keep flammable materials away. Wear eye, ear and body protection. WARNING electrode with skin or wet clothing. Insulate yourself from work and ground. Spanish No toque las partes o los electrodos Mantenga el material combustible Protéjase los ojos, los oídos y el AVISO DE bajo carga con la piel o ropa moja-...
- Page 18 Keep your head out of fumes. Turn power off before servicing. Do not operate with panel open or WARNING Use ventilation or exhaust to guards off. remove fumes from breathing zone. Spanish Los humos fuera de la zona de res- Desconectar el cable de ali- No operar con panel abierto o AVISO DE...
- Page 19 Lincoln Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
