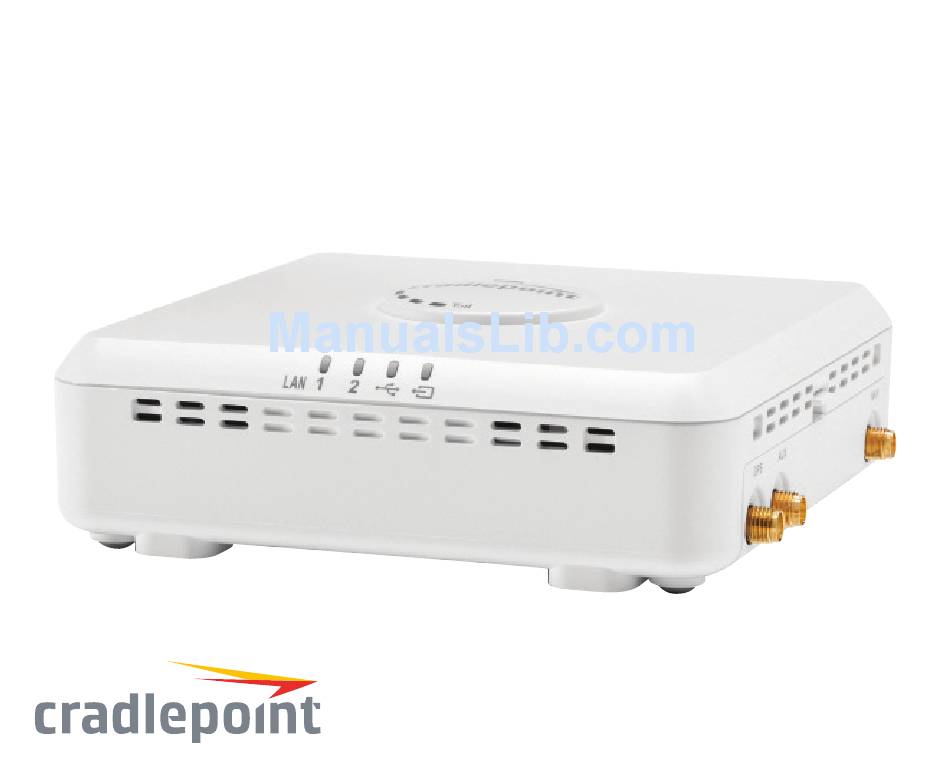

- Page 1 Cradlepoint ARC CBA850 Quick Start Guide cradlepoint.com...
-
Page 2: What's In The Box
Connected (blinking) Connecting Not active / may be engaged in failover process (blinking) Connection error (blinking) Modem resetting **MODEM SIGNAL STRENGTH KEY: Blinking indicates 1/2 bar LAN Ethernet 1, 2 Integrated Modem ***POWER LIGHT COLOR CODE: External/USB Modem Attention cradlepoint.com... - Page 3 HARDWARE Integrated Modem Cover GPS Connector (SMA) 3G/4G Antenna Connectors (SMA) Power/Status Lock Slot Cable Guide Slot USB Port Modem Signal Strength (blinking indicates 1/2 bar) Cable Guide Slot Cover cradlepoint.com...
- Page 4 LAN 1 Ethernet for local management of CBA850 (Default: NAT) LAN 2 Ethernet to WAN port of connected device (Default: IP Modem Passthrough 0/24) Cover Screw POE enabled Power OFF/ON Mounting Holes cradlepoint.com...
-
Page 5: Basic Setup
1. Insert an activated SIM into the integrated modem. The Cradlepoint ARC CBA850 requires a SIM with an activated wireless broadband data plan. Contact your carrier for details about selecting a data plan and about the process for provisioning your SIM. -
Page 6: Accessing The Administration Pages
DEFAULT PASSWORD found on the product label. CLOUD MANAGEMENT Rapidly deploy and dynamically manage networks at geographically distributed locations with Enterprise Cloud Manager, Cradlepoint’s network management and application platform. To learn more about how cloud-based management can help your organization improve productivity, reduce costs, and enhance network intelligence, visit Cradlepoint.com/ECM. - Page 7 THE FIRST TIME SETUP WIZARD When you log in for the first time, you are automatically directed to the FIRST TIME SETUP WIZARD, which will help you customize your ARC CBA850. Change any of the following: Administrator Password Time Zone...
-
Page 8: Updating Firmware
If you do not have an active Internet connection, you may need to use the MANUAL FIRMWARE UPLOAD option by downloading new firmware from the Customer Connect Portal to a local device. Upload to the router on the SYSTEM SETTINGS > SYSTEM SOFTWARE page. cradlepoint.com...
