CP318
USER OPERATING INSTRUCTIONS
Combined Timeswitch and Room Thermostat

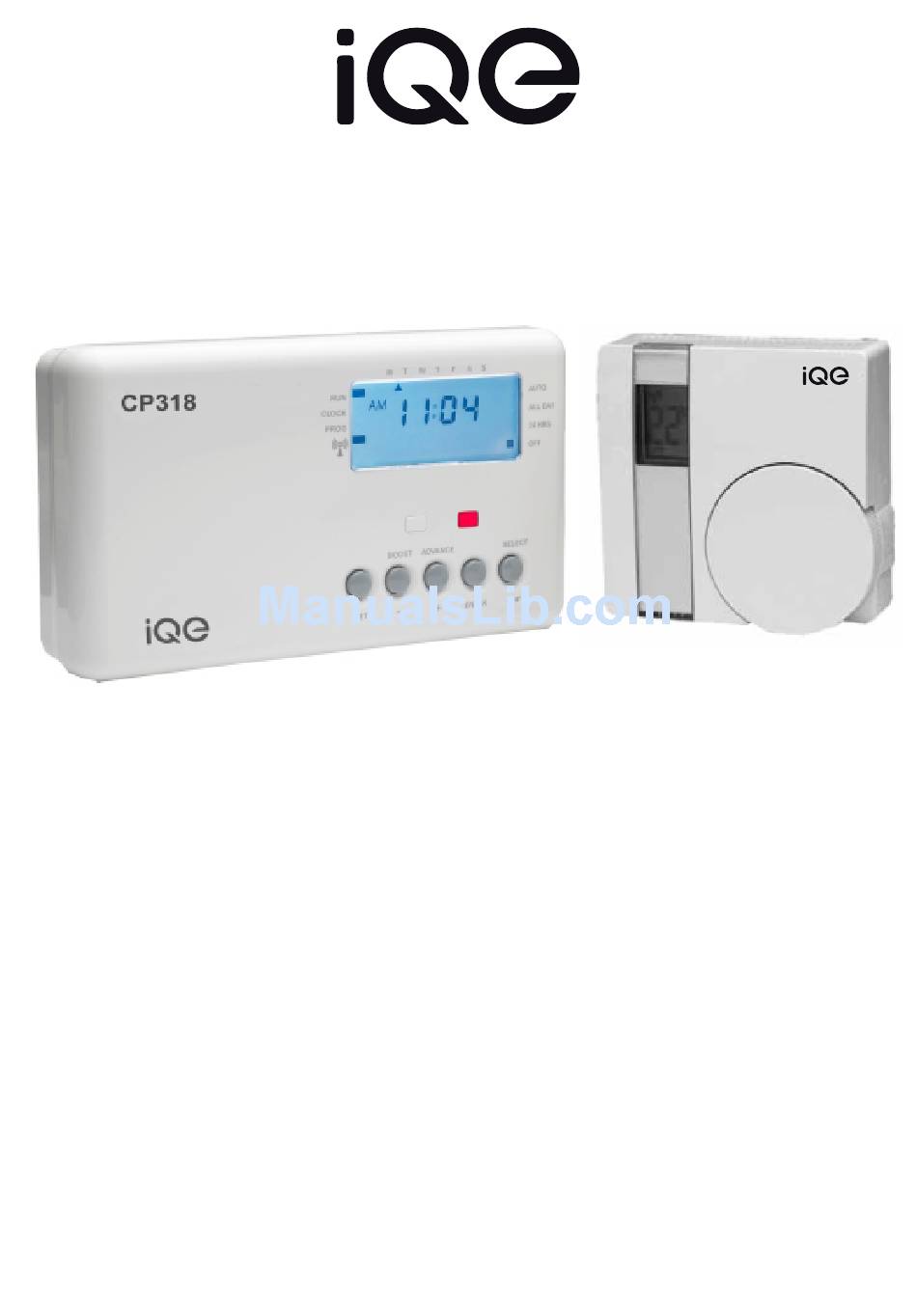

The CP318 combined wireless room stat and time control allows
a combi boiler system to have a room thermostat added without
the need for any additional wiring.
Replacing the existing time controller with the CP318 will allow the
room thermostat to be connected wirelessly producing immediate
energy savings in houses where no previous room thermostat
has been fitted.
The device is intended to upgrade existing combi boiler systems
that do not have an existing room thermostat. It is not intended for
new installations where it will be necessary to install two heating
zones in order to comply with current Building Regulations.
1
