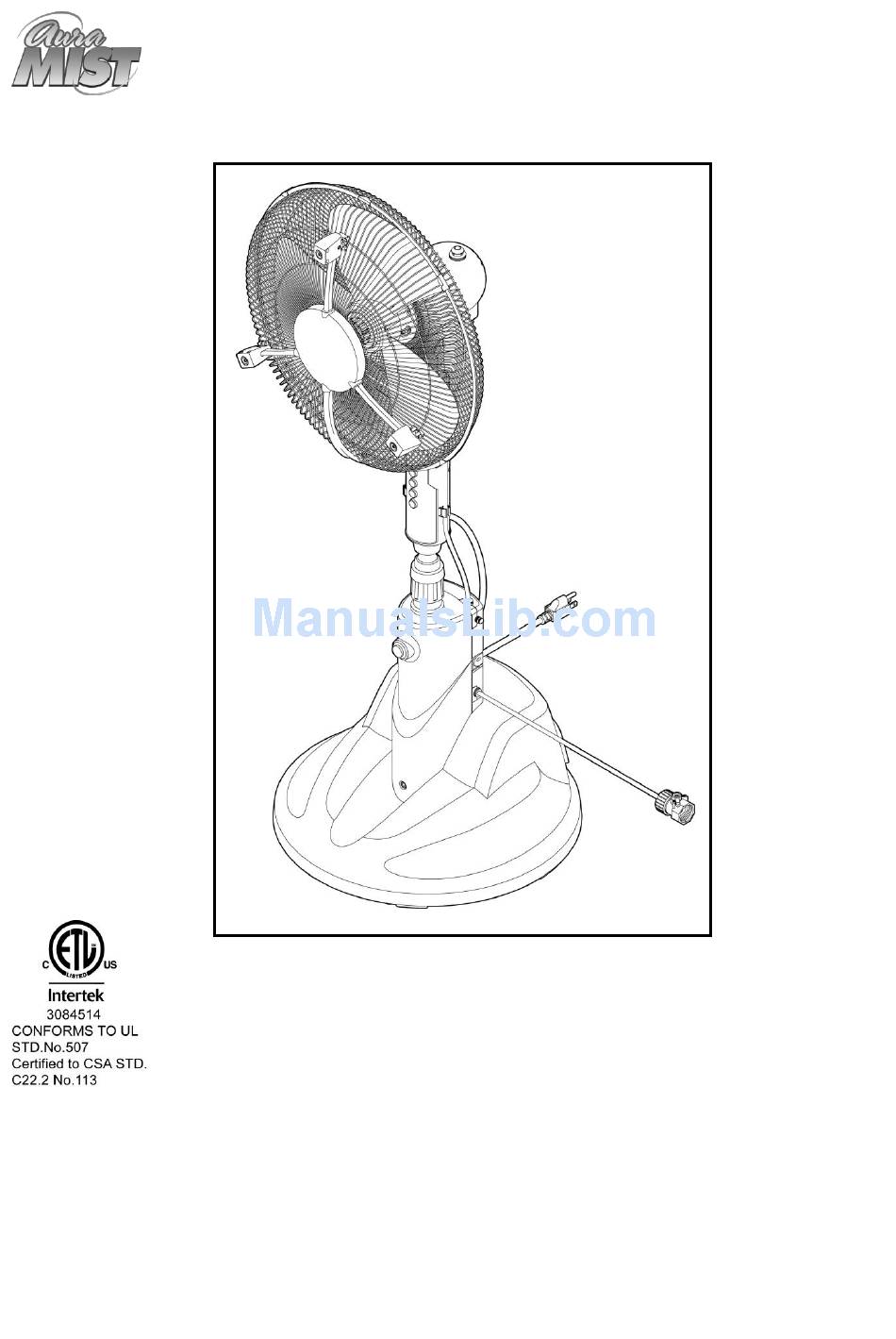

16" Outdoor Misting / Oscillating Fan
Model Number:
AMMF16R-1
Owner's Manual
READ AND SAVE THESE INSTRUCTIONS
CAUTION:
Before using this product, read this manual and follow all safety rules and operating instructions.
Failure to comply with instructions could result in personal injury and/or property damage.
IMPORTANT:
For replacement parts or assembly questions call 1-800-320-6478 or go to www.auramist.net
AMMF16R-1
Rev. 02/11
1
