AuraMist AMMF16R Owner's Manual

16” outdoor misting/oscillating fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

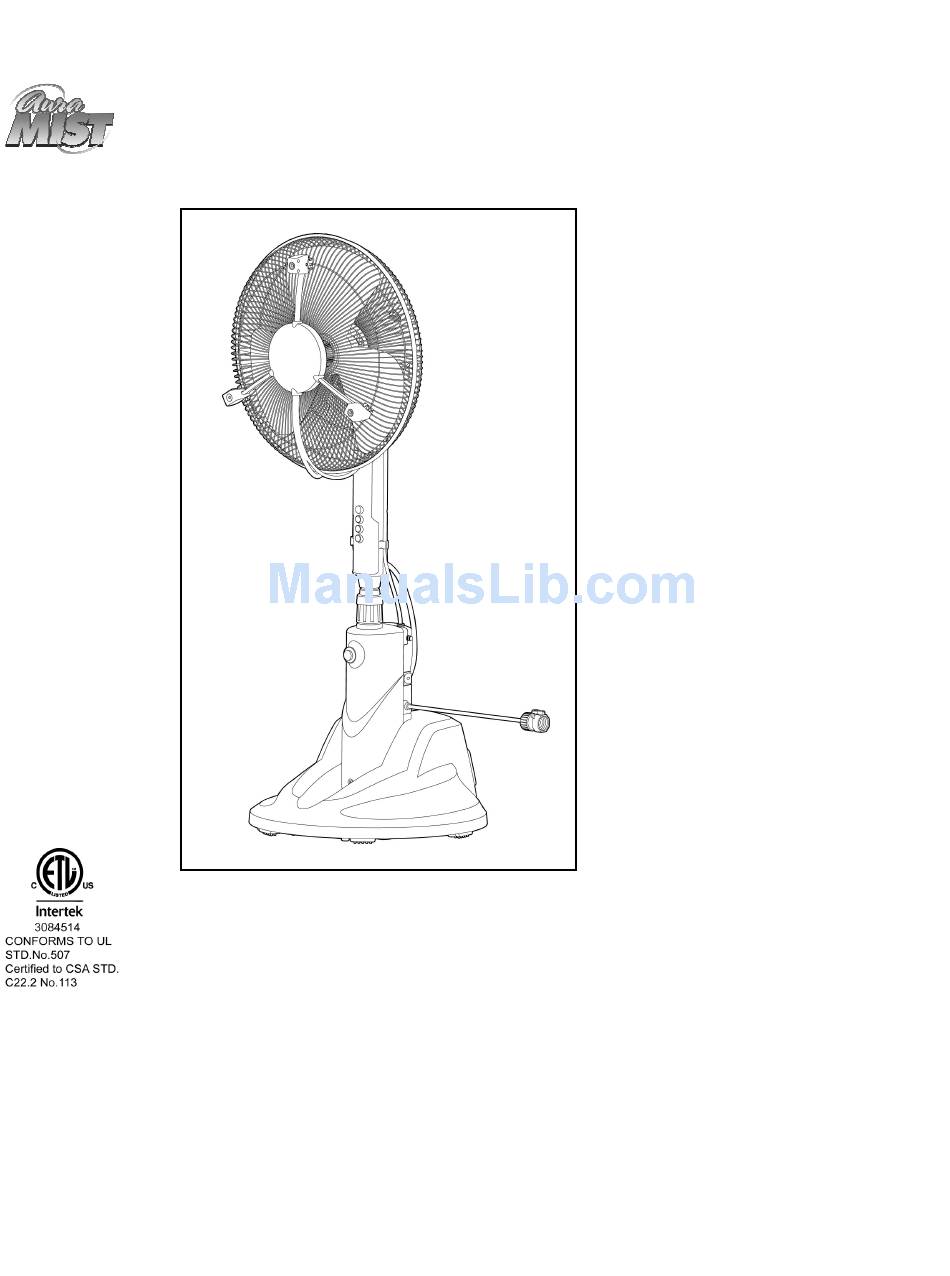

16" Outdoor Misting/Oscillating Fan
Model Number:
AMMF16R
Owner's Manual
READ AND SAVE THESE INSTRUCTIONS
CAUTION:
Before using this product, read this manual and follow all safety rules and operating instructions. Failure
to comply with instructions could result in personal injury and/or property damage.
IMPORTANT:
For replacement parts or assembly questions call 1-800-320-6478 or go to www.auramist.net
AMMF16R
Rev. A 07/10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMMF16R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AuraMist AMMF16R

Summary of Contents for AuraMist AMMF16R

  • Page 1 Before using this product, read this manual and follow all safety rules and operating instructions. Failure to comply with instructions could result in personal injury and/or property damage. IMPORTANT: For replacement parts or assembly questions call 1-800-320-6478 or go to www.auramist.net AMMF16R Rev. A 07/10...

  • Page 2: Table Of Contents

    If safety information is not followed, someone could be seriously injured or killed. CAUTION: If safety information is not followed someone may be injured. When using this misting fan follow basic safety precautions including the following: AMMF16R Rev. A 07/10...
  • Page 3 17. Do not leave the misting fan unattended when it is plugged in. Unplug it from the power outlet when not in use and before servicing. Turn off the misting fan before unplugging. AMMF16R Rev. A 07/10...
  • Page 4 27. Do not hang or mount misting fan on a wall or ceiling. 28. Do not operate without misting fan guards properly in place. CAUTION: DO NOT USE IN A WINDOW. FAILURE TO DO SO COULD RESULT IN THE PRODUCT COMING APART DURING OPERATION AND/OR PERSONAL INJURY. AMMF16R Rev. A 07/10...

  • Page 5: Carton Contents

    3. Rear fan guard nut (screw on motor housing) 4. Fan blade 5. Fan blade nut (screw on motor axis) 6. Power base assembly 7. Fan head assembly 8. Fan pole assembly 9. Fan pole screw 10. Screws AMMF16R Rev. A 07/10...

  • Page 6: General Assembly Instructions

    10. Connect the air and water tubes to the connectors on the misting fan pole assembly. The water is the smaller tube. Make sure the tube is pushed all the way into the connector, and then make the electrical connection (fig.11) AMMF16R Rev. A 07/10...

  • Page 7: Operation Instructions

    The misting fan and/or misting system may start up when the unit is initially plugged to the power outlet. DO NOT USE THE MISTING FEATURES INDOORS. AMMF16R Rev. A 07/10...
  • Page 8 To prevent the accumulation of mineral deposits, let the pump run for 2 minutes after closing the ball valve so the air pump can clear the remaining water from the nozzles. Turn the pump switch to the OFF position when complete. (fig.9) AMMF16R Rev. A 07/10...

  • Page 9: Maintenance

    Semi annual replacement of both the air and water filters ensures the life of your system. • Remove the filter cover and locate the air and water filters. (fig.1). AMMF16R Rev. A 07/10...
  • Page 10 1. Open the fuse box cover and remove the old fuse. (fig.1 & 2) 2. Install the new fuse. (fig 3) 3. Reinstall the fuse box cover. Make sure the waterproof sealed washer is aligned correctly. (fig 4) AMMF16R Rev. A 07/10...

  • Page 11: Storage

    5. Order and replace nozzle Mist is not balanced on 1. Low water flow 1. Adjust the water flow control valve three nozzle 2. Water hose leaks 2. Turn off mist fan motor, and feel any air leaks on hoses AMMF16R Rev. A 07/10...

  • Page 12: Exploded View

    Exploded View AMMF16R Rev. A 07/10...

  • Page 13: Parts List

    ZF01MF.10.02 fan blade ZF01MF.10.21 blade nut ZF01MF.10.01 front guard grill TODQ56.05.01 5A fuse FV9144.00.03 nozzle housing frame ZF01MF.00.05 front cover TODXD9.18.UL power cable asm. ZF01MF.00.03 filter door ZF01MF.A0.04 pole cover asm. WVDQ10.05.06 pump switch AMMF16R Rev. A 07/10...

  • Page 14: Warranty

    In either case copy of your proof of purchase will be required. In case that any mechanical or electrical repairs are required during the warranty period send your complete product, postage or freight prepaid to the auraMIST service center near you. Call the number below to get the nearest service center.
