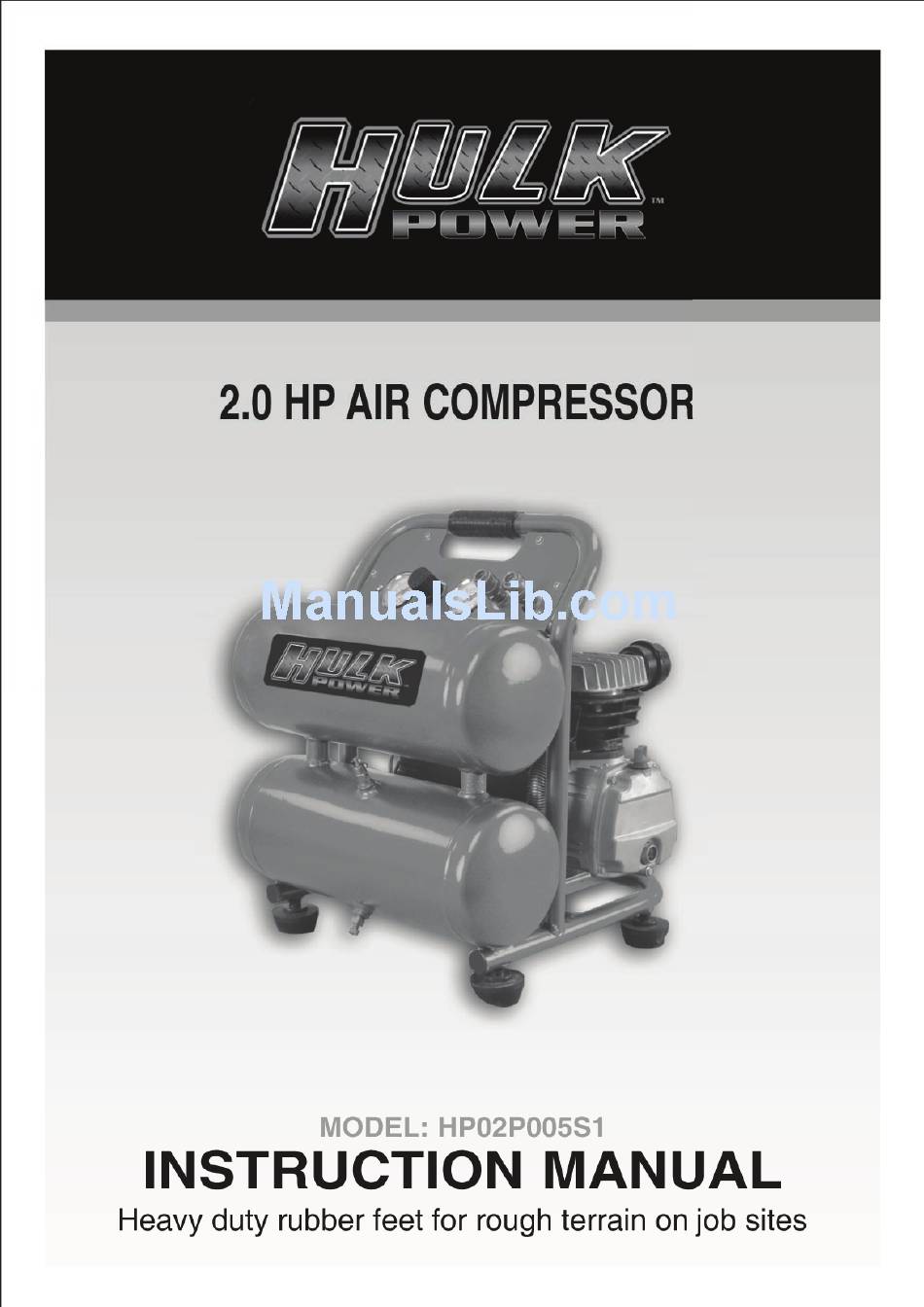

Summary of Contents for Hulk HP02P005S1
-
Page 2: Disclaimer Of Warranties
In the event the compressor is used for the purpose of breathing air application and proper in-line safety and alarm equipment is not simultaneously used, existing warranties are void,and Hulk air force technology & AIRBASE Industries, LLC disclaims any liability whatsoever for any loss, personal injury or damage. -
Page 3: Proof Of Purchase
To take advantage of this warranty, the manufacturer part must be returned for examination by the retailer. Shipping and handling charges may apply. If a defect is found, HULK will either repair... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE HOW TO PREVENT WHAT CAN HAPPEN Always operate the compressor in a well ventilated area free of It is normal for electrical contacts within the motor and pressure combustible materials, gasoline or solvent vapors. If spraying switch to spark. -
Page 5: Specifications
SPECIFICATIONS & ELECTRICAL INFORMATION SPECIFICATIONS Model ....................................HP02P005S1 Voltage ......................................110V Horsepower ....................................2.0 HP Amperage ......................................11.5A RPM (no load speed) ..................................1,720 Phase ........................................1 Hertz ......................................60Hz Operating pressure ..................................125 PSI Tank size ..................................2.5 x 2.5 Gallon WARNING ALL ELECTRICAL INSTALLATIONS MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE PERFORMED WITH THE COMPRESSOR DISCONNECTED FROM THE POWER SOURCE. -
Page 6: Operation Controls
OPERATION CONTROLS AIR COMPRESSOR PUMP. To compress air, the piston moves up and down in the cylinder. On the downstroke, air is drawn in through the intake valves. The exhaust valves remain closed. On the upstroke of the piston, air is compressed. The intake valves close and compressed air is forced out through the exhaust valves. - Page 7 BREAK-IN PROCEDURES & OPERATION LOCATION OF THE AIR COMPRESSOR Your compressor comes almost completely assembled. Only the air filter needs to be installed. Operate the air compressor in a dry, clean, cool, well ventilated area. The air compressor pump and case are designed to allow for proper cooling. Clean or blow off dust or dirt that collects on the air compressor.
-
Page 8: Maintenance And Storage
MAINTENANCE & STORAGE MAINTENANCE the cord plug are making good contact in the outlet. Also, check for Before doing any maintenance or adjustments to your air compressor, blown fuses or open circuit breakers in the line. the following safety precautions should be taken: STORAGE - Disconnect electrical power. - Page 9 PARTS DIAGRAM MODEL: HP02P005S1...
- Page 10 PARTS LIST MODEL: HP02P005S1 Part Number Description Part Number Description Cap screw FB30305012 CS30106090 Flange hd hex. bolt Spring washer FB30305022 SW30502060 lange hd hex. bolt Cylinder head MB20203002 CH00102001 Motor bracket Air filter FB30306021 AF50901020 lange hd hex. bolt...
- Page 11 937-540-1157...
