Hulk HP05V080Y1 Operating Manual

5hp 80 gallon 1 stage single phase 3 cylinder air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1
7/18/2011
HULK COMPRESSOR
Operating Manual
Model:
HP05V080Y1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP05V080Y1 and is the answer not in the manual?

Questions and answers

Related Manuals for Hulk HP05V080Y1

Summary of Contents for Hulk HP05V080Y1

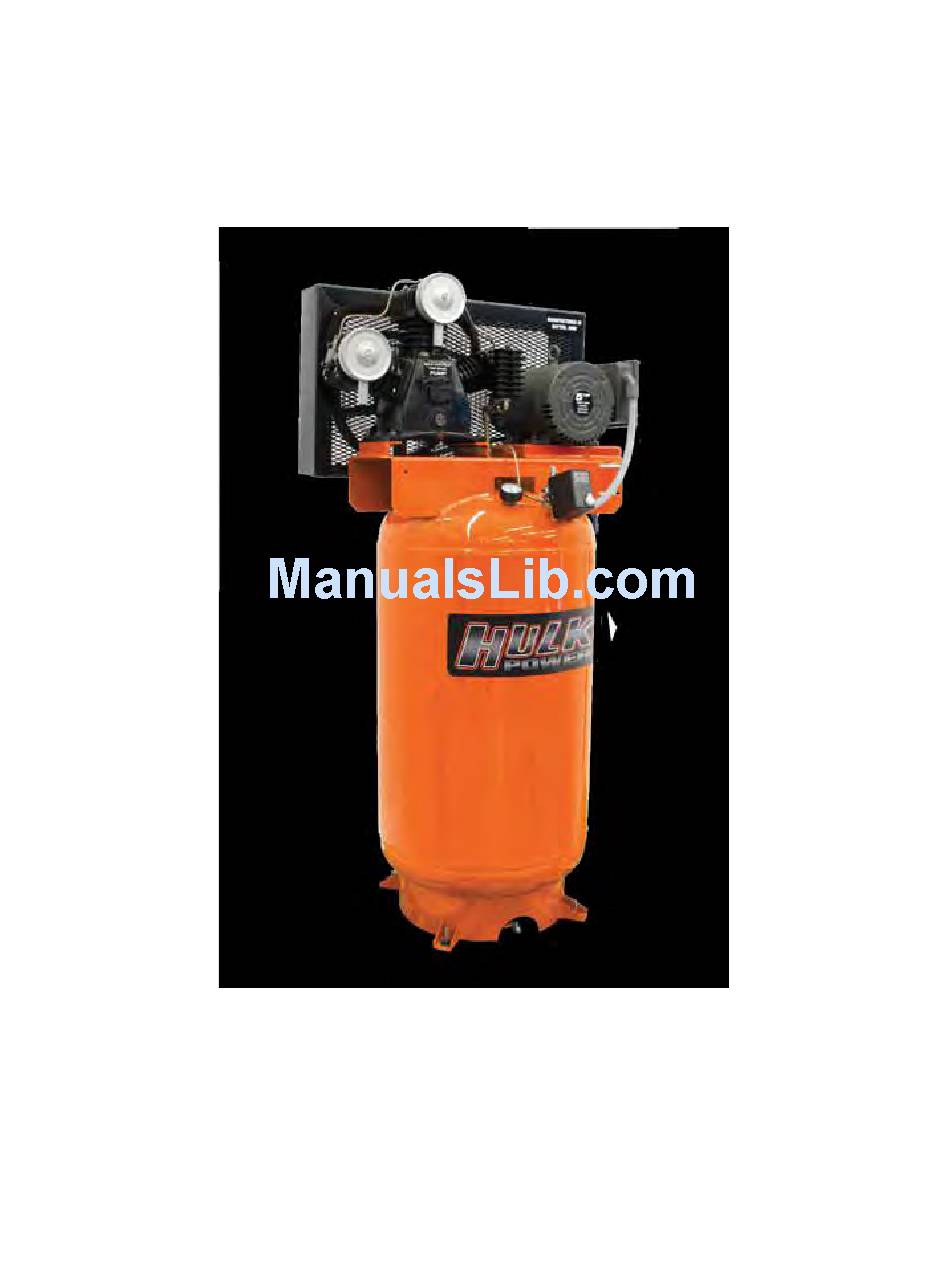

  • Page 1 5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 HULK COMPRESSOR Operating Manual Model: HP05V080Y1...

  • Page 2: Breathable Air Warning

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 DANGER! Breathable Air Warning This compressor/pump is NOT equipped and should NOT be used “as is” to supply breathing quality air. For any application of air for human consumption, you must fit the air compressor/pump with suitable in-line safety and alarm equipment.

  • Page 3: Power Supply And Wiring

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 In order to receive maximum performance and long life from your compressor, the following instructions should be read carefully and all points regarding installation and operation of the unit should be noted and observed.

  • Page 4: Three Phase Motors

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 Hook your hot leads to the wiring terminals opposite of the motors wires. Hook one hot lead to 1L1. Another hot lead to 3L2. Hook ground wire to our ground wire.

  • Page 5: Operation And Care

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 Never install a shut-off valve (e.g. glove or gate valve) between the compressor discharge opening and the receiver unless a safety valve is installed in the line between this valve and the compressor.

  • Page 6: Belt Adjustment

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 BELT ADJUSTMENT Always pull the motor disconnect switch before working on the belts so the motor cannot start up unexpectedly. When belt tension is adjusted properly, the belts can be depressed at a point midway between the motor pulley and the flywheel approximately one half inch.

  • Page 7: Maintenance-Trouble Shooting-Repairs

    5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 Maintenance-Trouble Shooting-Repairs SLOW PUMPING OR INSUFFICIENT PRESSURE CAN BE CAUSED BY: Clogged inlet filter (disassemble and clean thoroughly). Leaks in air lines, valves, fittings, etc. (Locate by using soapy water if necessary; replace or tighten threaded parts).
  • Page 8 5HP 80 gallon 1 Stage Single Phase 3 Cylinder Air Compressor –HP05V080Y1 7/18/2011 APP3Y0521T...
