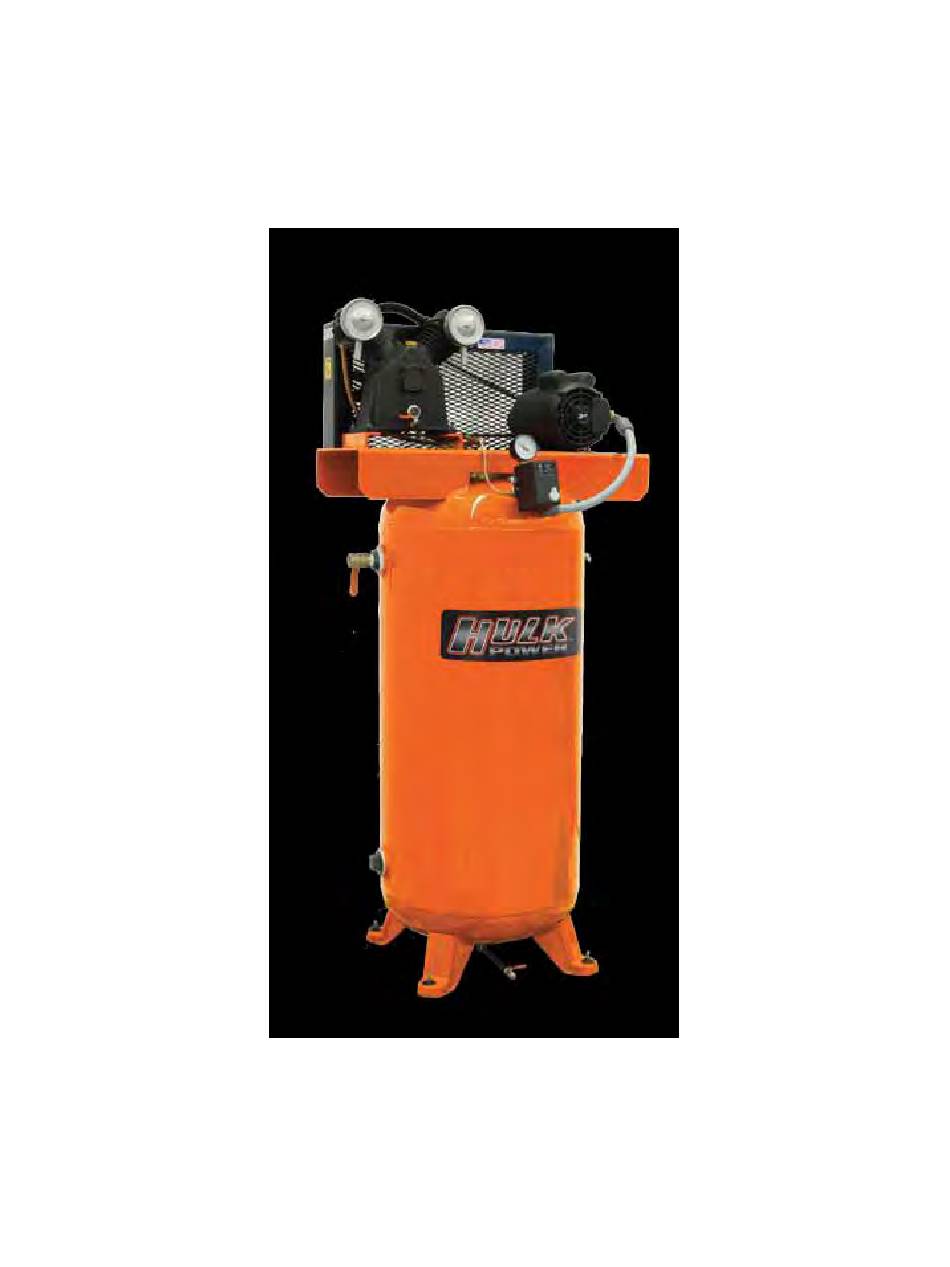

- Page 1 HP03V060S1 HULK Compressor 3HP 60 Gallon 2 cylinder piston Operating Manual Model: HP03V060S1...
-
Page 2: Breathable Air Warning
HP03V060S1 DANGER! Breathable Air Warning This compressor/pump is NOT equipped and should NOT be used “as is” to supply breathing quality air. For any application of air for human consumption, you must fit the air compressor/pump with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Association Commodity Specification G 7.1 –... -
Page 3: Power Supply And Wiring
HP03V060S1 unit should be noted and observed. Carefully reading this manual before connecting anything to the motor or compressor is necessary for optimum trouble-free operation. Inspection Check for possible damage from transit and test the pulley by turning it freely with your hands. -
Page 4: Three Phase Motors
HP03V060S1 Hook your hot leads to the wiring terminals opposite of the motors wires. Hook one hot lead to 1L1. Another hot lead to 3L2. Hook ground wire to our ground wire. Three Phase Motors: Hook one hot lead to 1L1 lug, hook another to the 3L2 lug and then hook the third to 5L3. Run ground wire to our ground lug. - Page 5 HP03V060S1 Never install a shut-off valve (e.g. glove or gate valve) between the compressor discharge opening and the receiver unless a safety valve is installed in the line between this valve and the compressor. Never operate the pump at a pressure or a speed in excess of those recommended by the factory.
-
Page 6: Operation And Care
HP03V060S1 OPERATION AND CARE SERVICE All units are shipped with break-in oil. Oil should be changed within the first 50 hours or 30 days of use (whichever comes first). Use a Mobil RARUS 427 which is available through your dealer or any non-detergent 30 weight air compressor oil. -
Page 7: Maintenance-Trouble Shooting-Repairs
HP03V060S1 Maintenance-Trouble Shooting-Repairs SLOW PUMPING OR INSUFFICIENT PRESSURE CAN BE CAUSED BY: Clogged inlet filter (disassemble and clean thoroughly). Leaks in air lines, valves, fittings, etc. (Locate by using soapy water if necessary; replace or tighten threaded parts). Compressor too small for equipment application. Check air requirements vs. compressor capacity and consult dealer. - Page 8 HP03V060S1 APR2V0314S- Free floating Valve Pump...
- Page 9 HP03V060S1 HULK PUMP MODEL: APR2V0314S Part# Part Description Q'ty Part# Part Description Q'ty Splash oil nail Bolt Spring Washer Spring Washer T Coupling Bolt Pulley gasket Cooling pipe Elbow Pulley Air filter assembly Cylinder head Breather Cylinder head gasket Bearing bracket...
