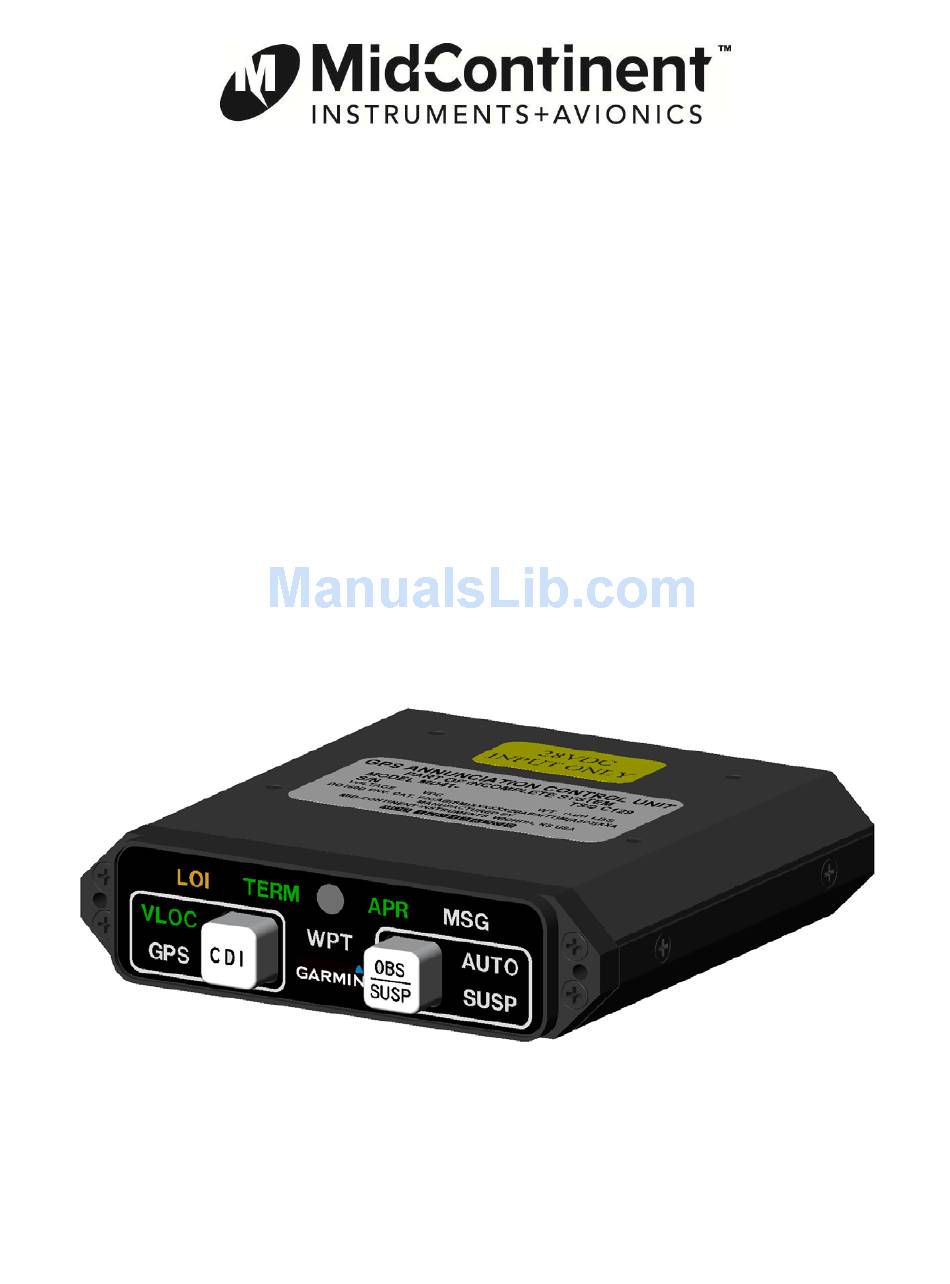

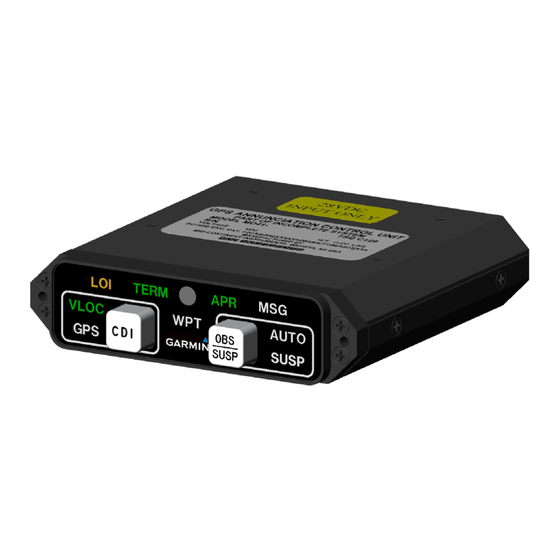

INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
MD41-151X Series
Annunciation Control Unit
For Garmin GPS Systems
28vdc
Horizontal Mount
28vdc
Vertical Mount
14vdc
Horizontal Mount
14vdc
Vertical Mount
28vdc
Horizontal Mount, 5vdc lighting
28vdc
Vertical Mount, 5vdc lighting
Manual Number 9017211
REV. B October 28, 2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Midcontinent MD41-1510
Summary of Contents for Midcontinent MD41-1510
- Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS MD41-151X Series Annunciation Control Unit For Garmin GPS Systems MD41-1510 28vdc Horizontal Mount MD41-1511 28vdc Vertical Mount MD41-1512 14vdc Horizontal Mount MD41-1513 14vdc Vertical Mount MD41-1514 28vdc Horizontal Mount, 5vdc lighting MD41-1515 28vdc Vertical Mount, 5vdc lighting...
- Page 2 FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. If further information is required, please contact: Mid-Continent Instruments and Avionics Attn: Customer Service Dept. 9400 E. 34 ST North Wichita, KS 67226 USA Phone 316-630-0101 Fax 316-630-0723...
- Page 3 REVISION DETAIL Rev. Date Detail 02/21/11 Initial release. 6051 10/28/13 Updated Technical Specifications to include compatible Garmin GPS Systems. REV. B October 28, 2013 Manual Number 9017211...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 MODELS 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 PERFORMANCE SECTION 2 INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS TECHNICAL SPECIFICATIONS SECTION 3 INSTALLATION PROCEDURE GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1 LIGHTING CONTROLS 3.3.2... -
Page 5: General Description
Highlighted features include long-life LEDs used for all lighting, internally backlit selection switches, dead- front inactive annunciations, and the installation option for manual or automatic dimming. An external annunciation dimming adjustment is provided for balancing low-level light conditions. TECHNICAL SPECIFICATIONS 1.2.1 MODELS Unit Configurations MD41-1510 MD41-1512 MD41-1514 Orientation Horizontal Horizontal Horizontal... -
Page 6: Cooling
Table 1.3 SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING No direct cooling is required. As with any electronic equipment, overall reliability may be increased if the unit is not located near a high heat source or crowded next to other equipment. Means of providing some airflow would be considered beneficial. - Page 7 Approval Holder-Quality System Manual, Revision M, dated April 14, 2011 or later. The MD41-151X series complies with the manufacturers’ specifications and has been verified and approved for use with the following systems: Mid-Continent Instruments and Avionics Designed for use with Model Number(s): GPS System: MD41-1510 Manufacturer: Garmin MD41-1511 Model(s): 650/750 MD41-1512...
-
Page 8: Installation Procedure
SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the MD41 series ACU. After installation of cabling and before installation of the equipment, ensure that power is applied only to the pins specified in the interconnect diagram. UNPACKING AND INSPECTING EQUIPMENT When unpacking this equipment, make a visual inspection for evidence of any damage that may have incurred during shipment. -
Page 9: Mounting
MOUNTING Refer to Section 2: Pre-Installation Considerations in regards to equipment location. The MD41 ACU is designed for rear panel mounting only. A cutout should be made in the panel in accordance with Figure 3.4 for the unit bezel and two mounting holes. A cutout template is available from Mid-Continent Instruments and Avionics (reference p/n 8014458) upon request. - Page 10 3.20 MAX 0.125 0.156 typ 0.80 2.73 3.00 3.25 MD41-1510 MD41-1511 MD41-1512 MD41-1513 MD41-1514 MD41-1515 Note: Use two 4-40 X 3/8” Flat Head Phillips Screws for Mounting FIGURE 3.4 OUTLINE DRAWING REV. B October 28, 2013 Manual Number 9017211...
- Page 11 1) REFER TO GARMIN GTN 6XX/7XX INSTALLATION MANUAL FOR ACTUAL INSTALLATION. 2) ALL WIRING SHALL BE 24 AWG UNLESS OTHERWISE NOTED. 3) MOMENTARY SWITCH FOR TEST. (optional connection) 4) 5 VOLT FOR MD41-1514/1515, 14 VOLT FOR MD41-1512/1513, AND 28 VOLT FOR MD41-1510/1511. FIGURE 3.5 WIRING DIAGRAM REV.
-
Page 12: Operation
SECTION 4 OPERATION FRONT PANEL CONTROLS AND ANNUNCIATIONS 4.1.1 CONTROLS Momentary Switch, when pressed, will select VLOC, or GPS presentation on HSI/CDI OBS/SUSP Momentary switch, when pressed, will select OBS, or SUSP. In OBS MODE, this will enable OBS selection input from a remote HSI/CDI indicator. -
Page 13: Conformance
SECTION 5 CONFORMANCE CONTINUED AIRWORTHINESS STATEMENT No periodic scheduled maintenance or calibration is necessary for continued airworthiness of the MD41 series ACU. If the unit fails to perform to specifications, the unit must be removed and serviced by Mid- Continent Instruments and Avionics or their authorized designee. ENVIRONMENTAL QUALIFICATION STATEMENT NOMENCLATURE: GPS Annunciator Control Unit (ACU)
