Connections

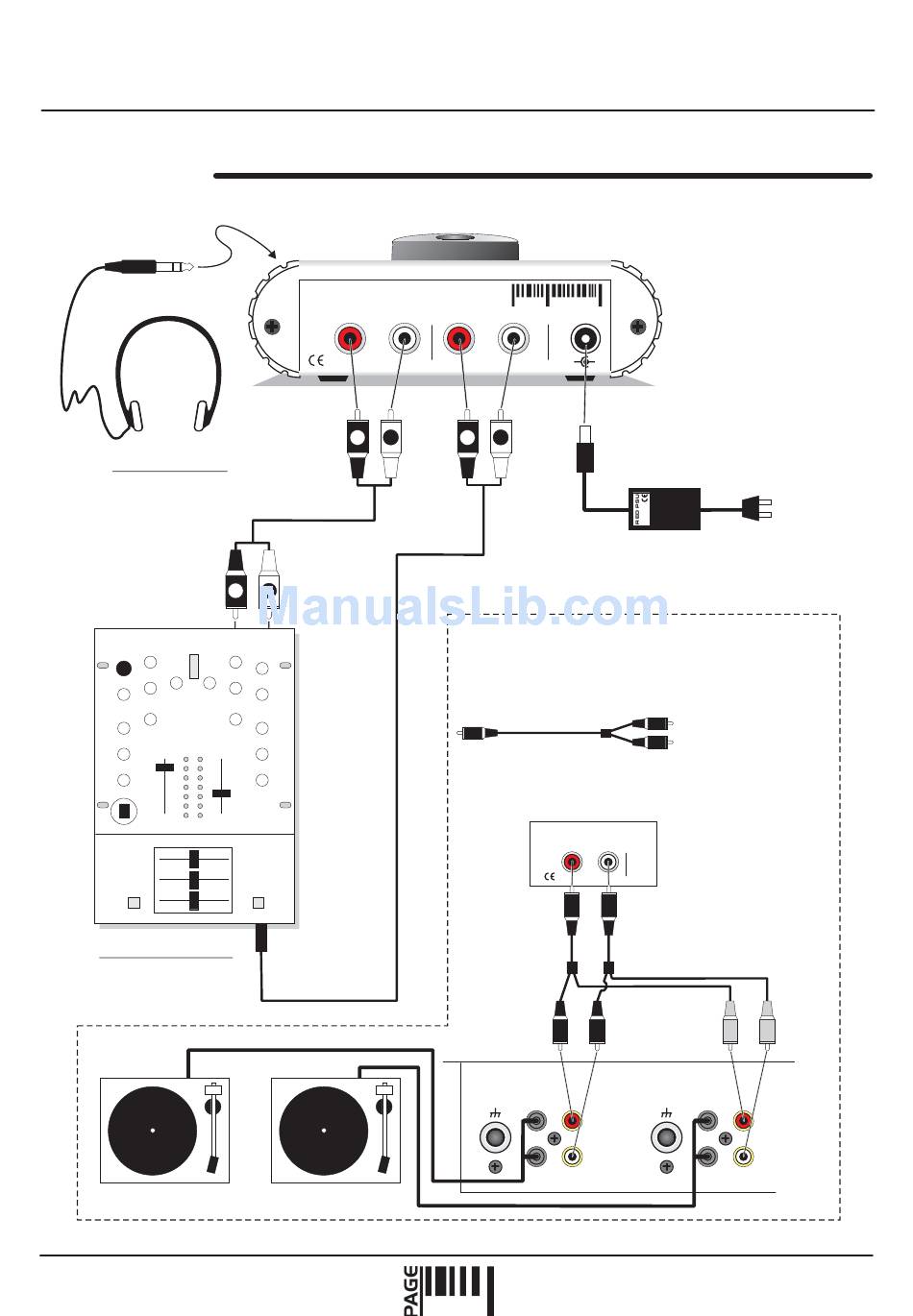

CONNECTIONS
CONNECT TO
FRONT PANEL
SOCKET
HEADPHONES
STEREO RCA TO RCA
CONNECT TO
SPARE INPUT
CHANNEL ON
MIXING DESK
DJ MIXING DESK
ANALOG TURNTABLE
SoundBITE - DJ Loop Sampler
SoundBITE
AUTO - LOOP MODULE
LOOPS OUT
R L
R L
R L
HEADPHONE
MONITOR
OUTPUT
ANALOG TURNTABLE
Red Sound
INPUT POWER
[ 9vDC ]
-
R L
R L
INPUT CABLE [SUPPLIED] -
6.3mm TO RCA STEREO
ALTERNATIVE 'LOOPS OUT' CONNECTION
FOR USE WITH 2 CHANNEL MIXING DESK +
VINYL RECORD DECK SYSTEM
2 x OUTPUT CABLES [SUPPLIED] -
1 x RCA TO TWIN RCA
LOOPS OUT
R
CHANNEL 2
SIGNAL PHONO CD/LINE
GND
R
L
4
+
The unused CD/line
inputs on a 2 channel
desk + vinyl deck
s y s t e m c a n
c o n n e c t e d t o t h e
[LOOPS OUT] sockets
using the special 1 into
2 RCA cables supplied.
L
In this way, the loops
can always be brought
in on the crossfader by
s w i t c h i n g t h e c u e
channel to CD/Line.
CHANNEL 1
SIGNAL PHONO CD/LINE
GND
R
L
TO
AC WALL
SOCKET
