USERS GUIDE
Mechanical Timer, 24 Hour
LOGIC +
Combi
LOGIC
Combi
LOGIC
Combi E
LOGIC
Combi ES
When replacing any part on this appliance, use only spare parts that you can be
assured conform to the safety and performance specification that we require.
Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
Advertisement
Table of Contents
Related Manuals for IDEAL LOGIC+ Combi
Summary of Contents for IDEAL LOGIC+ Combi
- Page 1 When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.

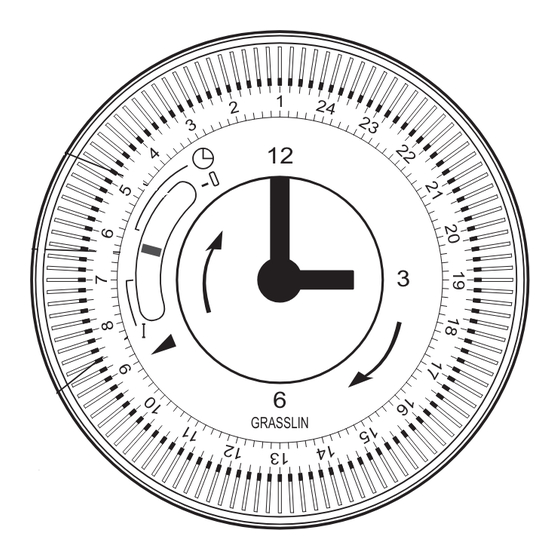

- Page 2 Mechanical Timer, 24 Hour Outer dial SETTING UP The outer dial should be set to the current time. Rotate the dial slowly in a clockwise direction, until the correct hour is aligned with 24hr clock the arrow printed on the dial. Note that the outer dial is printed with the 24hr clock Align current...
- Page 3 PROGRAMMING SWITCHING TIMES Set tappets to outer edge for ON periods and set tappets to inner edge for OFF periods. The example shown has been set with 2 on OFF PE- periods. RIOD ON PE- ON at 9.00am. OFF at 1.00pm. (13 hours) RIOD ON at 6.00pm.
