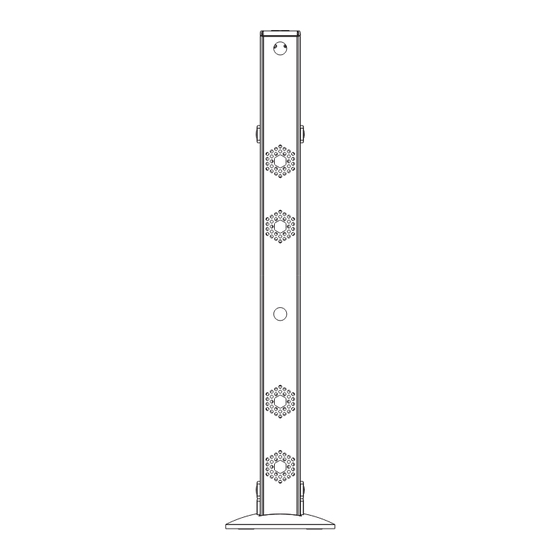

MODEL: PSP297
INSTRUCTION MANUAL
Please read this instruction manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSP297 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ProScan PSP297

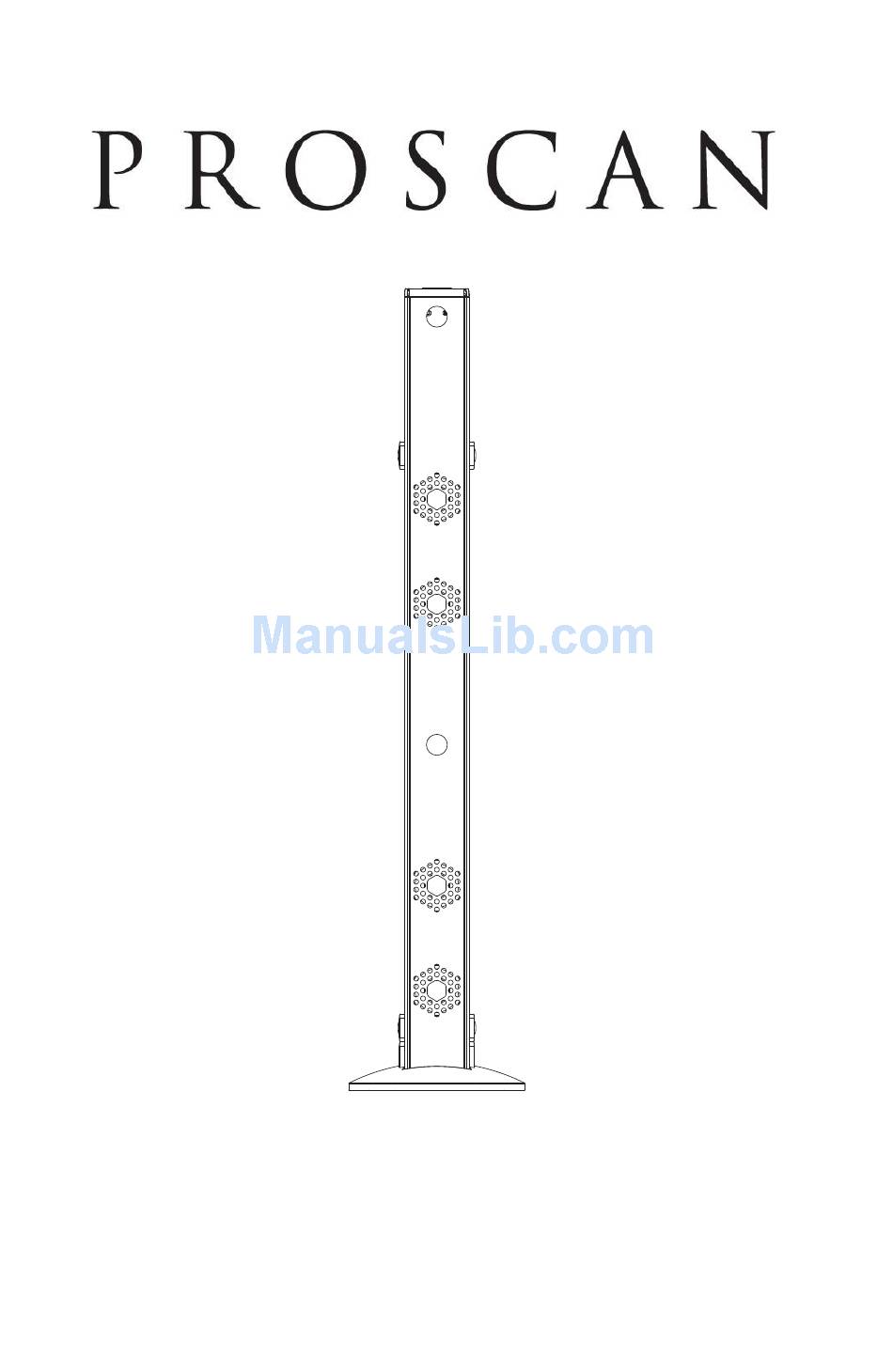

  • Page 1 MODEL: PSP297 INSTRUCTION MANUAL Please read this instruction manual carefully and keep it for future reference.
  • Page 2 The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT The exclamation point within an equilateral triangle REMOVE COVER (OR BACK).
  • Page 4 1. Placing the device on table Ventilation When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from the Sound Bar could produce a potential heat hazard.
  • Page 5 MOUNTING We recommend having this speaker professionally mounted. By using the included wall mounting accessories, the sound bar can be mounted onto a wall. 26.9 inches FM ANT DC IN 16V OPTICAL IN AUX 1...
  • Page 6: Product Overview

    PRODUCT OVERVIEW Front View Remote Sensor Mode Indicator Back View Model No.:PSP297 FM ANT TOWER STEREO SYSTEM POWER SUPPLY: DC 16V DC IN 16V POWER CONSUMPTION:48W S / N : A 1 4 0 4 1 0 8 8 1 0 0 0 0 0 0 1 FM FREQUENCY RANGE:87.5-108MHz...
  • Page 7: Remote Control

    REMOTE CONTROL STANDBY 1. STANDBY 2. VOL- ( volume down ) 3. SOURCE 4. BASS - 5. TREBLE - PAIR /TUNE - /MO/ST ( play/pause/mono/stereo ) (mute) MO/ST 9. VOL+ ( volume up ) 10. BASS + 11. PAIR 12. TREBLE + 13.
  • Page 8 FM RADIO Power on the unit and press the SOURCE button on remote control or the SOURCE button on control plate until the indicator light turns purple. 1. Press FM SCAN button on control plate to search manually to play the searched station.
  • Page 9: Aux-In 1 Connection

    AUX-IN 1 CONNECTION - RCA AUX IN sources may include •TV/DVD/VCR - RCA AUX IN connection 1. Connect the RCA audio cable (supplied) to the audio output jack on DVD player and AUX 1 or AUX 2 jack on the rear of DVD. 2.
  • Page 10: Aux-In 2 Connection

    AUX-IN 2 CONNECTION - AUX IN source may include: •Personal audio players •Personal computers or laptops - AUX IN connection: 1. Connect a stereo 3.5mm jack cable (supplied) between the headphone or INE/Audio output of the personal audio player and the AUX-IN 2 jack on the side of the unit.
  • Page 11 4. Choose “add a new Bluetooth device”or “setup Bluetooth device”on your device. It will start to search. Once “ ”shows on your device, select it. If your PSP297 device prompts you for a pass code, please enter "0000". I f the pairing attempt "0000"...
  • Page 12 CONNECT THROUGH OPTICAL (Only for PCM format) OPTICAL IN source may include TV, DVD, etc. Optical Cable (not included) FM ANT DC IN 16V OPTICAL IN AUX-IN 1 Optical Input Jack of the unit 1. Connect one end of Optical cable to the "Optical In " jack on the rear of the unit as the figure above.
  • Page 13: Troubleshooting Guide

    TROUBLESHOOTING GUIDE No power AC plug not connected to the Plug to the wall outlet. wall outlet Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected No sound The connected device is not device as usual and make sure the in payback mode volume level of it is in high level...
  • Page 14: General Specifications

    GENERAL SPECIFICATIONS AC INPUT....................100-240V~50/ 60Hz DC INPUT..................DC 16V; 3A, Radio Coverage..................FM 87.5 -108.0 MHz Output power ................. 2x10W RMS + Subwoofer 20W Bluetooth Effective Range in Open Aera...............Up to 32 feet Remote Effective Range..................Up to 16 feet 1 x AC/DC Adaptor 1 x Remote Control, using CR 2025 button cell ( Included) 1 x Stereo Audio Connection Cable with 3.5mm stereo plugs 1 x User's Manual...
