Summary of Contents for ProScan PSS2115I

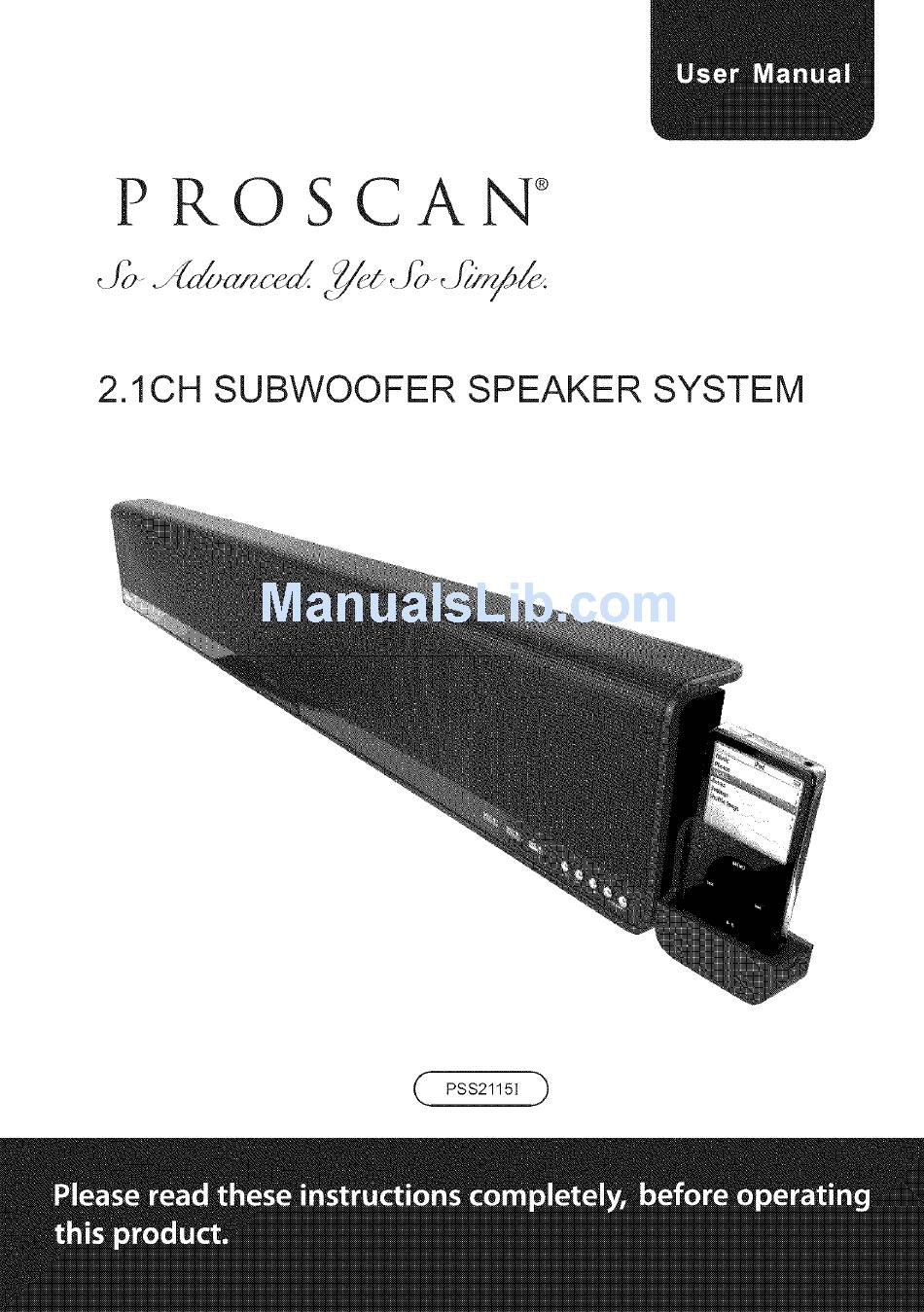

  • Page 1 PROSCAN 2. lCH SUBWOOFER SPEAKER SYSTEM PSS2115!
  • Page 2 L Eil/lim ilii CAUTION CAUTION" TO REDUCE THE RISK OF ELECTRIC SHOCK, REMOVE COVER BACK). USER- SERVICEABLE PARTS INSIDE. REFER SERVICING QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3: Surge Protectors

    INFORMATION: This equipment complies with Class B digital device regulations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 4 Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. example, this unit may not have the capability to be connected to an outdoor antenna.
  • Page 5 operate from battery power, or other sources, refer to the operating instructions. GROUNDING OR POLARIZATION This product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug wilt fit into the power outlet only one way. This is a safety feature.
  • Page 6 wire to an antenna discharge product, size of grounding conductors, location of antenna discharge product, connection to grounding electrodes and requirements for grounding electrodes. SERVICING Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
  • Page 7 1. Standby Indicator 2. Display 3. Remote Sensor STANDBY/ON (_b) Button INPUT Button PLAY/PAUSE (_,11) Button (iPod) VOLUME + Button sRs(o) ® iPod Dock V©LUME-Button INPUT - VOLUME...
  • Page 8 REAR 1234 DVD Audio Left and Right Audio In Jacks TVAudio Left and Right Audio In Jacks S-Video OUT Jack Video Out Jack ACINPUT O[_]]AC~120V/60Hz T2L250V FUSE AC Cord Fuse POWER ON/OFF Switch...
  • Page 9 REMOTE STANDBY/ON (¢) button MUTE button INPUT button SOUND button PLAY/PAUSE (IHI) Button (iPod) Skip/Search Button (iPod) Skip/Search i_I,I Button (iPod) MENU button (iPod) Navigation Button (iPod) 10. SELECT button (iPod) 11. Navigation DOWN Button (iPod) 12. BASS - button 13.
  • Page 10: Remote Battery Installation

    Insert the AC plug (with the 2 blades) into a conveniently located AC outlet having 120V, 60Hz. NOTE: The AC plug supplied with the unit is polarized to help minimize possibility of electric shock. plug does into AC Outlet nonpolarized AC outlet, do not file or cut the wide blade.
  • Page 11 ..i ..======== Hole Plastic If hanging below a hung TV, make sure to leave at least 40ram ScPew(M4_161_l_)_2pcs between the TV and this unit. Measure for the holes in the wall as Attach the Wall Mount Bracket to shown, and then drill holes using an the wall using the eight ST4x40mm 8mm drill bit.
  • Page 12 If you are using an iPod that has photo/video capability, and your TV has a standard video or an S-Video input, you can connect the unit to the external TV with the Video cable or an S-Video cable (not included). You will then be able to view the photos/videos from the iPod on your external TV.
  • Page 13 Connect a DVD to the DVD Audio in jacks and a TV to the TV Audio in jacks to output the sound through this speaker. DVD VIDEO OUT TV AUDIO OUT TV VIDEO DVDAUDIO DVD: To listen to the DVD player connected to the DVD tn jacks, press the INPUT button until DVD appears in the display.
  • Page 14 VOLUME Press the VOLUME - button O to Repeatedly press the SOUND decrease VOLUME button cycle through EQ/Bass settings (BYPASS, SRS- buttonO to increase the volume. The volume level will be indicator WOW, TSXT TSXT-DC) pick the desired sound preference. briefly in the display.
  • Page 15 Slide the iPod into the Universal Rotate the iPod compartment shown. Insert the Universal Dock Dock shown). Gently push included with your iPod (A) into down so the connector on the iPod compartment iPod slides onto the connector shown), making sure the tabs are this unit.
  • Page 16 USING AN iPod WiTH THIS UNiT With iPod connected (see Repeatedly press the INPUT previous page), if this unit is not button select iPod mode; already turn this unit on by "iPod" will appear in the display. pressing POWER ON/OFF You can operate the iPod using its switch...
  • Page 17 To navigate your iPod menus: To navigate your iPod menus time, press MENU (continued): button to go back to the previous Navigation UP O DOWN button browse screen/menu. Repeatedly press the MENU button to return to the through the menus. Then, press Main menu.
  • Page 18 tf you experience a problem with this unit, check the chart below before calling for service. SYMPTOM CAUSE SOLUTION No sound from iPod. Volume is Increase volume using set to minimum. VOL + / - buttons. Check the connection Incorrectly connected. (see page 12).
  • Page 19 Model..................P SS21151: Connection interface: Input ..............1 x iPod docking station 1 x TV Audio input 1 x DVD Audio input Output................ 1 x S-Video 1 x Video (CVBS) Weight ..................9 .78kg Dimensions......150mm(H) X 1030mm(W) X 128mm(D) Power source ............... A C 120V/60Hz Subwoofer impedance: ..............
